EMW3165 WiFi Module: Features, Specs & Applications

A Wi-Fi module/ WLAN module is important for accessing the internet via a wireless connection.  We’ll explore the features and the typical applications of the EMW3165 Wi-Fi module.

What is an EMW3165?

Fig 1: A Computer Connected to WiFi

It is an embedded, low-cost, small form, low-power Wi-Fi module. Also, the module features a 128Kilo Bytes of RAM, a Cortex-M4 core microcontroller, and a 512KB of chip flash. Furthermore, the module has 2M Bytes of SPI flash/onboard flash.

Besides, the module is rich in various digital and analog peripheral resources and operates as a MiCO platform. Therefore, it allows users to create custom embedded Wi-Fi applications on a MiCO library. It is handy in managing TCP/IP stack processing and  Wi-Fi MAC.

In addition, it has a self-hosted WiFi network library. Finally, the WiFi module sports an independent series of firmware such as Cloud services and Wireless UART.

Module Specifications

Fig 2: A Router for Accessing the Internet

The module measures 32mm by 16mm and has the following properties:

• It requires 3v to 6v operating voltage and features 22 GPIO module pins
• Secondly, it has a JTAG and SWD interface and 0.9 mm pitch pins

Wi-Fi Module

• It supports various protocols, including 802.11 n, 802.11 g, and 802.11 b.
• Also, the module allows Enterprise, WPA/WPA2 PSK, WEP encryptions, and its receiver to have a sensitivity of -87 dBm.
• Further, it enables EasyLink support and thus will connect to a wi-fi network in a single click.
• Lastly, the EMW3162 Wi-Fi module sports an external antenna with an IPEX connector and a Built-in PCB.

STM32F411CE microcontroller

• The STM Cortex-M4 operates at a frequency of 100 MHz and has a 128 KBs of RAM.
• Secondly, it has 2M external flash memory, which operates on an SPI bus

The Main Difference Between EMW3162 and EMW3165

Fig 3: A WiFi Board module

The EMW3162 operates on a 120MHz frequency Cortex-M3 microcontroller. Further, it has a 1Mega Byte of flash and 128Kilo bytes of SRAM. Lastly, it has MxchipWnet embedded Wi-Fi firmware, which opens up an extensive range of peripherals.

Contrastingly, the EMW3165 features an STM32F411CE Cortex-M4 microcontroller operating on a self-hosted” WiFi networking library. Further, its peripherals-rich to enable embedded operations.

The second difference is that the EMW3165 is relatively smaller than the EMW3162.

Hardware Block

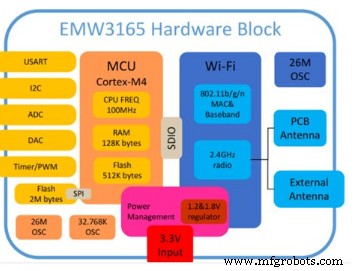

Fig 4: EMW3165 Hardware Block

EMW3165 Applications

The Low-power embedded WIFI module is useful in the following application components:

• Auto electronics and Point of Sale (POS) systems
• Industrial automation systems and the healthcare industry
• Essential in building automation systems and smart home appliances.

Conclusion

Above is a detailed elaboration of the features of the low-power embedded Wi-Fi Module. For additional queries, talk to us, and we’ll gladly help.
