Advanced Satellite Tracker: 3D-Printed Dish Powered by Arduino MKR1000

Necessary tools and machines

3D Printer (generic)

About this project

This is a satellite tracker with a 3D-printed dish based off of a real satellite dish. Here it is in action:

This dish will track any number of satellites in real-time as they fly overhead.

Hardware

The satellite dish and support structure was 3D-printed; the STL files can be found on Thingiverse: https://www.thingiverse.com/thing:4541354

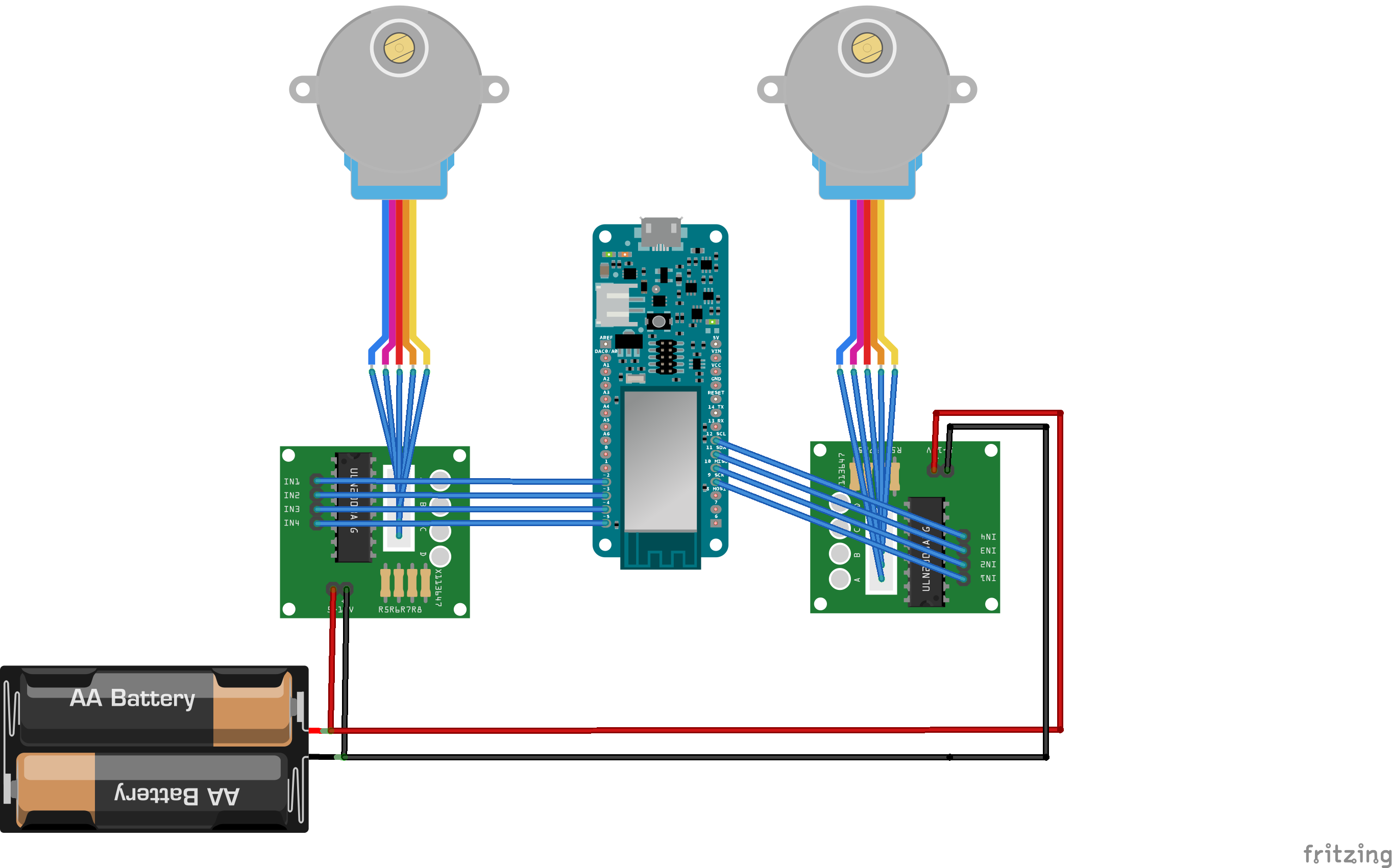

The stepper motors are hookup to the Arduino as follows:

I stripped a USB cable and used the +5 V and GND lines to power the steppers from a mobile battery pack.

Software

The code for the project is on Github: https://github.com/alexchang0229/SatelliteTracker

The orbits of satellites are generally given in two line element (TLE) sets, most satellites are tracked by NORAD and their TLEs can be found on: http://www.celestrak.com.

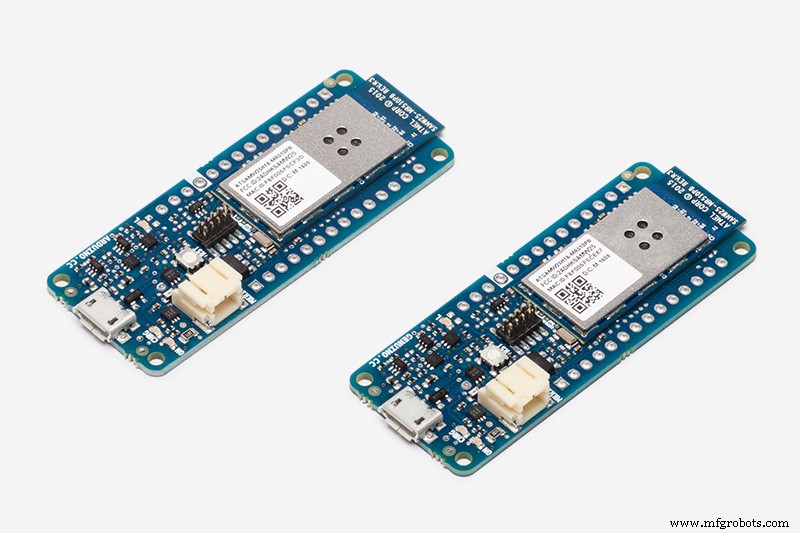

Using a MKR 1000 WiFi board, I grab the latest TLE for the satellites of interest from celestrak; luckily the complicated part of translating from TLE to actual azimuth and elevation is already done in this library: https://github.com/Hopperpop/Sgp4-Library

I also used the RTC zero library to obtain the current time: https://github.com/arduino-libraries/RTCZero

The accelstepper library to control the two stepper motors:

https://www.airspayce.com/mikem/arduino/AccelStepper/

Here's how the code works:

• Connect to internet and get the current epoch time.
• Get satellite TLEs from Celestrak, save it and predict the upcoming passes.
• Put the dish in standby Az = 0 (North), EL = 25
• At 5 mins before pass, move dish to start of pass and wait.
• Track satellite during pass
• Wait at end of pass for 2 mins, predict next pass.
• Go back to standby until next pass

You can use a free version of STK to verify the predictions: https://www.agi.com/products/stk

That's it! Let me know if you tried it and if there's anything that needs clarifying.

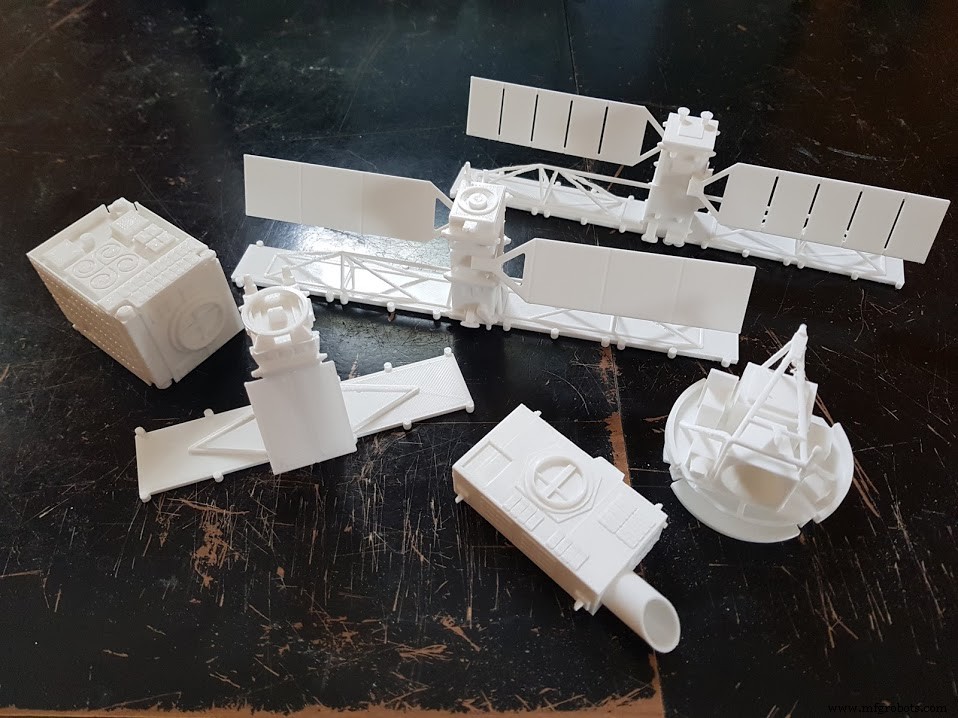

If you'd like to 3D print some satellites to go with the satellite tracker check out my designs on thingiverse: https://www.thingiverse.com/yychang/designs

Code

Code for satellite tracker

Custom parts and enclosures

Satellite tracking antenna model

Schematics
