Arc Flash Protection: Strategies, Myths, and Enclosure Solutions

An arc flash is an explosive release of energy triggered by a phase‑to‑phase or phase‑to‑ground short circuit. During an event, air becomes a conductor, allowing a large current to flow and creating a violent arc fault.

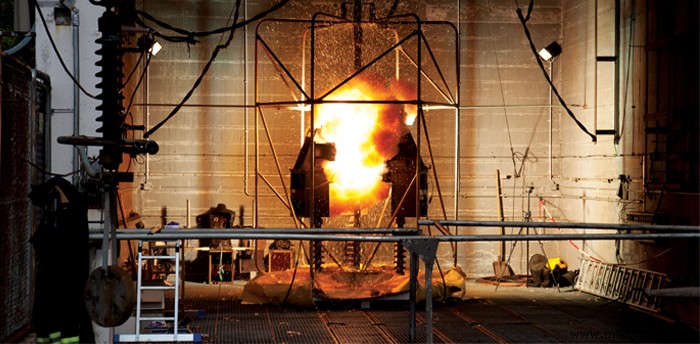

Arc flash events are characterized by extreme heat, intense light, and a powerful pressure blast that can propel shrapnel, tools, and even workers into the air. The injuries sustained are similar to those from an explosion: severe burns, vision and hearing loss, broken bones, and head trauma.

For any installation that incorporates high‑current electrical equipment, arc flash prevention must be integrated into the design phase. It is a critical safety concern that can’t be addressed after the fact.

Common Causes

Human error—such as distractions during work on energized equipment—remains the leading cause of arc flash incidents. Other frequent triggers include:

• Failure to use insulated tools
• Accidental dropping of conductive components onto live circuits (screws, hand tools, etc.)
• Accumulation of dust or metallic debris near energized parts

While most accidents involve high‑voltage equipment (480 VAC and above), arc flash can also occur at lower voltages. Control panels, disconnects, bus switches, motor controls, motor starters, and switchgear are common sites.

Integrating arc‑flash safety into your electrical safety program is essential. The most effective preventive measure is to segregate line‑side voltage within your enclosure system.

Arc Flash Misconceptions

Myth: Arc flash will not occur below 240 V.

Fact: While sustaining an arc flash at lower voltages is more difficult, it can still happen. Protective measures are required at all voltage levels.

Myth: A long accident‑free history reduces future risk.

Fact: Injuries can happen at any time if adequate protection is not in place, regardless of past records.

Myth: OSHA does not enforce NFPA 70E guidelines.

Fact: OSHA now actively monitors compliance. Facilities that fail to protect employees can face fines and penalties. Similar enforcement applies in Canada under CSA standards.

Solutions

Enclosure systems designed to isolate high‑ and low‑voltage equipment provide effective arc‑flash protection. Rittal’s TS8 modular enclosure, for example, can be configured so that high‑voltage line‑side power sits in its own disconnect cabinet, while low‑voltage controls remain in a separate compartment. A 16‑inch‑wide TS8 enclosure, combined with partition walls, keeps the two power domains physically separated, reducing arc‑flash risk.

Rittal also offers accessories that enable workers to collect data, program devices, and monitor systems while the enclosure door remains closed. These include interface ports, access flaps, external data pockets, fold‑up keyboard shelves, dead‑front kits, and viewing windows.

Arc flash incidents happen in an instant, causing severe injury and costly downtime. Ensuring compliance with current electrical safety standards—along with protective clothing and comprehensive training—protects the most valuable asset in any facility: its people.

This is an edited version of information provided by Rittal Corp. For more information, visit www.rittal.us.
