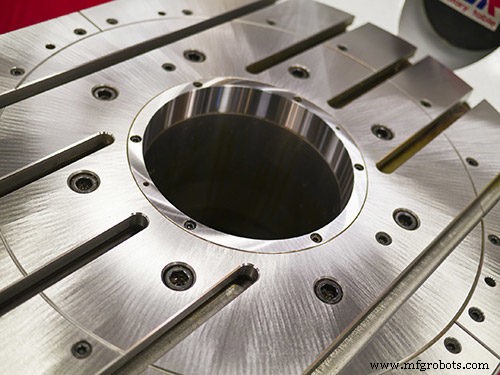

Horizontal Boring Explained: Comprehensive Guide to Precision Hole Drilling

For applications requiring holes drilled in workpieces of various sizes, horizontal boring services may apply. Horizontal boring machines are compatible with many types of workpieces and can efficiently drill into workpieces while achieving tight tolerances.

Horizontal Boring 101

Boring enables operators to further process cast, forged, or drilled holes that exist within a workpiece, enlarging them, improving their dimensional accuracy, or increasing the diameter of the hole. These processes can also increase surface smoothness and ensure the original hole axis’s deviation is correct.

This process relies on horizontal boring machines, which include a column, bed, spindle, saddle, and ram. The machine travels horizontally on the X-axis along the bed. Meanwhile, the saddle travels along the row vertically on the Y-axis. The plunger and boring tool then move inward on the Z-axis and outward on the W-axis. The machine then cuts around a stationary workpiece installed on the front side of the boring machine. This is what makes horizontal boring different from vertical boring, in which the workpiece turns while the tool remains stationary.

Advantages of Horizontal Boring

Horizontal boring manufacturing offers many benefits, such as:

• The Ability to Produce Large-Format Elements: The right horizontal boring equipment works with large workpieces, enabling the production of large-format parts for various industries. This is especially useful for industrial and agricultural applications.

• The Ability to Produce Large Numbers of Parts: Due to their ability to make multiple cuts simultaneously and their high speed of cutting, horizontal boring machining can produce many parts for applications requiring a high volume of components quickly.

• Minimized Tool Deflection: If a tool faces more resistance than it can handle, deflection may occur. As a result, the tool may initiate an improper drilling angle due to the application of excessive force. However, horizontal boring machines help prevent this because they maintain a closer distance between the drill and the anchor point during drilling.

• The Ability to Apply CNC Boring Technology: Computer numerical control (CNC) is a type of technology that controls certain machining tools through software programming. This enables operators to enter specific commands that machines must follow, including horizontal boring machines. These CNC machines help maximize precision while minimizing the risk for human error during the boring process.

Horizontal Boring Services from Technox

At Technox Machine & Manufacturing Inc., we provide reliable horizontal boring services to help ensure accurate, high-quality, and timely component orders. We perform these services with some of the best horizontal boring equipment, including machines with a maximum of 120″ x 152″ x 70″ work envelope, along with a five-axis capacity. These capabilities enable us to machine some of the most complex parts at consistently fast speeds. At the same time, we can maintain precision with tolerances of ± 0.0005″.

We have the equipment and skills required to complete many machining processes and work with a wide variety of materials, including engineering plastics, high-performance alloys, and standard metals.

Contact Our Experts for Premium Horizontal Boring Solutions

If you require horizontal boring services, turn to the professionals at Technox. We’ve provided premier horizontal boring services and more to customers since 1976. With customers across a wide range of industries, including steel mills, fluid power, oil and gas, and equipment, we have a reputation for delivering quality products.

For more information about our services, contact us today or get started on your next project when you request a free quote.
