Altium CircuitStudio: Designer‑Level PCB Design at a Fraction of the Cost

When I downloaded a trial of Altium CircuitStudio last December, I expected the usual performance hiccups and a steep learning curve. Instead, I found a surprisingly robust, feature‑rich tool that rivals its flagship, Altium Designer, but at a fraction of the price.

For occasional use, CircuitStudio offers the same core capabilities as Designer—slicing, routing, and component placement—while omitting the heavy database library functions. A perpetual license for $1,000 includes a year of updates, free access to the Altium Vault, and the ability to edit Designer schematics (though Designer PCBs cannot be opened directly in CircuitStudio). Maintenance is $150 annually for continued updates and Vault access.

Although it lacks some Designer‑specific tools—such as the parametric editor and bulk library creation—CircuitStudio compensates with a highly intuitive ribbon interface, a powerful command‑line‑style search bar, and extensive schematic editing features. I could assemble clean, flexible schematics, embed images, adjust fonts and pin labels, and save them as a library with a single cut‑and‑paste operation.

The real advantage lies in the integrated 3D PCB viewer. What once seemed a flashy gimmick in 2007 turned out to be a practical safety net. A Texas Instruments engineer once told me he avoided a costly board spin by spotting a trace violation in 3D. My own experience confirmed that 3D inspection can catch errors invisible in 2‑D views—such as unrefreshed copper pours or holes intersecting traces—before a prototype is fabricated.

Figure 1 The ultrasonic cleaner driver board I designed in CircuitStudio, displayed in full 3‑D with texture overlays for real components and custom STEP parts imported from SOLIDWORKS and TurboCAD.

To truly test CircuitStudio, I reverse‑engineered a failing ultrasonic cleaner driver board (Figure 2). After replacing the power FETs, the device still failed. Using CircuitStudio’s schematic capture, I imported a photo of the PCB, mapped every component, and re‑arranged the netlist into a logical schematic (Figure 3). The result was a clean, editable representation that highlighted missing pins, removed unused connections, and streamlined the design.

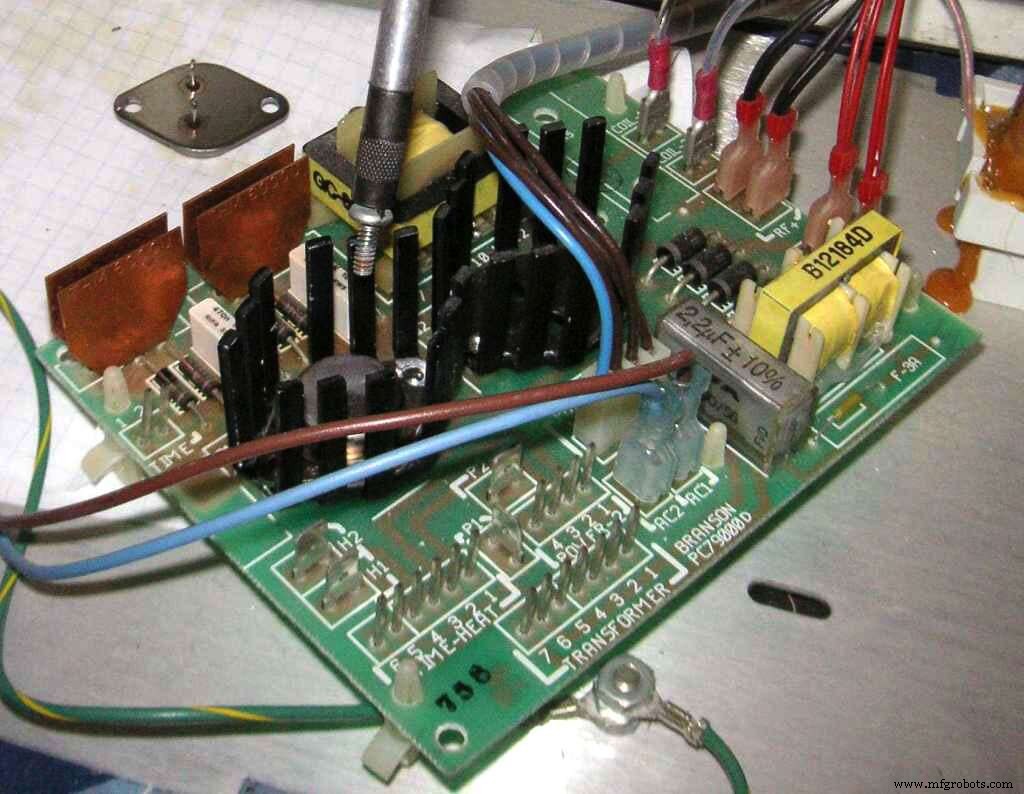

Figure 2 The original single‑sided board, overlaid with a photo for schematic tracing.

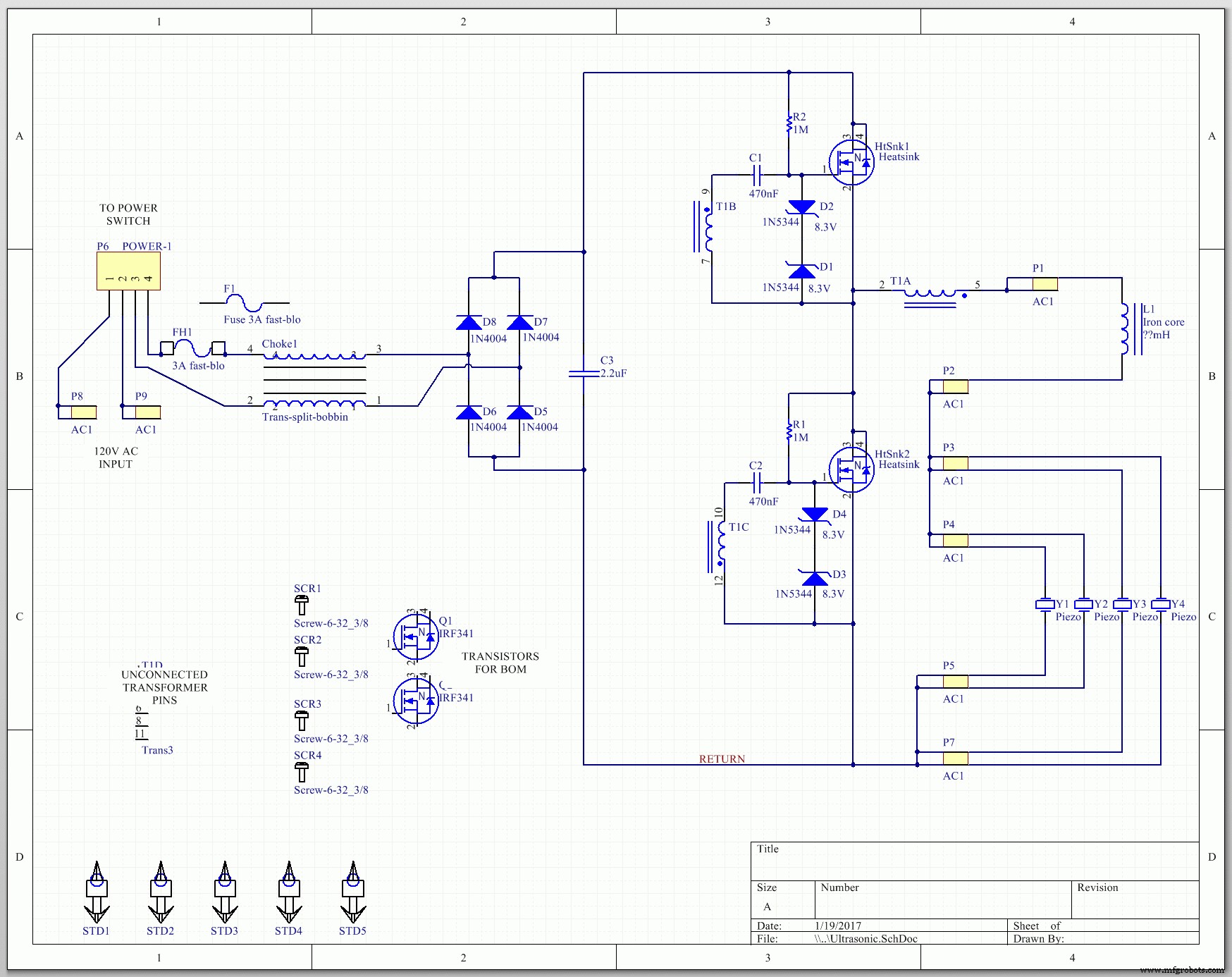

Figure 3 The reconstructed schematic, ready for troubleshooting and future redesigns.

In sum, CircuitStudio delivers Designer‑level functionality—except for a few niche features—at a price point that makes it an attractive option for hobbyists, students, and even small engineering shops. Its robust 3‑D viewing, intuitive interface, and strong library support combine to make PCB design faster, more accurate, and ultimately more cost‑effective.
