Accelerating IoT Innovation with Smart Development Boards

Accelerating IoT Innovation with Smart Development Boards

The journey from concept to market‑ready IoT product is increasingly powered by smart boards—compact, cost‑effective platforms that embed communication, sensing, and processing capabilities.

The IoT Landscape

IoT is now a ubiquitous part of daily life, from personal wearables to industrial automation. The rapid evolution of sensors, communication protocols, and machine‑learning algorithms is pushing companies to innovate faster than ever. Accessible hardware and software tools are essential to translate these capabilities into tangible products.

Smart Boards at a Glance

Whether based on microcontrollers, SoCs, or single‑board computers, smart boards provide a turnkey solution for prototyping and eventual mass production. The market features offerings from electronics giants, startups, and crowdfunding‑backed projects, all converging on a few key technologies.

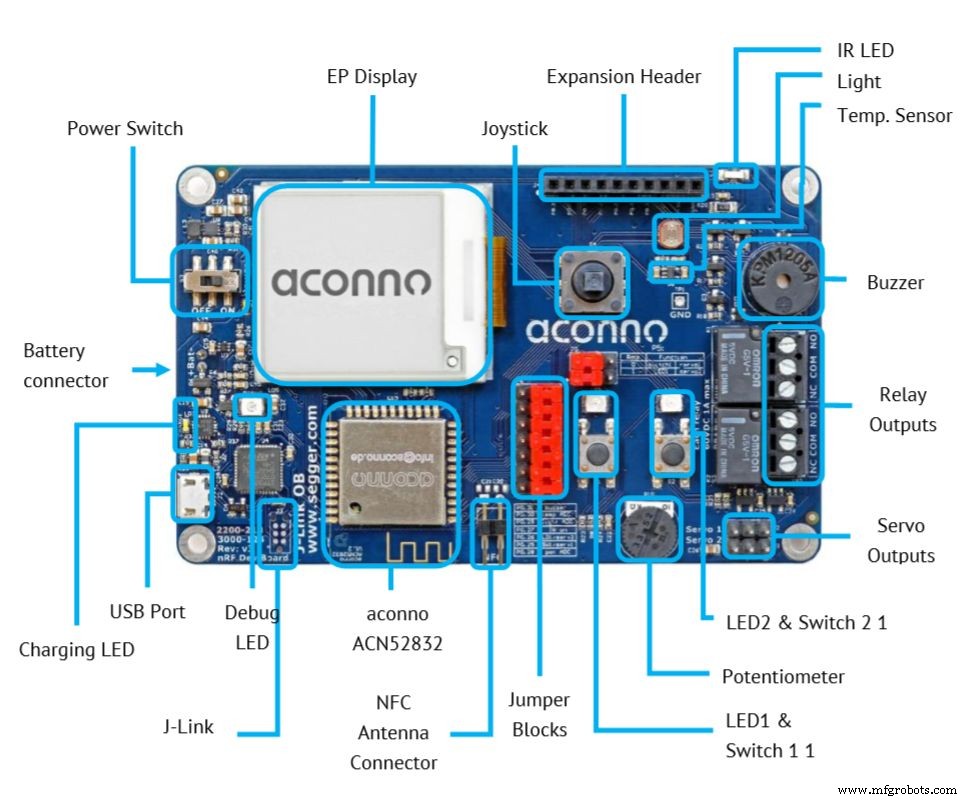

Aconno’s ACD52832

The ACD52832 is a low‑power, high‑performance board built around a 32‑bit Arm Cortex‑M4F core running at 64 MHz. It integrates a full suite of sensors—light, temperature, sound, motion, vibration—as well as LEDs, buttons, relays, a buzzer, servo connectors, and an NFC adapter. The core is Nordic’s nRF52 SoC, which cleanly separates application code from SoftDevice protocol stacks and offers an NFC‑A tag for simple pairing.

Its 200 × 200 e‑paper display (184 dpi) consumes virtually no power when static, making it ideal for battery‑operated devices that need to be readable in direct sunlight. “E‑paper is crucial because it’s ultra‑low‑power,” explains Thomas Hollwedel, Aconno’s marketing and sales leader. “Our board can run on battery for extended periods while delivering solid performance.”

Developers can prototype rapidly with mbed or Keil uVision. The board’s Nordic nRF52 SoC features a 64‑MHz floating‑point CPU, NFC‑A, and a flexible software architecture that eases the transition from prototype to production.

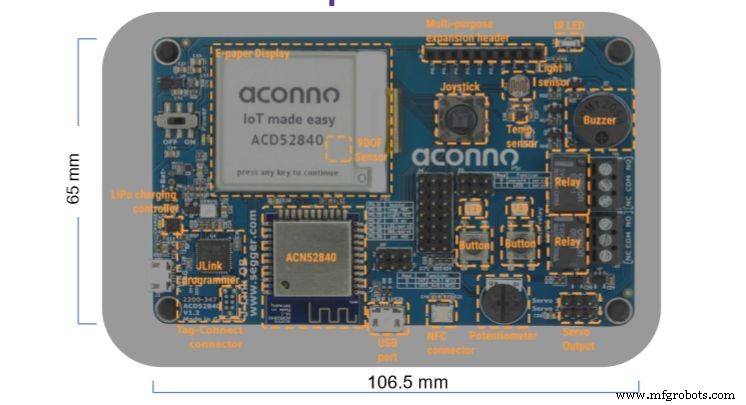

Aconno’s ACD52840 – Bluetooth 5, Long‑Range

The ACD52840 upgrades the core to the nRF52840 SoC, adding Bluetooth 5 support, Thread, Zigbee, and Adaptive Network Topology. In free‑field tests, it achieved over 1,300 m (1.3 km) range—an 8 dB improvement over the 52832. The board still includes the e‑paper display, NFC, and the same rich sensor set.

Bluetooth 5’s higher range, speed, and bandwidth allow simultaneous broadcasting to multiple devices, enabling seamless connectivity as users move from home to car, for example. According to the Bluetooth SIG, over one‑third of all IoT devices will adopt Bluetooth 5 in the coming years.

Industry Leaders Beyond Aconno

Other vendors continue to push the envelope:

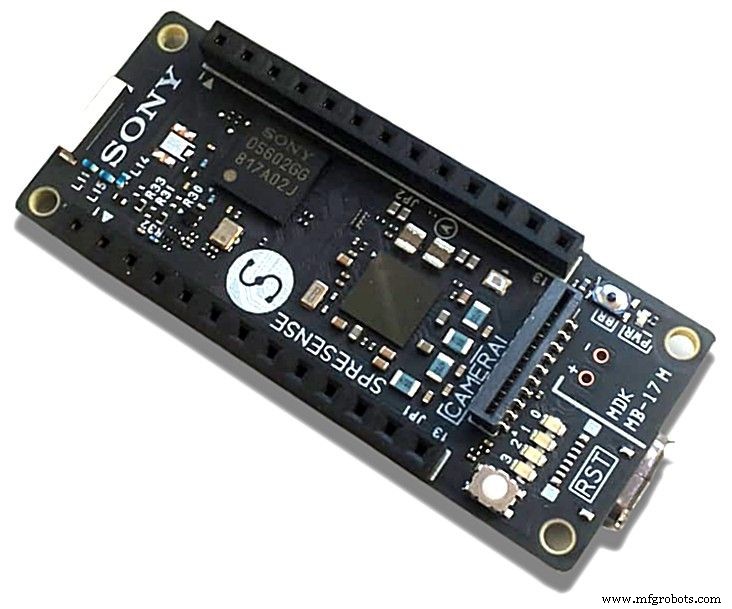

• Sony Spresense Main Board – a compact board powered by the CXD5602 multicore MCU, supporting Arduino and Eclipse IDEs, GPS, a GUI, and expansion for Bluetooth, Wi‑Fi, and cameras.
• Cypress PSoC 6 BLE Pioneer Kit (CY8CKIT‑062‑BLE) – a turnkey environment with integrated flash, secure storage, Bluetooth 5, and USB‑C power delivery.
• Arduino, Raspberry Pi, BeagleBone – enduring favorites that cover a spectrum from microcontroller‑level to full‑stack computing.

Each kit bundles hardware, firmware, and software tools, giving engineers the means to accelerate time‑to‑market while maintaining quality and reliability.

Choosing the right development board depends on your application’s power budget, connectivity requirements, and sensor needs. Smart boards like the ACD52832/40 set the stage for rapid, low‑cost prototyping and seamless scaling to production.
