Accelerate Modbus Device Integration with an Open‑Source IIoT Edge Gateway

Industrial Internet of Things (IIoT) applications routinely rely on an edge gateway to bridge Modbus peripherals and other devices. Building a custom gateway can be costly and time‑consuming. An open‑source edge computing framework dramatically simplifies deployment and reduces costs.

IIoT connects sensors, actuators, and industrial infrastructure—spanning manufacturing, transportation, energy, retail, healthcare, and supply‑chain management. The resulting connectivity enables real‑time data collection, exchange, and analytics, unlocking productivity gains and economic benefits.

Edge computing addresses the latency demands of these use cases by processing data locally rather than sending everything to a central data center.

When dozens of sensors must be linked to an edge gateway, architects face critical decisions about software design, data processing, and analytics. Without an open‑source framework, each new development cycle can drain resources. EdgeX Foundry provides a ready‑made micro‑services stack that cuts development time, lowers latency, and keeps costs under control. Because Modbus—a widely adopted industrial protocol—needs robust gateway support, EdgeX is an ideal foundation.

This two‑part series explores EdgeX‑based edge‑gateway design and application development. The first article focuses on industrial sensors, use cases, and how EdgeX satisfies gateway requirements.

Industrial Sensors Overview

In automation, sensors and actuators are the heartbeat of any system. Sensors detect environmental changes; actuators execute actions based on those detections.

Typical industrial sensors include temperature, humidity, pressure, proximity, and gas or chemical detectors. Key use cases:

• Temperature sensors preserve the integrity of biological samples. Hospitals and labs install continuous monitoring to safeguard patient outcomes.
• Humidity‑sensitive products require climate‑controlled warehouses. Sensors provide real‑time alerts to prevent corrosion.
• Pressure sensors track fluid levels and flow rates. For example, a water‑level sensor in a tank can continuously log changes via a Modbus interface.

In many factories, devices communicate through proprietary or open protocols. Modbus remains the industry standard for SCADA and PLC integration due to its vendor‑agnostic design, extensive community support, and compatibility with serial and Ethernet media (Modbus RTU, ASCII, TCP, Plus). Its ability to coexist with other protocols on a single network further drives adoption.

Edge Gateway Overview

Device Connectivity

An edge gateway must support common industrial protocols—ZigBee, Bluetooth LE, BACnet, Modbus, Siemens S7—to connect diverse sensors and actuators.

Data Analytics & Rules Engine

Local processing allows the gateway to run AI/ML workloads, trigger real‑time actions, and forward only essential data to the cloud. Rule engines are essential for automated decision making.

Data Storage

Local persistence—via Redis or similar—ensures the gateway can operate autonomously, even during network outages.

Inter‑operability

Edge solutions should expose standard interfaces (MQTT, REST) so that devices and applications can interoperate seamlessly.

Security

Robust authentication, encryption, certificate management, and fine‑grained access control protect data and devices across the edge stack.

Device Management

Remote administration—start, stop, configure, and update—enables operators to maintain a fleet of gateways efficiently.

Cloud Connectivity

Bidirectional sync with cloud platforms (AWS, Azure, IBM Watson) facilitates advanced analytics and long‑term storage.

Portability

Cross‑platform support (Windows, macOS, Linux) prevents vendor lock‑in and accelerates deployment.

EdgeX Foundry

Why an Open‑Source Platform?

Building a proprietary edge framework demands exhaustive design, coding, and testing—an expensive proposition. EdgeX Foundry delivers a modular, micro‑service architecture that lets developers deploy only the components they need. The result: faster time‑to‑market, lower total cost of ownership, and a vibrant community that continuously refines the platform.

Launched by the Linux Foundation, EdgeX Foundry is an open, interoperable edge platform. Its layered design—core, service, and application—enables easy scaling, updates, and distribution across diverse systems.

EdgeX is fully compatible with Windows, macOS, and Linux, making it accessible to a wide developer audience.

Products such as EdgeXpert, EdgeXRT, HP Engage Edge, EdgeBox, and Dell gateways already leverage EdgeX, underscoring its proven reliability.

How EdgeX Meets Edge‑Gateway Needs

EdgeX serves as middleware between physical “things” and enterprise IT, fulfilling every gateway requirement outlined above.

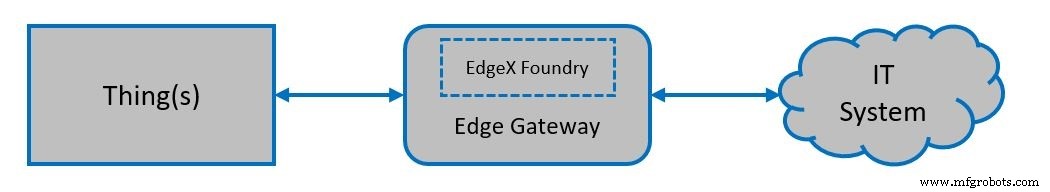

Figure 1. EdgeX Foundry (Source: www.edgexfoundry.org)

Data Storage – Redis

EdgeX ships with Redis as its default datastore. Redis offers in‑memory storage with optional persistence (RDB, AOF), ideal for edge scenarios where devices may intermittently disconnect.

Data Analytics – Kuiper Rules Engine

EdgeX integrates EMQ X Kuiper, a lightweight stream‑processing engine that runs on resource‑constrained devices. Kuiper’s rule syntax follows a Source‑SQL‑Sink model:

• Source: Streaming data from MQTT brokers.
• SQL: Declarative statements to filter, transform, and enrich data.
• Sink: Destination for results (MQTT, HTTP REST).

Typical workflow:

1. Create a stream and specify its source.
2. Write a SQL rule for processing.
3. Define a sink target.
4. Deploy and run the rule.

Device Connectivity – Device Services

The Device Services layer translates data from hundreds of protocols into EdgeX’s native format. Key functions include status polling, data transformation, configuration updates, and device discovery.

Inter‑operability – MQTT & REST

EdgeX’s lightweight MQTT broker and REST API provide simple, low‑bandwidth channels for device communication and third‑party integration.

Security – Security Store & API Gateway

EdgeX’s Security Store securely holds secrets, while the API Gateway enforces access control and serves as a reverse proxy for REST endpoints.

Device Management – APIs

Health checks and metadata queries are exposed through dedicated Device Management APIs.

Cloud Connectivity

EdgeX supports native connectors for AWS, Azure, and IBM Watson. Two integration models are available:

1. Application Services: Pre‑compiled services that publish data events to cloud endpoints.
2. Configurable Application Services: SDK‑based services that can be tailored via configuration without recompilation.

The next article will present a case study on connecting an industrial sensor to EdgeX, demonstrating real‑world edge computing capabilities.
