Vision‑Based Driver Monitoring Systems Drive Safety Innovation

Vision‑based driver monitoring systems (DMS) are moving from niche to mainstream, reshaping automotive safety and compliance across the globe. Recent market reports and industry events underscore the technology’s growing relevance, especially among U.S. OEMs and consumers who once viewed DMS as optional.

Market Evolution

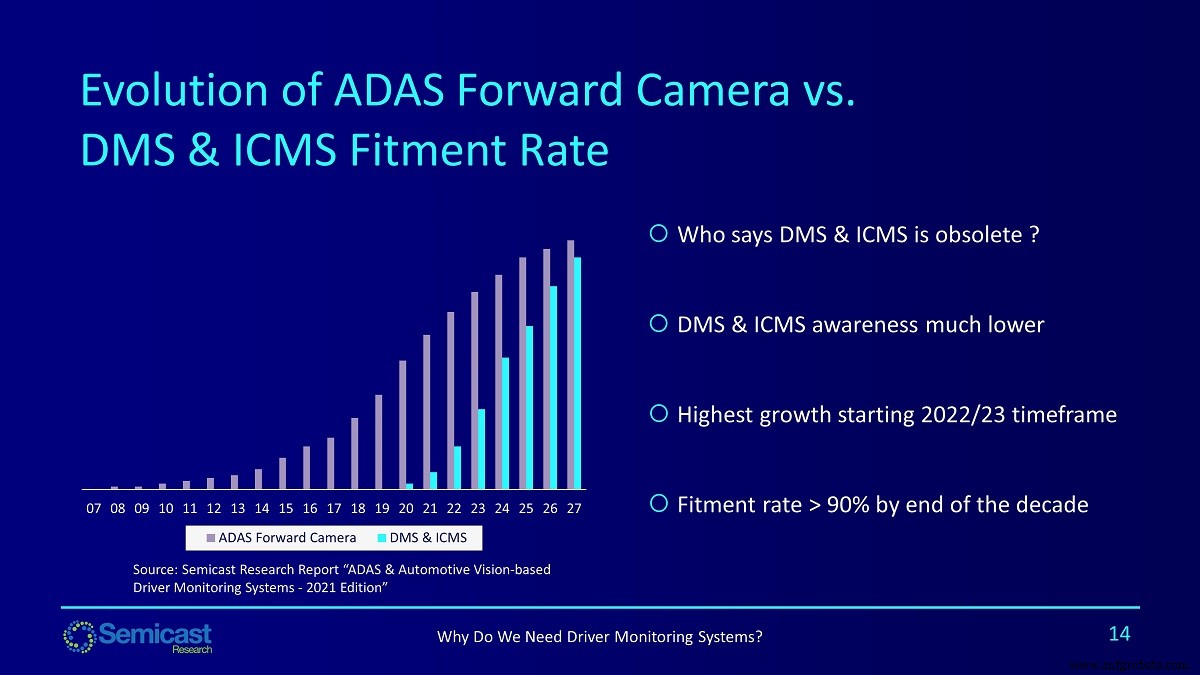

At the EE Times “Roadmap to the Next‑Gen EV & AV” keynote, I highlighted how the ADAS forward‑camera segment has evolved. Mobileye, now the dominant player with roughly 60% market share, was acquired by Intel in 2017 for $15.3 billion. Yet the industry’s roots lie in the decade before that acquisition, when OEM relationships were already forming.

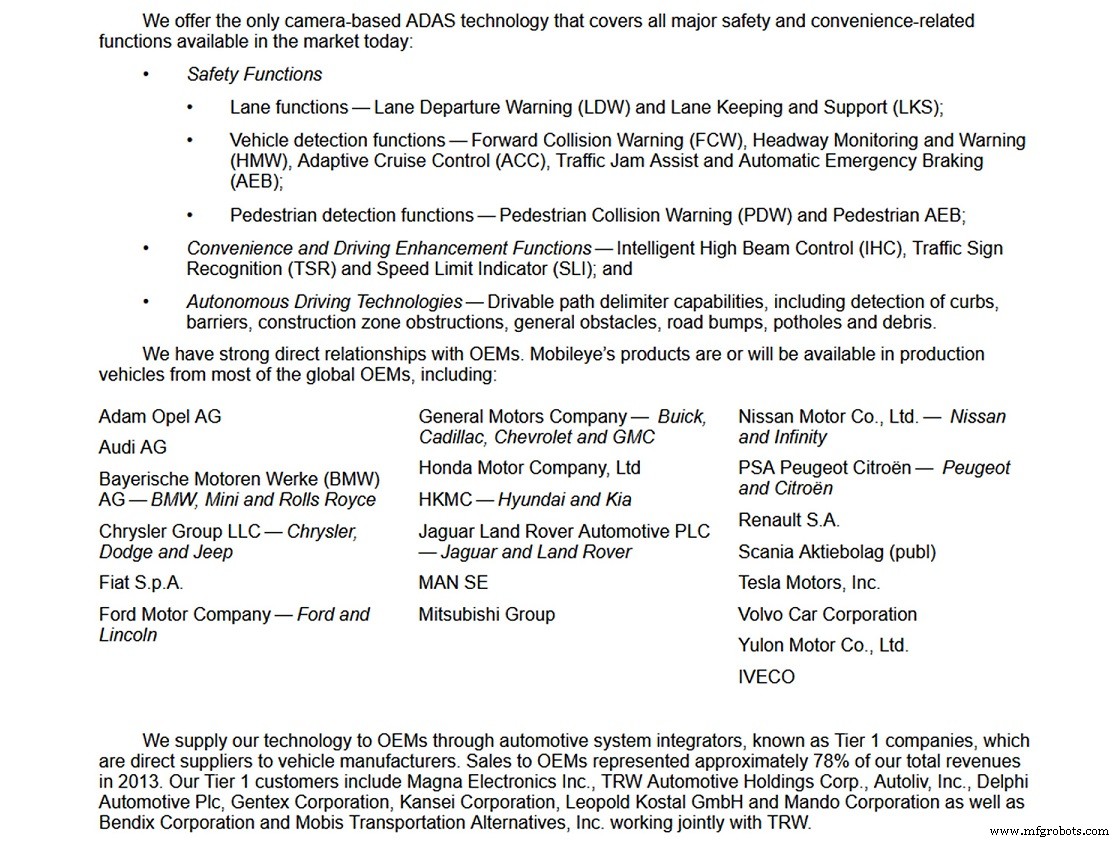

Mobileye’s 2014 SEC Form F‑1 reveals extensive OEM and tier‑one partnerships, with Magna cited first in its supplier list—demonstrating Magna’s early recognition of ADAS camera opportunities and its engineering collaboration with Mobileye.

Magna’s OMS Mirror Breakthrough

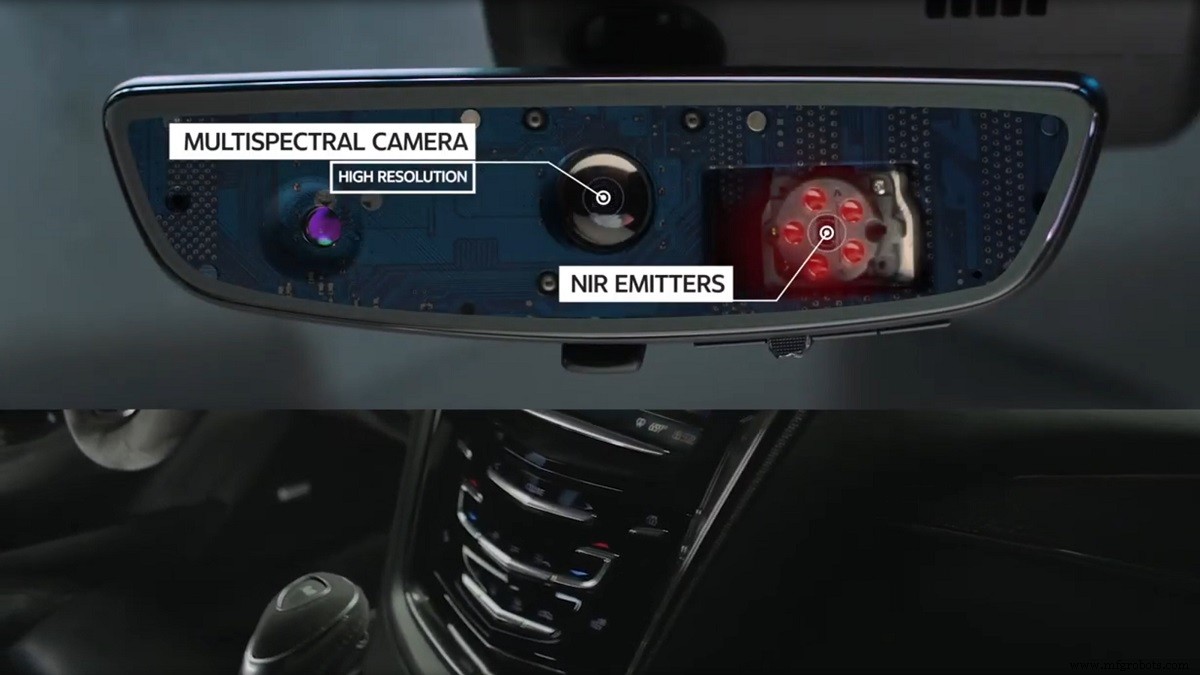

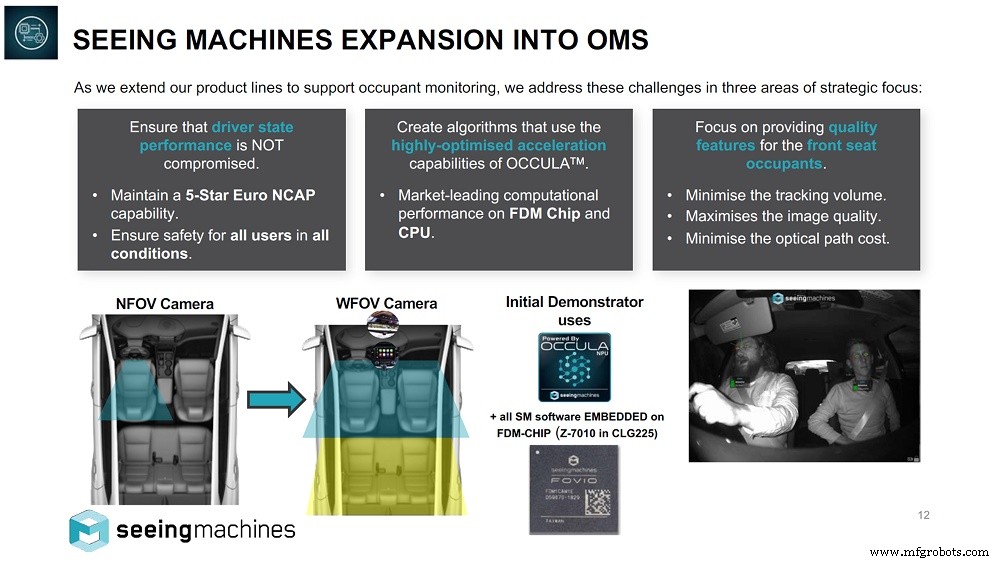

Seeing Machines’ slide illustrates the shift from driver monitoring (NFOV) to occupant monitoring (OMS) using wide‑field‑of‑view sensors. While several tier‑one suppliers already offered DMS, Magna is poised to lead in OMS by integrating optics, electronics, and infrared illumination directly into the interior mirror.

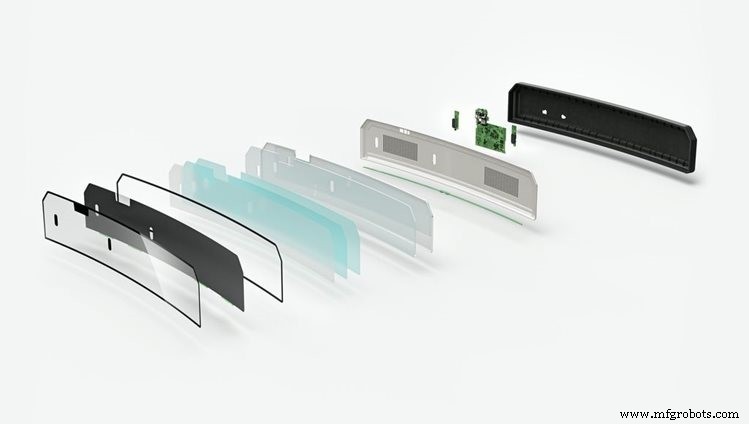

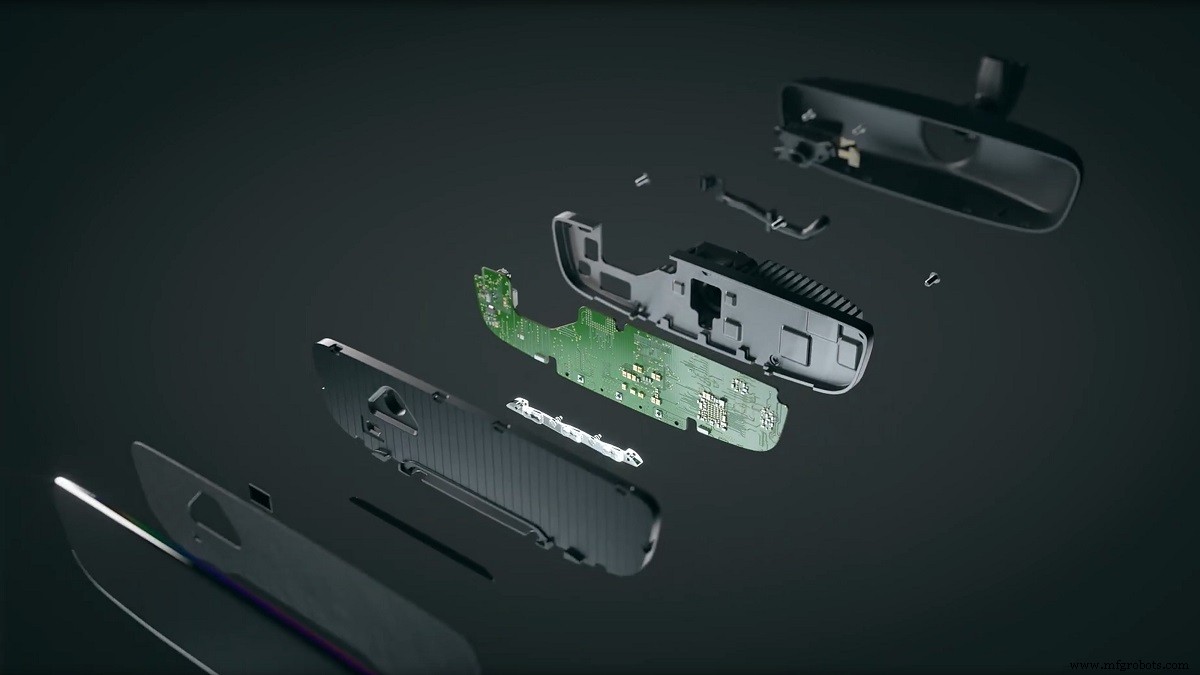

A disassembled Magna mirror demonstrates a CMOS sensor, PCB, IR LEDs, and image processor—all within a single unit, and notably without a fan. This integration delivers a compact, low‑power solution ideal for mass‑market vehicles.

Other tier‑ones—Continental’s ICAM and Gentex’s sensing mirror—have shown similar concepts, but Magna’s system‑level approach gives it a first‑mover advantage for OEMs seeking a turnkey OMS solution.

Although technical specifications are not yet public, it is likely that Magna will combine an OmniVision CMOS sensor (e.g., OV2311), a Xilinx FPGA (Zynq‑7000 or UltraScale+ MPSoC), and Seeing Machines’ occupant‑monitoring software.

Tesla’s OMS Experiment

Tesla is repurposing the interior camera used in the Model 3 and Model Y for driver and occupant monitoring. Early prototype videos reveal a noisy driver‑state classifier and susceptibility to spoofing with a photograph, primarily because the system lacks IR illumination and cannot operate in low‑light conditions.

Consumer Reports demonstrated how easily Tesla’s torque‑based driver monitor can be defeated, underscoring the need for robust, IR‑based solutions. As safety regulations tighten—Euro NCAP will add DMS/OMS testing to its 5‑star rating in 2023/24—OEMs will increasingly partner with tier‑one suppliers like Magna and software providers such as Seeing Machines.

Industry Outlook

Regulatory bodies (Euro NCAP, European General Safety Regulation) and OEM safety mandates are accelerating DMS/OMS adoption, even in low‑cost models and vehicles equipped with hands‑free driving functions (e.g., GM’s SuperCruise, Ford’s BlueCruise). The interior mirror offers the most efficient, cost‑effective placement for IR components, reducing integration complexity and vehicle weight.

With these developments, the adoption of reliable driver and occupant monitoring is no longer optional—it is becoming the baseline for modern automotive safety.

Author

Colin Barnden, Principal Analyst at Semicast Research, brings 25+ years of automotive electronics expertise. He holds a B.Eng. (Hons) in Electrical & Electronic Engineering from Aston University and has led market analyses since 1999.
