Welding Titanium Alloys to Stainless Steel: Challenges and Best Practices

Welding Titanium Alloys to Stainless Steel: Challenges and Best Practices

Titanium and its alloys are prized in aerospace, petrochemical, and medical fields for their high specific strength, elevated melting point, toughness, and corrosion resistance. Yet, their low elastic modulus and difficult weldability inflate costs, limiting broader use. Stainless steel, in contrast, offers high strength, affordability, excellent corrosion resistance, and superior weldability, making it an attractive partner for composite components.

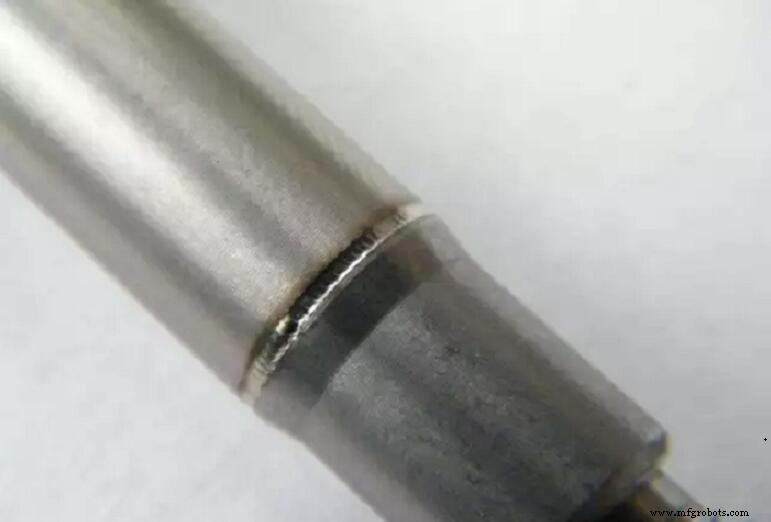

Welding Titanium Alloys to Stainless Steel

Combining titanium alloys with stainless steel can deliver the best attributes of both materials while cutting production expenses. However, dissimilar‑metal welding introduces several technical hurdles that must be carefully addressed.

Key Welding Considerations for Titanium and Its Alloys

Titanium’s high chemical reactivity means it readily reacts with hydrogen, oxygen, CO₂, and water vapor at elevated temperatures. These reactions lower plasticity and impact toughness, creating porosity near the fusion line and potential cold cracking. Its high melting point, low heat capacity, and poor thermal conductivity further aggravate overheating, leading to coarse grain growth.

With an elastic modulus roughly half that of steel, titanium exhibits significant residual distortion post‑weld, complicating dimensional control.

Stainless Steel Welding Fundamentals

Martensitic grades such as 420 Cr steel suffer from low‑temperature brittleness and reduced ductility when hardened. Ferritic 430 Cr steel can develop embrittlement when heated above ~475 °C, and long exposure to 700–800 °C can degrade corrosion resistance and trigger delayed cracking. Austenitic 304 Cr‑Ni steel generally welds well, but high‑nickel or molybdenum content can induce high‑temperature cracking, σ‑phase embrittlement, or stress corrosion.

Duplex stainless steels combine austenitic and ferritic characteristics, offering robust weldability with lower susceptibility to hot cracking. Nonetheless, an elevated ferrite fraction in the heat‑affected zone may diminish corrosion resistance and low‑temperature toughness.

Strategies for Dissimilar‑Metal Welding of Titanium Alloys and Stainless Steel

Current techniques include laser beam, plasma, electron beam, explosive, friction, and diffusion welding. The ~140 °C difference in melting points between titanium (~1,668 °C) and iron (~1,538 °C) presents a key challenge: the stainless steel melts while titanium remains solid, leading to molten steel penetrating titanium grain boundaries, causing material loss, alloy element evaporation, and poor fusion.

Titanium’s reactivity with Fe, Cr, Ni, and other stainless steel constituents forms brittle intermetallic phases and generates substantial internal stresses, precipitating cracks at the joint.

Despite these obstacles, successful tungsten, molybdenum, and titanium–stainless steel interfaces have been reported in aerospace and chemical‑plant applications, demonstrating the economic potential of mastering this welding challenge.

Conclusion

Understanding the unique metallurgical interactions between titanium alloys and stainless steels is essential for producing reliable, high‑performance composite structures. For deeper technical insights and access to high‑quality titanium alloys, visit Advanced Refractory Metals (ARM), headquartered in Lake Forest, California. ARM supplies a broad portfolio of refractory metals—including titanium, tungsten, molybdenum, tantalum, rhenium, and zirconium—at competitive prices.
