Metal 3D Printing Fundamentals: Powder Media and High‑Energy Processes

Metal 3D printing has matured rapidly, moving beyond initial hype to become a scalable, reliable production method. Its ability to produce strong, complex parts now supports diverse industrial applications.

All metal additive manufacturing techniques rely on powder‑based feedstock and a high‑energy step—whether during build or post‑processing—to transform powder into dense metal.

This article delves into the critical roles of powder feedstock and high‑energy processes in metal 3D printing.

Powder Metal Media

Metal 3D printing feedstock typically contains metal powder, either as a raw powder or within a binder. While a few technologies use wire feedstock, powder remains the dominant form.

Why do metal 3D printers prefer powder? Additive manufacturing requires precise deposition of material. Plastic filaments can be heated and extruded through a nozzle, but most metals have melting points above 1,100 °C, making extrusion impractical. Few materials can survive prolonged contact with molten metal, which would make equipment difficult to manufacture.

Wire‑fed metal printers rely on electric‑arc welding to fuse parts, producing surfaces that often require machining and introducing internal stresses that lead to warping.

Powder‑based processes protect printer components from molten metal. The printer delivers highly localized energy with a laser, or it uses a low‑energy build followed by a high‑energy sintering step in a furnace.

Sintering gradually raises the temperature to vaporize any remaining binder. As the temperature approaches the metal’s melting point, particles fuse into a dense, robust part.

Loose vs. bound powder. Loose powder is common in industrial metal 3D printing but poses safety risks—high flammability and respiratory hazards—requiring controlled environments and PPE. Bound powder, used in metal FFF, is safer and less flammable, eliminating the need for specialized PPE or rooms. However, bound powder necessitates additional steps to remove binder and sinter the part.

High Energy Events

In metal additive manufacturing, printers alter the chemical phase of the feedstock. While plastics melt between 200 °C and 400 °C, metals require 1,100 °C to 1,400 °C. Consequently, every metal 3D printing process incorporates a high‑energy step.

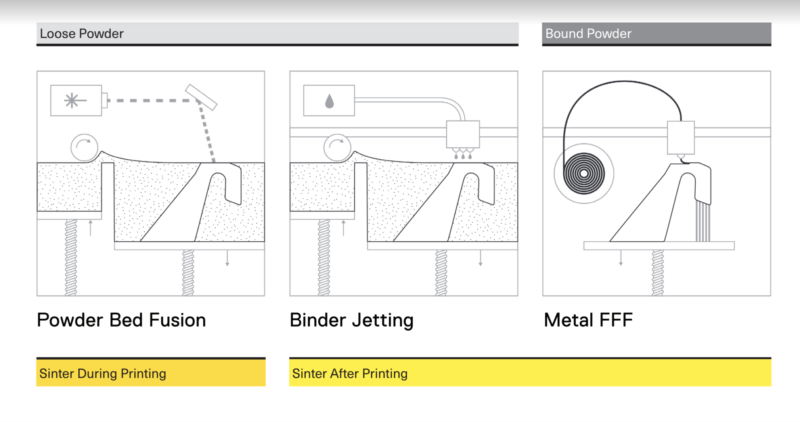

The timing and application of this high‑energy step vary by technology:

During build—localized fusion. Some processes use a laser or electron beam to melt metal layers in situ. This precise, isolated energy delivery produces internal stresses that typically need post‑print heat treatment.

After build—furnace sintering. Other systems build the part with low‑energy input and then subject it to a high‑energy furnace to fuse the powder. This approach reduces internal stresses but adds an extra sintering step.
