Essential Boolean Simplification Rules for Logic Circuit Design

Boolean algebra is indispensable for optimizing logic circuits. By converting a circuit’s behavior into a symbolic expression and applying algebraic identities, we can reduce the number of terms and operations. The resulting simplified expression can be re‑translated into hardware, yielding fewer components, lower cost, and higher reliability.

Below are the key Boolean identities that are unique to digital logic and that form the foundation of expression reduction. The explanations include symbolic proofs and practical examples to illustrate how each rule can be applied.

1. A + 1 = 1 – This identity states that any Boolean variable ORed with logical true equals true. It is universally applicable: the “A” in the rule can represent any single variable or a composite term. For example, ABC + 1 = 1 because the entire product ABC is treated as the “A” in the identity.

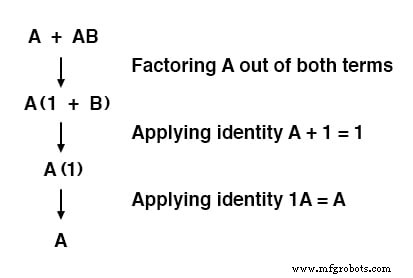

Proof: Factor A out of the two terms, then apply A + 1 = 1 and 1A = A to arrive at the simplified result.

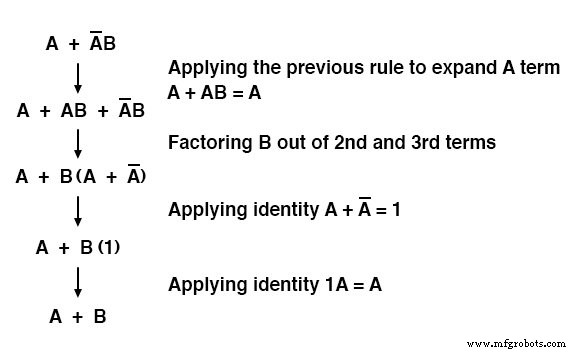

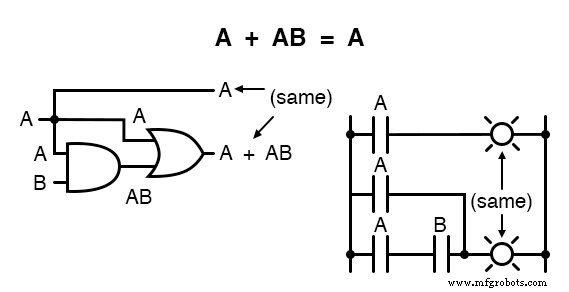

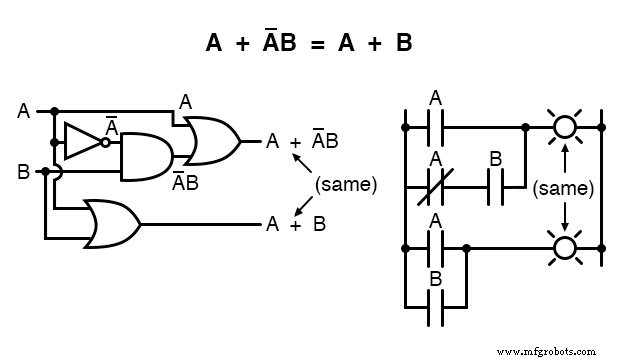

2. A + AB = A – This identity appears counterintuitive because it introduces a seemingly larger term, but it actually removes redundancy. By “unsimplifying” the first A into A + AB, the expression can be collapsed further.

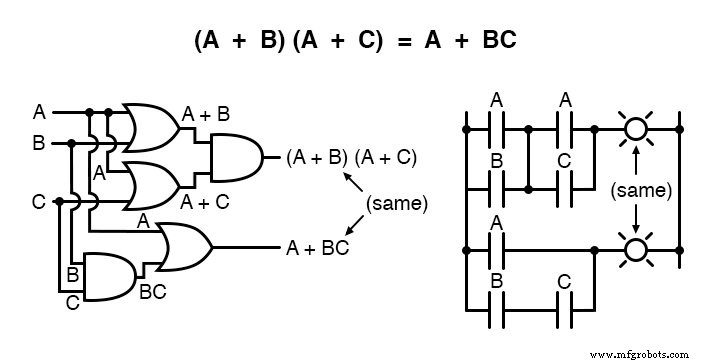

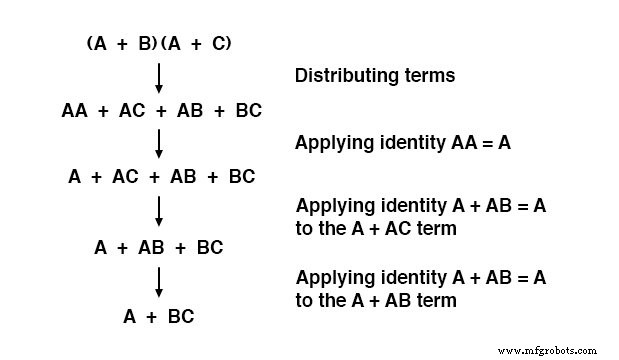

3. (A + B)(A + C) = A + BC – This product‑of‑sums rule is especially useful when simplifying complex NAND/NOR structures.

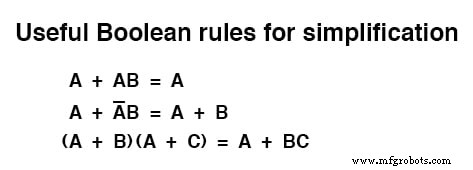

In summary, the three core Boolean simplification rules are:
