Build a Go Away Robot – Easy Arduino Starter Kit for Kids

Components and supplies

Arduino UNO

Solderless Breadboard Half Size

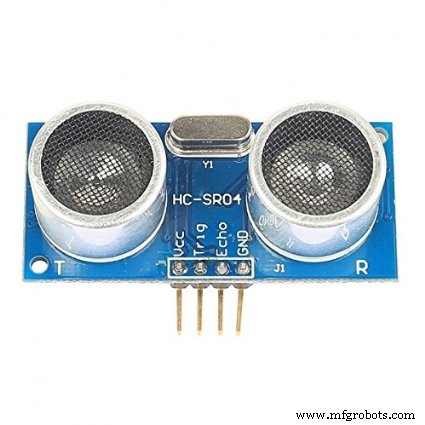

Ultrasonic Sensor - HC-SR04 (Generic)

Buzzer, Piezo

5 mm LED: Green

About this project

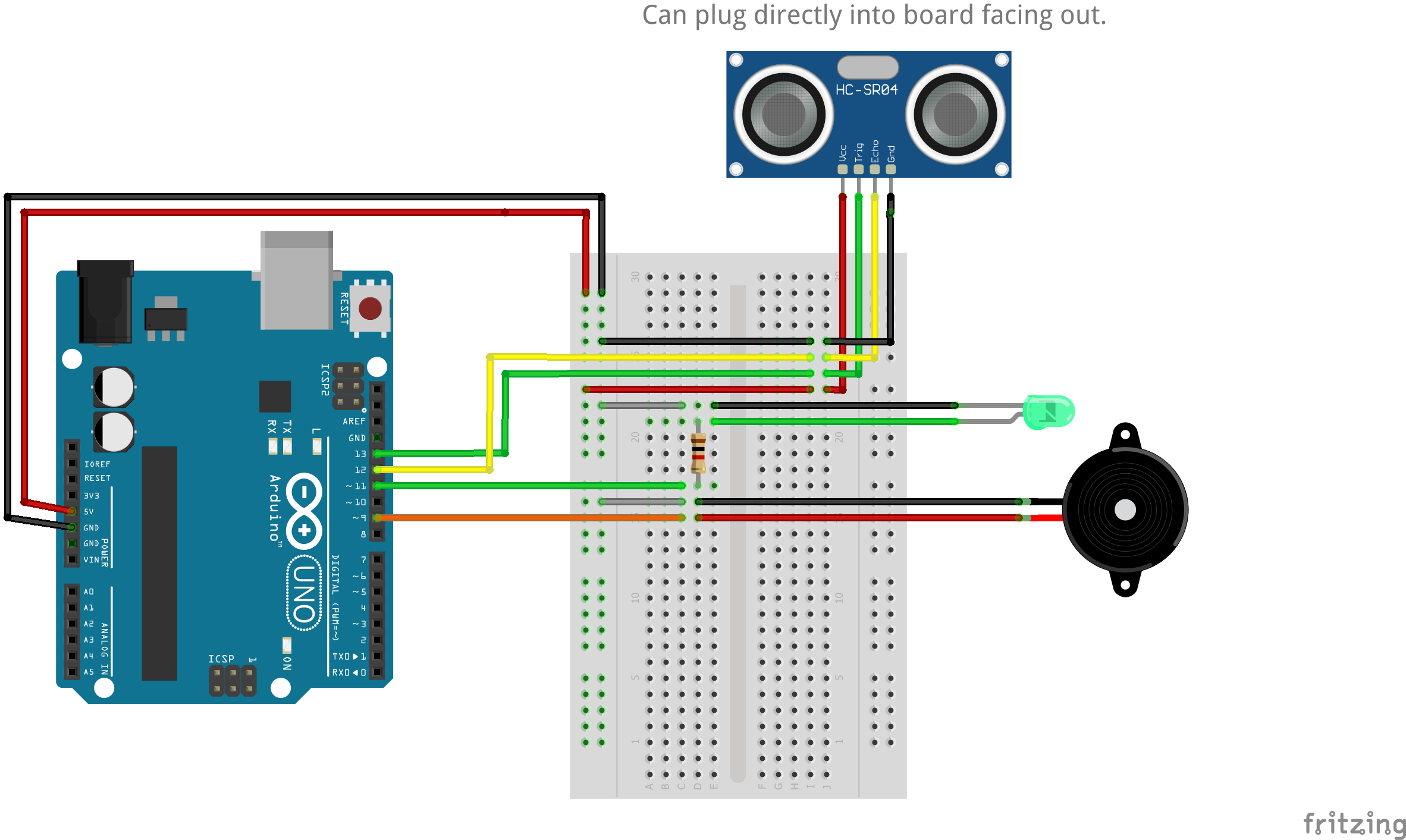

We wired up the board using the following sketch:

We used a Styrofoam wig head, hollowed out the back and poked some holes through it for various connections:

This video shows how we put it all together:

Update: Someone in the comments asked about how to make the body of the robot so I made this video to show how you can make one yourself!

Code

Buzzer and LED Activated by Distance Sensor

Buzzer and LED Activated by Distance SensorArduino

Distance is in centimeters.

#define trigPin 13
#define echoPin 12
#define buzzer 9 //buzzer to arduino pin 9
#define led 11



void setup()
{ Serial.begin (9600);
pinMode(trigPin, OUTPUT);
pinMode(echoPin, INPUT);
  pinMode(buzzer, OUTPUT); // Set buzzer - pin 9 as an output
  pinMode(led, OUTPUT);
}

void loop()
{ long duration, distance;
digitalWrite(trigPin, LOW);
delayMicroseconds(2);
digitalWrite(trigPin, HIGH);
delayMicroseconds(10);
digitalWrite(trigPin, LOW);

duration = pulseIn(echoPin, HIGH);
distance = (duration/2) / 29.1;

 if (distance < 100)

{ tone(buzzer, 98); // Send 1KHz sound signal...
digitalWrite(led,HIGH);
}

else {
noTone(buzzer);
digitalWrite(led,LOW);
}

Serial.print(distance);
Serial.println(" cm");
delay(500);
}

Schematics

A sketch, breadboard view of our set up for the Arduino and components. Build a Go Away Robot – Easy Arduino Starter Kit for Kids
