Master Vibration Detection with Arduino: A Simple Sensor & LED Setup

Components and supplies

Vibration Sensor Module

Master Vibration Detection with Arduino: A Simple Sensor & LED Setup

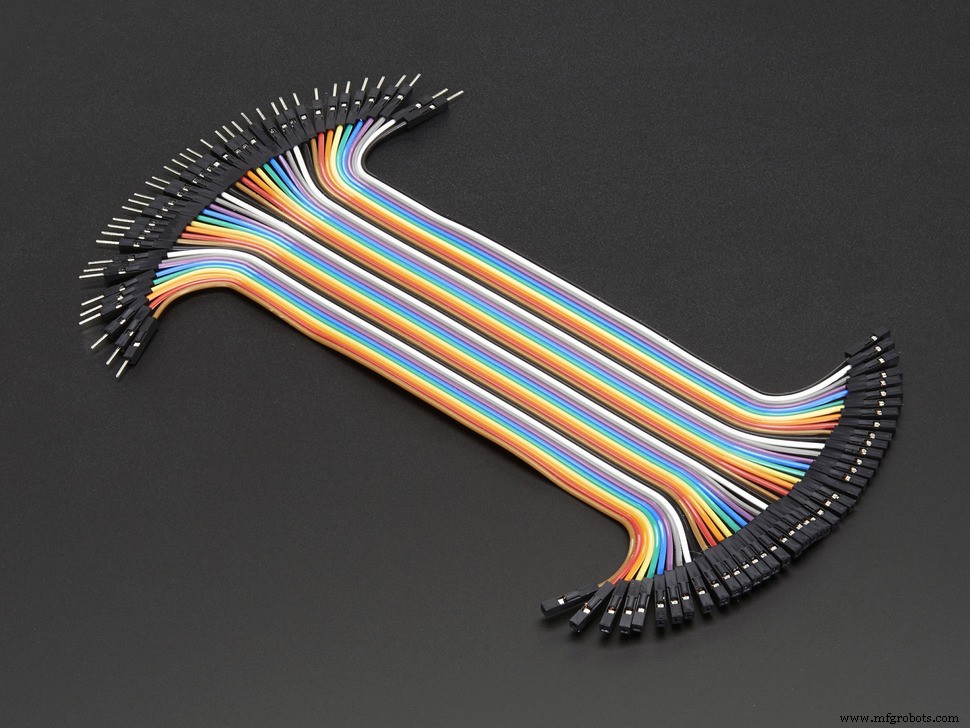

Male/Female Jumper Wires

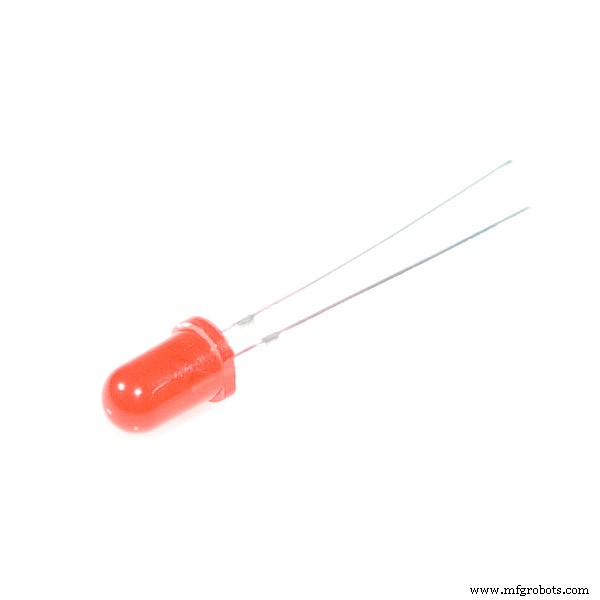

LED (generic)

Arduino UNO

Or Arduino Mega

Apps and online services

Arduino IDE

About this project

In this project, we will connect Arduino with Vibration sensor and LED. When no vibration is detected, Vibration sensor output is 0 (low voltage),otherwise its output is 1(high voltage)。 If Arduino get 0 (no vibration) from vibration sensor it will turn on green LED and turn off Red LED. If Arduino get 1 from vibration sensor, it will turn on Red LED and turn off green LED.

Code

Vibration Sensor Module (Code)

Vibration Sensor Module (Code)Arduino

int vib_pin=7;
int led_pin=13;
void setup() {
  pinMode(vib_pin,INPUT);
  pinMode(led_pin,OUTPUT);
}

void loop() {
  int val;
  val=digitalRead(vib_pin);
  if(val==1)
  {
    digitalWrite(led_pin,HIGH);
    delay(1000);
    digitalWrite(led_pin,LOW);
    delay(1000);
   }
   else
   digitalWrite(led_pin,LOW);
}

Schematics
