Infinity Mirror Clock: Endless Elegance Meets Accurate Time

About this project

We are in a wonderful design that you can offer both as a gift for yourself: Infinity Mirror Clock. Do not you want the mirror you possess to have an endless appearance and be used at the same time hour? We are very happy to share with you this project which is prepared with RGB LEDs which are widely used today. You can learn how to make an infinite mirror clock by watching your video.

Code

• Arduino Code

Arduino CodeArduino

#include <Adafruit_NeoPixel.h>
#include <stdio.h>
#include <DS1302.h>

#ifdef __AVR__
  #include <avr/power.h>
#endif

#define PIN            8
#define NUMPIXELS      60
Adafruit_NeoPixel pixels = Adafruit_NeoPixel(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ800);
Adafruit_NeoPixel strip = Adafruit_NeoPixel(60, PIN, NEO_GRB + NEO_KHZ800);
namespace {


byte ysaat;
byte ydak;
byte saat;
byte dak;
byte sn;
byte kontrol=0;
 const int kCePin   = 5;  // Chip Enable
const int kIoPin   = 6;  // Input/Output
const int kSclkPin = 7;  // Serial Clock

DS1302 rtc(kCePin, kIoPin, kSclkPin);


}

void printTime() {
  // Get the current time and date from the chip.
  Time t = rtc.time();
  saat=t.hr;
  dak=t.min;
  sn=t.sec;
  if(saat>=12){saat=saat-12;}
  pixels.setPixelColor(5*saat, pixels.Color(25,25,255));
  pixels.setPixelColor(dak, pixels.Color(0,200,10));
  pixels.setPixelColor(sn, pixels.Color(255,0,0));

  pixels.show();
  //Serial.println(t.sec);
  //pixels.setPixelColor(t.hr, pixels.Color(0,0,0));
  //pixels.setPixelColor(t.sec-1, pixels.Color(0,0,0));

  pixels.show();
  if(sn==0)
   {
    pixels.setPixelColor(dak-1, pixels.Color(0,0,0));
    pixels.setPixelColor(dak, pixels.Color(0,200,10));
     pixels.show();
    for(int i=1;i<60;i++)
      {
    pixels.setPixelColor(i, pixels.Color(0,0,0));
      }
    }

   if(dak==0)
  {
    pixels.setPixelColor(59, pixels.Color(0,0,0));
    }
}


void animasyon()
{
  colorWipe(strip.Color(255, 0, 0), 25); // Red
  colorWipe(strip.Color(0, 255, 0), 25); // Green
  colorWipe(strip.Color(0, 0, 255), 25);
    theaterChase(strip.Color(127, 127, 127), 50); // White
  theaterChase(strip.Color(127, 0, 0), 50); // Red
  theaterChase(strip.Color(0, 0, 127), 50);
  for(int i=1;i<60;i++)
      {
    pixels.setPixelColor(i, pixels.Color(0,0,0));
      }

 }
 void colorWipe(uint32_t c, uint8_t wait) {
  for(uint16_t i=0; i<strip.numPixels(); i++) {
    strip.setPixelColor(i, c);
    strip.show();
    delay(wait);
  }
}
  void theaterChase(uint32_t c, uint8_t wait) {
  for (int j=0; j<10; j++) {  //do 10 cycles of chasing
    for (int q=0; q < 3; q++) {
      for (uint16_t i=0; i < strip.numPixels(); i=i+3) {
        strip.setPixelColor(i+q, c);    //turn every third pixel on
      }
      strip.show();

      delay(wait);

      for (uint16_t i=0; i < strip.numPixels(); i=i+3) {
        strip.setPixelColor(i+q, 0);        //turn every third pixel off
      }
    }
  }
}


  void yenisaat()
  {
 //kontrol=0;
    saat=ysaat;
    dak=ydak;
     Time t(2018, 2, 23,ysaat, ydak, 0, Time::kFriday);
    rtc.time(t);

    }


 int clockSet =10;
 int up=11;
 int down=12;
void setup() {
  Serial.begin(9600);
#if defined (__AVR_ATtiny85__)
  if (F_CPU == 16000000) clock_prescale_set(clock_div_1);
#endif
strip.begin();
  strip.show();
pixels.begin();

pinMode( clockSet,INPUT);


  rtc.writeProtect(false);
  rtc.halt(false);
}

void loop() {


  if (kontrol==1)
  {
    pixels.setPixelColor(5*ysaat, pixels.Color(25,25,255));
    pixels.show();
  delay(100);
  pixels.setPixelColor(5*ysaat, pixels.Color(0,0,0));
  pixels.show();
  delay(100);
if (digitalRead(up)==HIGH)
{
  ysaat++;
  while(digitalRead(up)==HIGH);
  if(ysaat==12){ysaat=0;}
}
if (digitalRead(down)==HIGH)
{
  ysaat--;
  while(digitalRead(down)==HIGH);
  if(ysaat==255){ysaat=11;}
}

  pixels.setPixelColor(5*ysaat, pixels.Color(25,25,255));
  pixels.show();
  delay(100);
  pixels.setPixelColor(5*ysaat, pixels.Color(0,0,0));
  pixels.show();
  delay(100);
  yenisaat();
  if(digitalRead(clockSet)==HIGH)
  {
  while(digitalRead(clockSet)==HIGH)
  { pixels.setPixelColor(kontrol, pixels.Color(255,255,255));
   pixels.show();
   }
   pixels.setPixelColor(kontrol, pixels.Color(0,0,0));
   pixels.show();
   kontrol++;
   ysaat=saat;ydak=dak;}

    }
 if (kontrol==2)
  {
    if(digitalRead(clockSet)==HIGH)
  {
    kontrol++;
  while(digitalRead(clockSet)==HIGH)
  {    }

   ysaat=saat;ydak=dak;
   }

  if (digitalRead(up)==HIGH)
{
  ydak++;
  while(digitalRead(up)==HIGH);
  if(ydak==60){ysaat=0;}
}
if (digitalRead(down)==HIGH)
{
  ydak--;
  while(digitalRead(down)==HIGH);
  if(ydak==255){ydak=59;}
}
  pixels.setPixelColor(ydak, pixels.Color(0,205,10));
  pixels.show();
  yenisaat();
  delay(100);
  pixels.setPixelColor(ydak, pixels.Color(0,0,0));
     pixels.show();
     delay(100);
    }
  if (kontrol==3)
  {
    kontrol=0;
     yenisaat();
  }
  while (kontrol==0)
  {
    if(digitalRead(up)==HIGH)
  {
    animasyon ();
  }
    if(digitalRead(clockSet)==HIGH)
  {
    kontrol++;
  while(digitalRead(clockSet)==HIGH);
  ysaat=saat;ydak=dak;}
  printTime();
  }
}

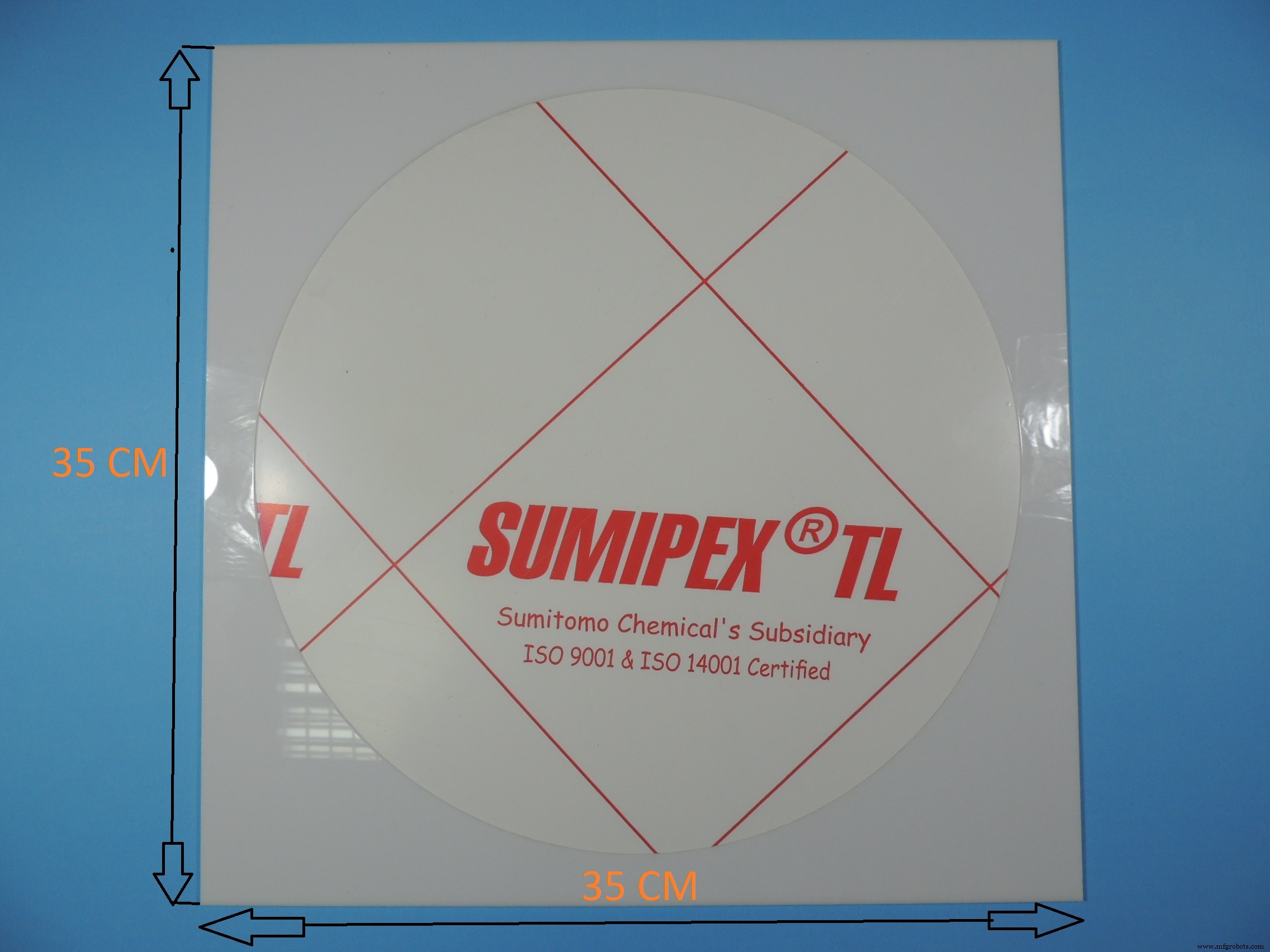

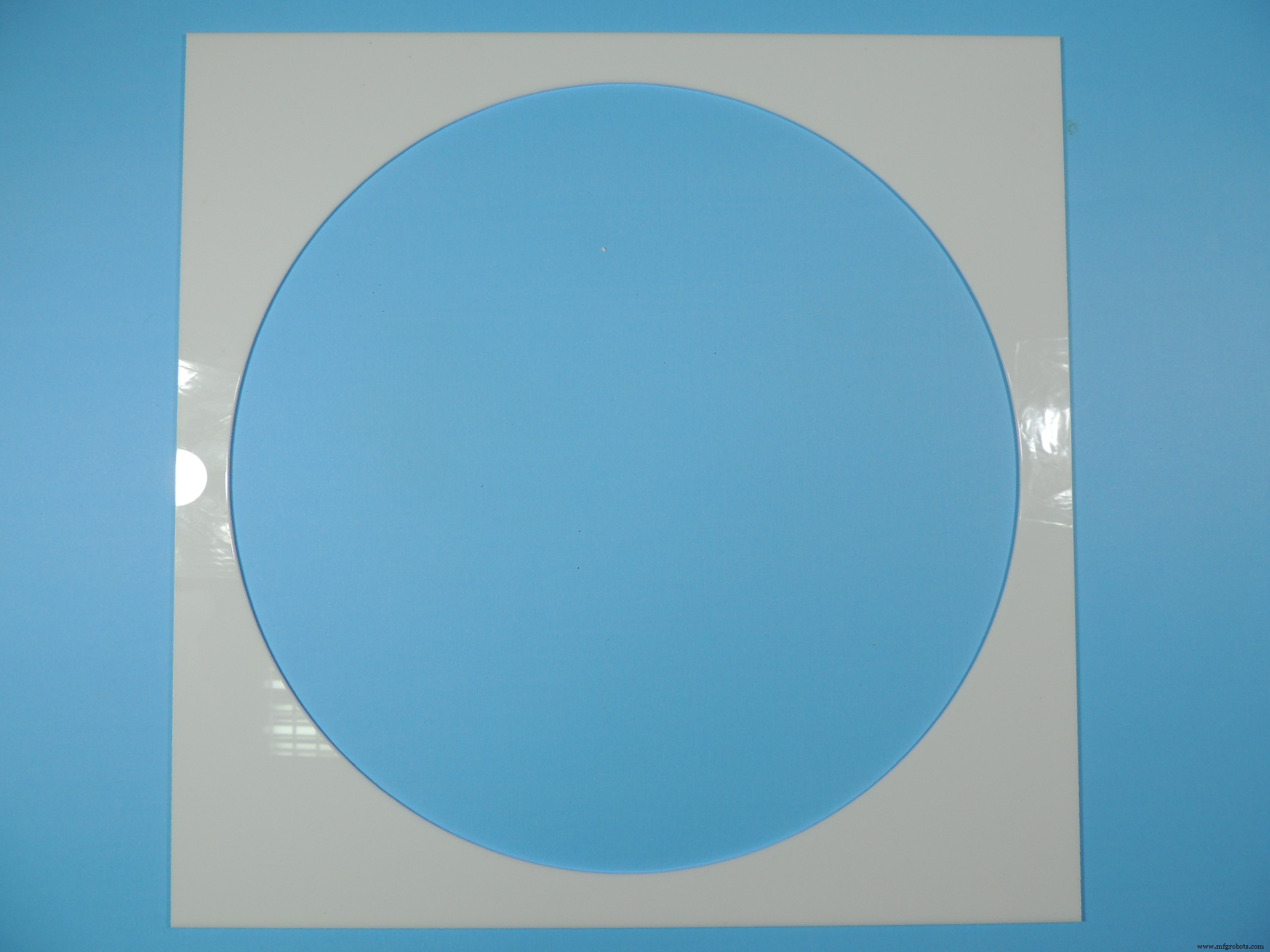

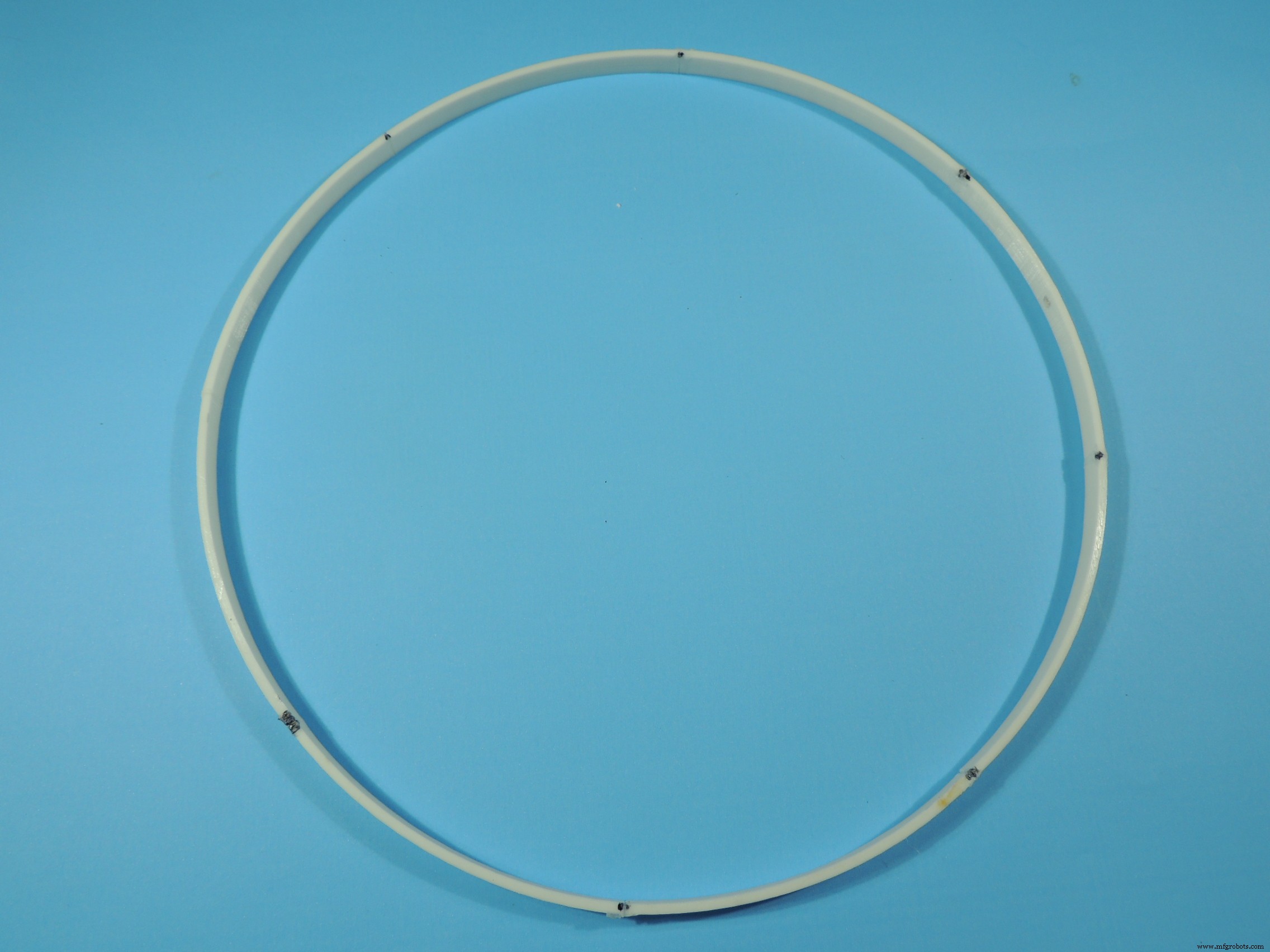

Custom parts and enclosures

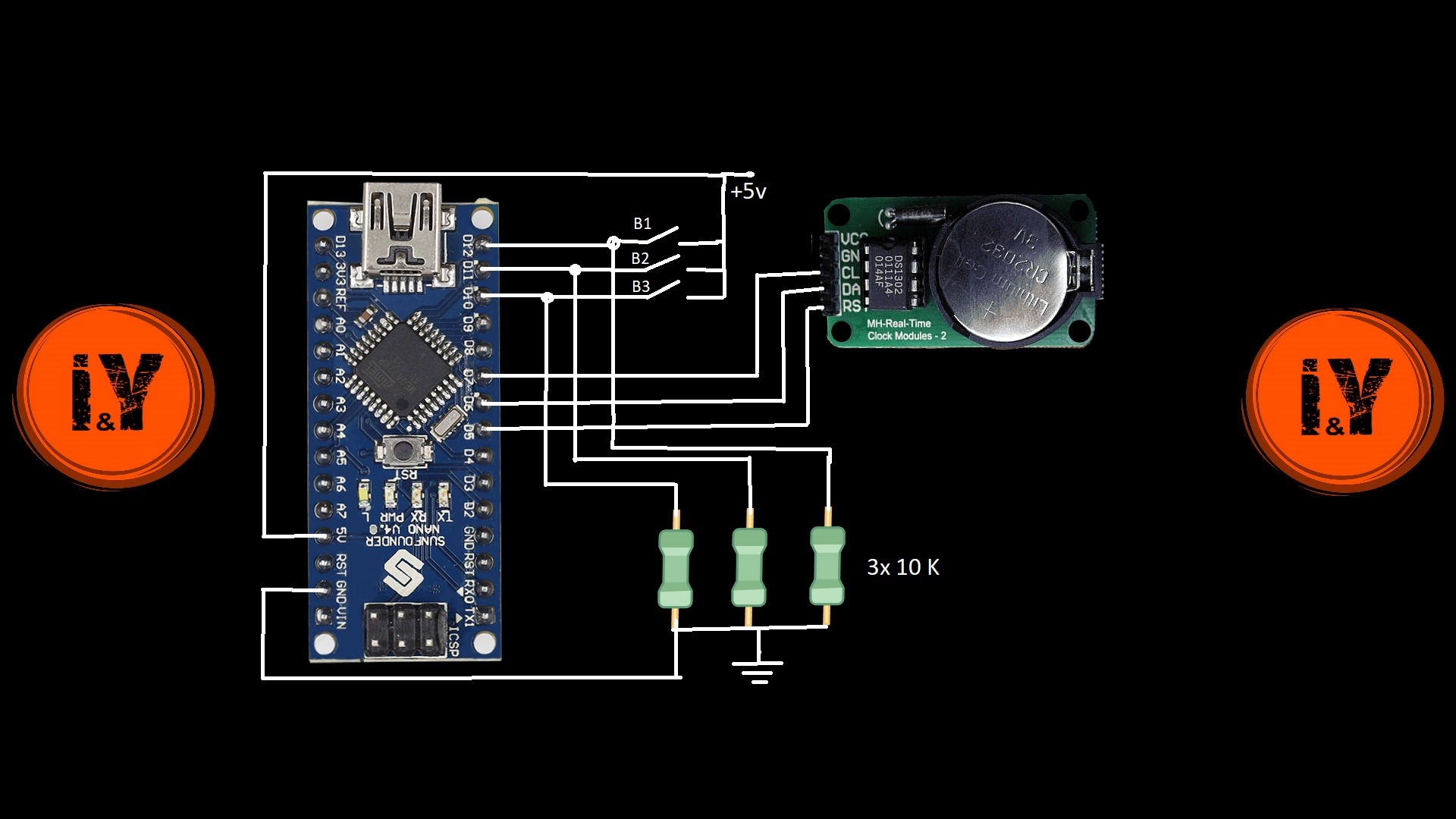

Schematics
