Why Mastering Machine Troubleshooting is Critical for Modern Manufacturers

Trained troubleshooters are a scarce asset in today’s manufacturing landscape. Senior managers at major plants often struggle to locate qualified technicians. Historically, basic training programs left the nuanced art of troubleshooting to long, on‑the‑job apprenticeships. With many seasoned workers approaching retirement and a shortage of newcomers with these specialized skills, companies face a critical talent gap.

In a marketplace where profit margins can be razor‑thin, rapid and accurate machine troubleshooting is not just a convenience—it’s a competitive necessity. Technical educators now carry the heavy responsibility of producing technicians who can jump straight into the production floor, eliminating the days of idle equipment and costly trial‑and‑error fixes.

Because allowing novices to acquire troubleshooting expertise through years of on‑the‑job experience is impractical, a classroom foundation is essential. Community colleges and corporate training centers must simulate a wide array of fault conditions so that trainees gain hands‑on experience diagnosing real‑world problems. An industry‑validated curriculum guarantees consistent outcomes for every learner.

Effective troubleshooting follows five core steps: identify symptoms, isolate the suspect component, test that component, repair or replace it, and verify the system.

Recognizing symptoms is the first and most critical step. It narrows the investigation to specific parts and saves valuable time. Instructors must emphasize that the operator—who runs the machine daily—offers the most intimate knowledge of its behavior. Even the most seasoned troubleshooter can’t replace the operator’s insights at this early stage.

Once symptoms are recorded, the technician should categorize the fault into one of three groups—machine sequence, machine performance, or system‑related issues. Machine sequence faults involve the order of events such as actuator movements or pressure changes. Machine performance faults pertain to output characteristics like speed or force. System‑related faults encompass broader conditions, including vibration, fluid temperature, or leaks.

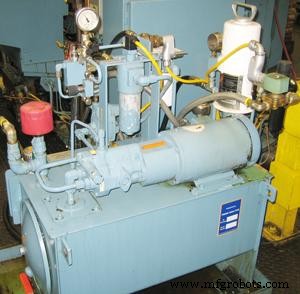

Take a fluid‑power system as an example. A sequence fault might point to a faulty sensor or controller; a performance fault could stem from a pressure‑reducing valve or pump; and a system‑related fault such as a leak may indicate a more extensive failure. By grouping symptoms, technicians can focus their efforts on a narrower set of components.

After categorization, a systematic testing methodology should be employed.

Shotgun

Every component or connection in the suspected area is tested sequentially until the defect is found.

Half‑Split

Starting with a known good point and a known bad point, the technician repeatedly tests the midpoint until the fault is isolated.

Output‑Back

Testing begins at the system’s output and works backward toward the inputs to locate the failure.

Symptom and Cause

Components are evaluated based on whether they can logically produce the observed symptoms. This method, favored by seasoned experts, saves time by focusing only on viable candidates.

Once a suspect component is identified via in‑circuit testing, it must be tested out of circuit to confirm the failure. Isolating the part prevents unnecessary replacements. A leading parts manufacturer reports that nearly 70 % of returned parts were actually functioning correctly.

After a repair, the final step is to verify that the system operates as intended before signing off. For instance, after replacing a hydraulic relief valve, a maintenance technician left the machine, only for the operator to discover that the wrong valve had been installed, causing continued leakage and doubling labor costs.

The industry’s need for skilled troubleshooters continues to grow. While community colleges and training centers are stepping up, the current supply remains far below demand. Companies must invest in robust training programs to bridge this gap and sustain competitive advantage.
