STM32WLE5: Low‑Power, LoRa‑Compliant SoC for Advanced IoT Devices

The STM32WLE5 system‑on‑chip (SoC) from STMicroelectronics combines a low‑power STM32 microcontroller with a 48‑MHz ARM Cortex‑M4 core and a LoRa‑compliant radio. Designed for IoT, it delivers long‑range, low‑power connectivity across the entire unlicensed sub‑1 GHz band (150 MHz–960 MHz), ensuring seamless integration with LoRa networks worldwide.

Receiver sensitivity reaches –148 dBm, and two internal power amplifiers provide 15 dBm and 22 dBm output, extending RF reach. The SoC also supports (G)FSK, (G)MSK, and BPSK modulations, enabling developers to implement alternative or proprietary protocols alongside LoRa.

Developers can choose from 64 kB, 128 kB, or 256 kB of on‑chip flash, giving ample storage for firmware, radio firmware, and data. Security is built into the core: hardware‑accelerated 128‑bit/256‑bit AES encryption, sector‑level read/write protection, and an elliptic‑curve cryptography engine for public‑key operations.

click for larger image

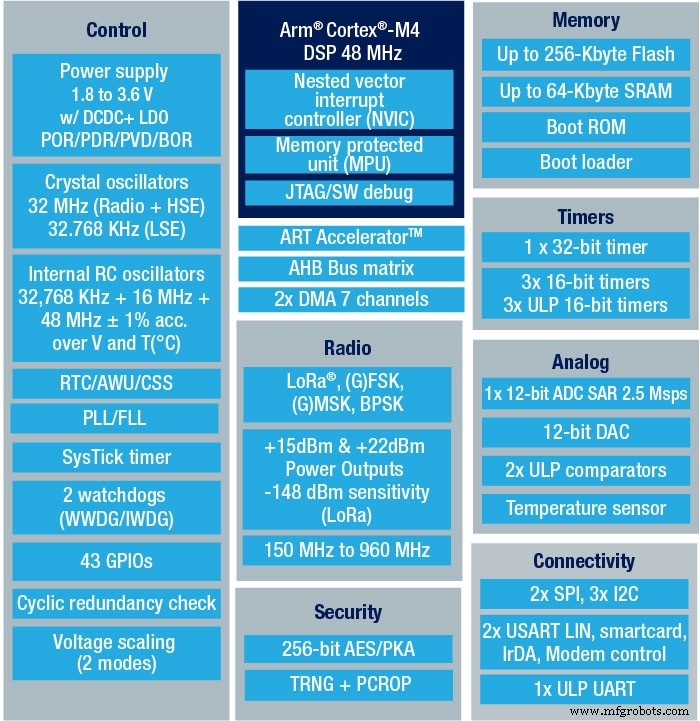

STM32WLE family devices combine an Arm Cortex‑M4 core with a LoRa‑compliant ultra‑low‑power radio subsystem. (Source: STMicroelectronics)

Packaged in a compact 5 × 5 mm UFBGA73, the STM32WLE5 is ideal for remote sensors, meters, trackers, and process controllers that demand energy efficiency. It is supported by STM32Cube software and comes with a LoRaWAN stack certified for all regions, simplifying rapid, compliant IoT deployment.
