Impact of Post‑Irradiation Annealing on Microstructural Evolution and Hardening of Helium‑Hydrogen‑Implanted V‑4Cr‑4Ti Alloys

Background

Vanadium‑based alloys are promising candidates for structural components in fusion reactors due to their low activation and superior high‑temperature performance [1]. However, transmutation reactions in a fusion environment generate He and H, which profoundly alter alloy microstructures and mechanical properties [2]. Helium, with its low solubility, promotes irradiation hardening, embrittlement, segregation, and void swelling [3, 4]. The synergistic effects of He and H under irradiation remain inadequately understood [5]. Prior work on V‑4Ti under He+H irradiation showed that He bubbles only form when He concentrations exceed 0.5 at.% [6], indicating that irradiation‑induced defects primarily drive hardening in low‑He scenarios. Determining the roles of dislocation loops, nets, and bubbles under high He and H concentrations is therefore essential.

Post‑irradiation annealing can recover irradiation damage and restore mechanical properties [9–11]. In V‑3Fe‑4Ti‑0.1Si, annealing above 600 °C eliminated hardening, while 500 °C for 2 h produced negligible recovery [12]. EUROFER base steels benefited from repeated annealing at 550 °C, which reduced embrittlement and hardening, and 500 °C was identified as the threshold for initiating recovery [13]. Exploring recovery below 500 °C is crucial for fusion reactor operation, where blanket modules are maintained at temperatures that enable liquid lithium cooling even during shutdown periods. Lower‑temperature annealing could enable more efficient self‑healing with extended holding times [14].

Our study investigates the effect of 450 °C annealing on He‑H‑implanted V‑4Cr‑4Ti alloys. Four sample groups— as‑irradiated, and post‑irradiation annealed for 10, 20, and 30 h—were examined using HRTEM and nanoindentation to understand defect stability and hardening recovery.

Methods/Experimental

V‑4Cr‑4Ti alloy (SWIP 30, Southwestern Institute of Physics) had the composition shown in Table 1. The material was wrapped in Zr and Ta foils, sealed in quartz capsules under high vacuum, and annealed at 1100 °C for 2 h to homogenize the microstructure. Discs (100 µm × 3 mm) were then prepared. TEM foils were produced by electropolishing; specimens for nanoindentation were polished to a mirror finish. Ion implantation was performed at the Beijing Radiation Center: 50 keV He⁺ and 30 keV H⁺ ions (calculated by SRIM) to a fluence of ~5 × 10¹⁶ ions cm⁻² each, producing a depth profile that overlapped in the near‑surface region. Post‑irradiation annealing was carried out at 450 °C for 10–30 h in the same high‑vacuum setup. Microstructural analysis employed a FEI F‑20 HRTEM, while nanoindentation used a Nano Indenter XP at RT with 1000 nm indentation depth and nine indents per sample.

Results and Discussion

Microstructural Observation

Figure 1 presents bright‑field and HRTEM images of the as‑irradiated alloy. Numerous point‑defect clusters—vacancies and interstitials—are uniformly distributed, though individual clusters are too small to resolve separately. The HRTEM image (Fig. 1b) shows lattice fringe distortions (white arrows), indicative of defect‑induced strain.

Images of V‑4Cr‑4Ti alloys after sequential He+H ion irradiation at RT. a TEM bright‑field image of defects. b HRTEM image of defects.

No He or H bubbles are visible at RT; bubble nucleation requires sufficient He mobility, which is limited at this temperature [3]. He‑vacancy (He‑V) complexes and small He clusters form but remain immobile, preventing bubble growth. Hydrogen ions continue to generate vacancies and interstitials; their binding to He clusters further traps vacancies, potentially assisting bubble nucleation when temperature rises [16, 17].

Figure 2 shows microstructures after 10 h annealing at 450 °C. Dislocation loops appear in focus (Fig. 2a), and a high density of bubbles is evident in bright‑field images (Fig. 2b). The loops are ~4 nm in diameter; bubbles average ~9 nm with a density of 1.5 × 10¹¹ cm⁻². The bubbles are predominantly He‑filled, with H trapped in He‑V complexes, explaining the suppression of H bubble formation [19].

Dislocation loops and bubbles of V‑4Cr‑4Ti alloys after post‑irradiation annealing at 450 °C for 10 h. a Dislocation loops. b Bubbles (bright‑field). c‑e High‑resolution images of bubbles.

Increasing annealing time promotes the migration of He‑V complexes and He clusters, leading to bubble growth via clustering of He and H atoms with vacancies and interstitials. Both dislocation loops and bubbles dominate the defect landscape. Interstitial‑type loops are expected because low‑temperature light‑ion irradiation preferentially forms interstitial clusters [21].

Figure 3 illustrates microstructures after 20 h annealing: dislocation loops (~18 nm, 7.5 × 10¹⁰ cm⁻²) and bubbles (~11 nm, 2.1 × 10¹¹ cm⁻²) have coarsened, reducing density but increasing size. Bubble coarsening follows Ostwald ripening: small bubbles dissolve while large bubbles grow, driven by thermally activated diffusion of He and H atoms [10, 23]. Bubble over‑pressurization can lead to rupture at the thin foil surface, creating craters (Fig. 3b) [22].

Microstructures after 20 h annealing at 450 °C. a Dislocation loops (bright‑field). b‑c Bubbles (bright‑field). d‑e High‑resolution images of bubbles.

After 30 h (Fig. 4), bubble size further increases (average 14 nm, density 1.6 × 10¹¹ cm⁻²) while dislocation loops largely disappear, likely due to migration to the free surface or dissolution into the matrix. High‑resolution imaging confirms the presence of dislocation lines (Fig. 4b) but no intact loops. The absence of Ti‑O precipitates, which have been reported in vanadium alloys above 400 °C [24], is confirmed by STEM‑EDS mapping (Fig. 5). Oxygen content remains low and no plate‑ or disc‑like precipitates are detected.

Microstructures after 30 h annealing at 450 °C. a Bubbles (bright‑field). b Dislocation lines (high‑resolution).

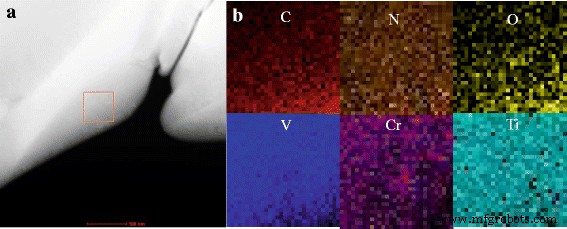

STEM and EDS mapping after 30 h annealing at 450 °C. a Z‑contrast image. b Composition map.

Irradiation Hardening

Nanoindentation was performed to quantify irradiation hardening, with the un‑irradiated alloy serving as a reference. Figure 6a shows the raw hardness depth profiles, revealing the indentation size effect (ISE) where shallow indents exhibit higher apparent hardness. To mitigate ISE, data below 100 nm were excluded. Figure 6b presents the depth‑dependent average hardness for all samples. The as‑irradiated alloy exhibits a clear hardening relative to the un‑irradiated material, confirming defect‑induced strengthening.

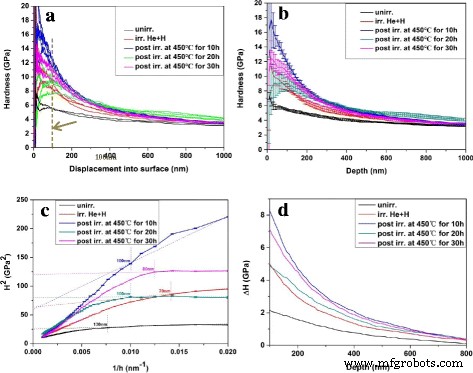

Hardness of V‑4Cr‑4Ti alloys under various conditions. a Raw hardness vs depth. b Average hardness with error bars. c H² vs 1/h plot. d Corrected ΔH after ISE removal.

Applying the Nix‑Gao model (H² = H₀²(1 + h* / h)) allowed extraction of the indentation‑size‑effect‑free hardness H₀. The H² vs 1/h plots (Fig. 6c) are linear at shallow depths but deviate at larger depths, a common feature in irradiated metals. Corrected hardness increments ΔH (Fig. 6d) reveal that the as‑irradiated alloy is harder than the un‑irradiated counterpart. Among the annealed series, hardness after 20 h is the lowest, while 10 h annealing yields the highest hardening. This trend correlates with the evolution of dislocation loops and bubbles described above.

Dislocation loops contribute to hardening through the dispersed‑barrier model (Δσ_y = Mαμb√Nd), while bubbles contribute via the Friedel‑Kroupa‑Hirsch relation (Δσ = (1/8)MμbdN²⁄³). Using the measured N and d values (Table 2) and constants M = 3.05, α = 0.45, μ and b for BCC vanadium, we calculated the hardening contributions for each annealing time (Table 3). Dislocation‑loop hardening diminishes with longer annealing, whereas bubble‑driven hardening becomes dominant after 30 h.

These results indicate that, despite significant defect evolution, irradiation hardening persists up to 30 h at 450 °C. The modest recovery observed after 20 h likely reflects annihilation of point defects at sinks and partial detachment of loops from bubbles. Complete recovery would require higher annealing temperatures or longer durations, as suggested by earlier studies on V‑based alloys [14].

Conclusions

Sequential He and H implantation to a dose of 10¹⁷ ions cm⁻² at RT, followed by 450 °C annealing for 10–30 h, produced a clear microstructural evolution: dislocation loops and bubbles grew in size while their densities decreased. Loop migration to the free surface was observed, and bubble coarsening followed Ostwald ripening, culminating in large, low‑density bubbles after 30 h. Nanoindentation confirmed that irradiation hardening is directly linked to these defect populations. Without annealing, point‑defect‑induced lattice distortion drives hardening. After 10 h annealing, the strong interaction between loops and bubbles maximizes hardening; at 20 h, this interaction weakens, slightly reducing hardness; at 30 h, bubble‑dominated hardening rises again. Thus, 450 °C annealing does not fully recover irradiation hardening within 30 h, underscoring the need for higher temperatures or extended times to achieve substantial defect annihilation.

Abbreviations

H:

Hydrogen

He:

Helium

He‑V:

Helium‑vacancy complex

HRTEM:

High‑resolution transmission electron microscopy

ISE:

Indentation size effect

RT:

Room temperature

SRIM:

Stopping and Range of Ions in Matter

STEM‑EDS:

Scanning electron microscope energy‑dispersive X‑ray spectroscopy

TEM:

Transmission electron microscope
