Fast Swept‑Wavelength, Low‑Threshold Continuous‑Wave EC‑QCL with 135 cm⁻¹ Tuning Range and <0.2 cm⁻¹ Resolution

Abstract

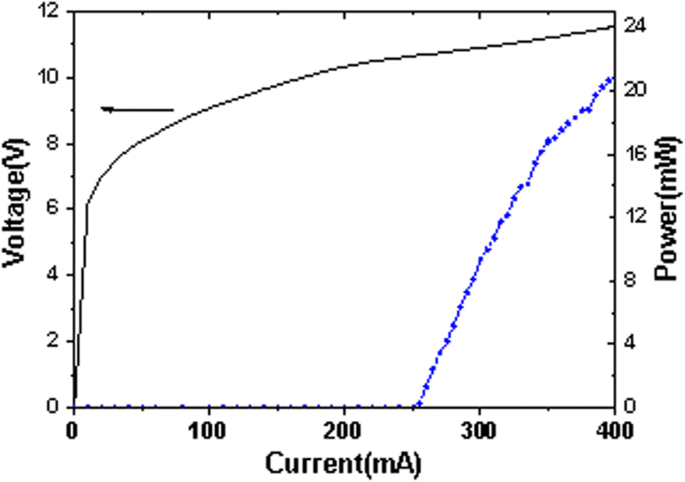

We demonstrate a continuous‑wave external‑cavity quantum cascade laser (EC‑QCL) that operates at a remarkably low threshold current of 250 mA and sweeps its wavelength at 100 Hz across a full 290 nm range (2105–2240 cm⁻¹). The device delivers up to 20.8 mW of output power at 400 mA, and when driven with a sawtooth current modulation, achieves a spectral resolution better than 0.2 cm⁻¹ throughout the tuning span. This low‑power, fast‑swept EC‑QCL is poised to benefit a broad spectrum of applications, from trace‑gas detection to high‑resolution spectroscopy.

Background

The mid‑infrared (MIR) spectral window, often called the molecular fingerprint region, contains the fundamental ro‑vibrational transitions of most molecules. Consequently, MIR laser absorption spectroscopy underpins a variety of critical applications, including medical breath analysis, atmospheric pollutant monitoring, and industrial effluent surveillance ^[1,2,3]. Recent advances in MIR laser technology have markedly improved the speed, sensitivity, and accuracy of spectroscopic instruments.

For absorption spectroscopy, a narrow‑linewidth, tunable single‑frequency laser is essential. Distributed‑feedback (DFB) quantum cascade lasers (QCLs) excel in this regard, offering ultra‑narrow linewidths ^[4], high output power, and room‑temperature continuous‑wave (CW) operation. However, the tuning range of a single DFB laser is limited to only a few wavenumbers (≈10 cm⁻¹) via temperature tuning, which constrains broadband absorption studies and multi‑species detection ^[5]. DFB arrays can reach tunabilities of 220 cm⁻¹, but they require complex electron‑beam lithography for each grating period and demand beam‑combining optics for multi‑wavelength sensing ^[6,7].

External‑cavity QCLs (EC‑QCLs) provide a broadly tunable alternative, achieving ranges beyond 300 cm⁻¹ with stepper‑motor‑based slow scans ^[8]. Mode‑hop‑free tuning is traditionally enabled by a mode‑tracking scheme that synchronizes current and cavity length modulations ^[9], yet this method limits the instantaneous tuning step to roughly 1 cm⁻¹ within the full range ^[10]. Rapidly swept EC‑QCLs employing MEMS or acousto‑optic modulators can reach sweep rates exceeding 100 cm⁻¹ in sub‑millisecond intervals ^[11], but their spectral resolution typically remains around 1 cm⁻¹, insufficient for narrow absorption features.

A recent swept‑wavelength EC‑QCL system demonstrated >100 cm⁻¹ tuning at 200 Hz with an average 11 mW output at a 50 % duty cycle ^[12,13], though pulsed operation introduces chirp‑induced line broadening. In this work, we employ a scanning galvanometer within a Littman‑Metcalf cavity to realize a fast, continuous‑wave swept‑wavelength EC‑QCL. The device covers 135 cm⁻¹ (2105–2240 cm⁻¹), sweeps at 100 Hz, and maintains a threshold current of 250 mA at room temperature. Time‑resolved step‑scan Fourier‑transform infrared (FTIR) measurements and laser spectrum analysis confirm a spectral resolution below 0.2 cm⁻¹ with sawtooth modulation.

Methods

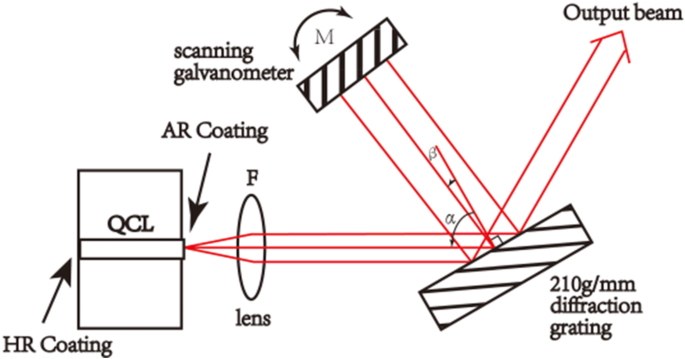

The EC‑QCL is built on a Littman‑Metcalf architecture comprising a Fabry–Perot (FP) QCL gain chip, a collimating lens, a diffraction grating, and a scanning galvanometer (Thorlabs GVS111). The QCL chip, a 3‑mm‑long ridge with 12 µm width, is fabricated via MOCVD on a buried‑heterostructure In_0.67Ga_0.33As/In_0.36Al_0.64As lattice‑matched stack, featuring 30 periods ^[14]. High‑reflectivity (HR) and anti‑reflection (AR) coatings are applied to the rear and front facets, respectively: HR = Al₂O₃/Ti/Au/Ti/Al₂O₃ (200/10/100/10/120 nm) and AR = Al₂O₃/Ge (448/35 nm). The chip is mounted epilayer‑side down on a SiC heat sink with indium solder, wire‑bonded, and thermally regulated via a thermistor‑controlled TEC.

Fast Swept‑Wavelength, Low‑Threshold Continuous‑Wave EC‑QCL with 135 cm⁻¹ Tuning Range and 0.2 cm⁻¹ Resolution

The configuration employs a 6 mm focal‑length collimating lens, a 210‑groove/mm diffraction grating, and the scanning galvanometer. First‑order diffracted light is directed to the galvanometer, reflected by the grating, and coupled back into the FP‑QCL. The zero‑order reflected beam constitutes the single‑mode laser output. Optical power and spectral characteristics are recorded using a calibrated thermopile detector and an FTIR spectrometer, respectively, with the chip maintained at 25 °C during CW operation.

Results and Discussion

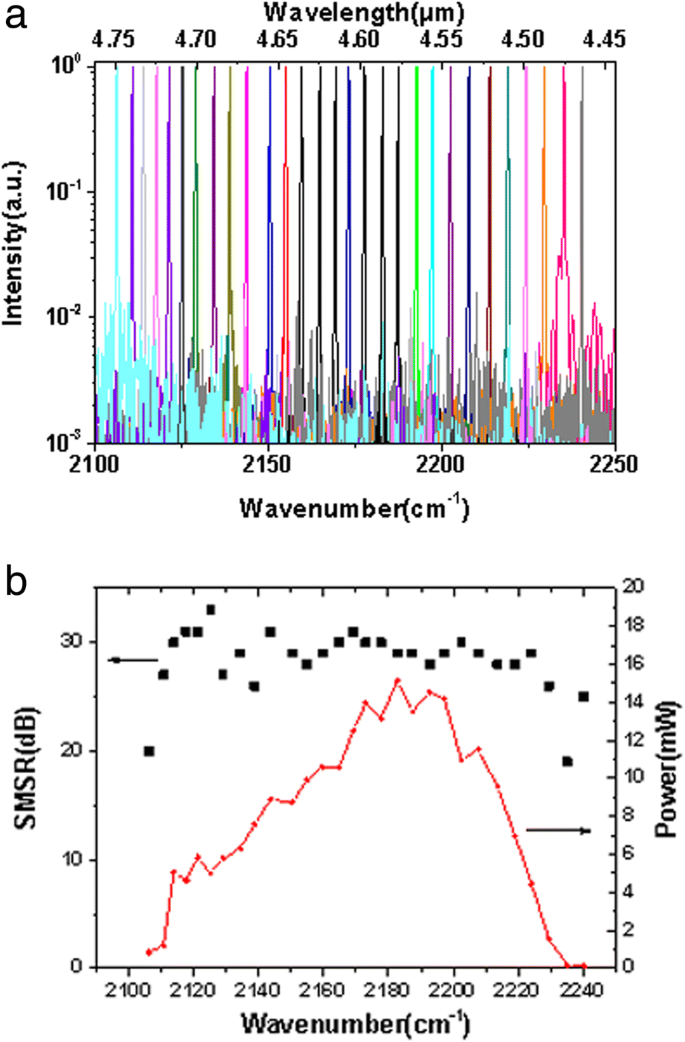

Figure 2a shows the CW spectra at 330 mA while the galvanometer is stepped in 0.1° increments. The emission peak shifts continuously from 2105 to 2240 cm⁻¹. Correspondingly, Figure 2b plots the output power and side‑mode‑suppression ratio (SMSR). An SMSR above 25 dB is maintained across nearly the entire tuning range, and the average output power reaches ~8 mW, mirroring the electroluminescence profile.

EC‑QCL Scan Characterization

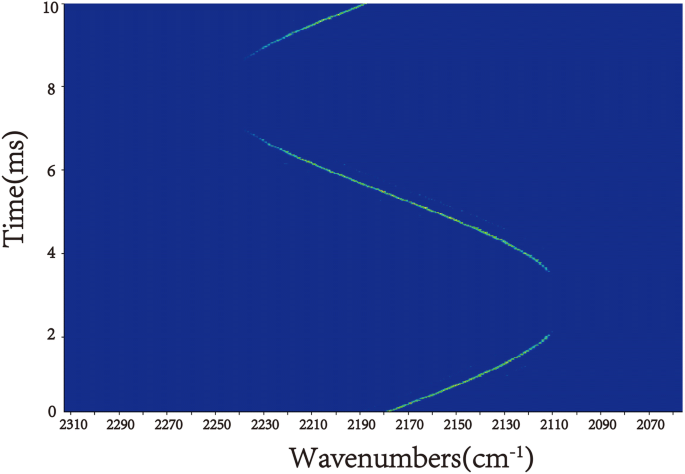

A 100 Hz sinusoidal voltage is applied to the galvanometer, resulting in a 3° total tuning angle. The EC‑QCL, driven at 330 mA, sweeps repeatedly in CW mode. Synchronizing this modulation with a step‑scan FTIR (0.2 cm⁻¹ resolution, 20 ns time resolution) yields the time‑resolved emission trace in Figure 4. The laser begins at 2180 cm⁻¹, descends to the minimum after one quarter of a cycle, and then traverses the full 2105–2240 cm⁻¹ span during the subsequent half‑cycle. The wavelength evolution follows the Littman‑Metcalf dispersion relation:

$$ \lambda = \frac{d}{m}\left(\sin\alpha + \sin\beta\right) \quad (1) $$

With m = 1, β = 7.7°, and d = 4.76 µm, the instantaneous tuning rate is given by:

$$ \frac{d\lambda}{dt}=d\cos(\beta+\theta)\frac{d\theta}{dt} \quad (2) $$

At a galvanometer speed of 12.6 rad s⁻¹, the EC‑QCL achieves a wavelength sweep rate of 59.3 µm s⁻¹ (≈135 cm⁻¹ over 100 Hz).

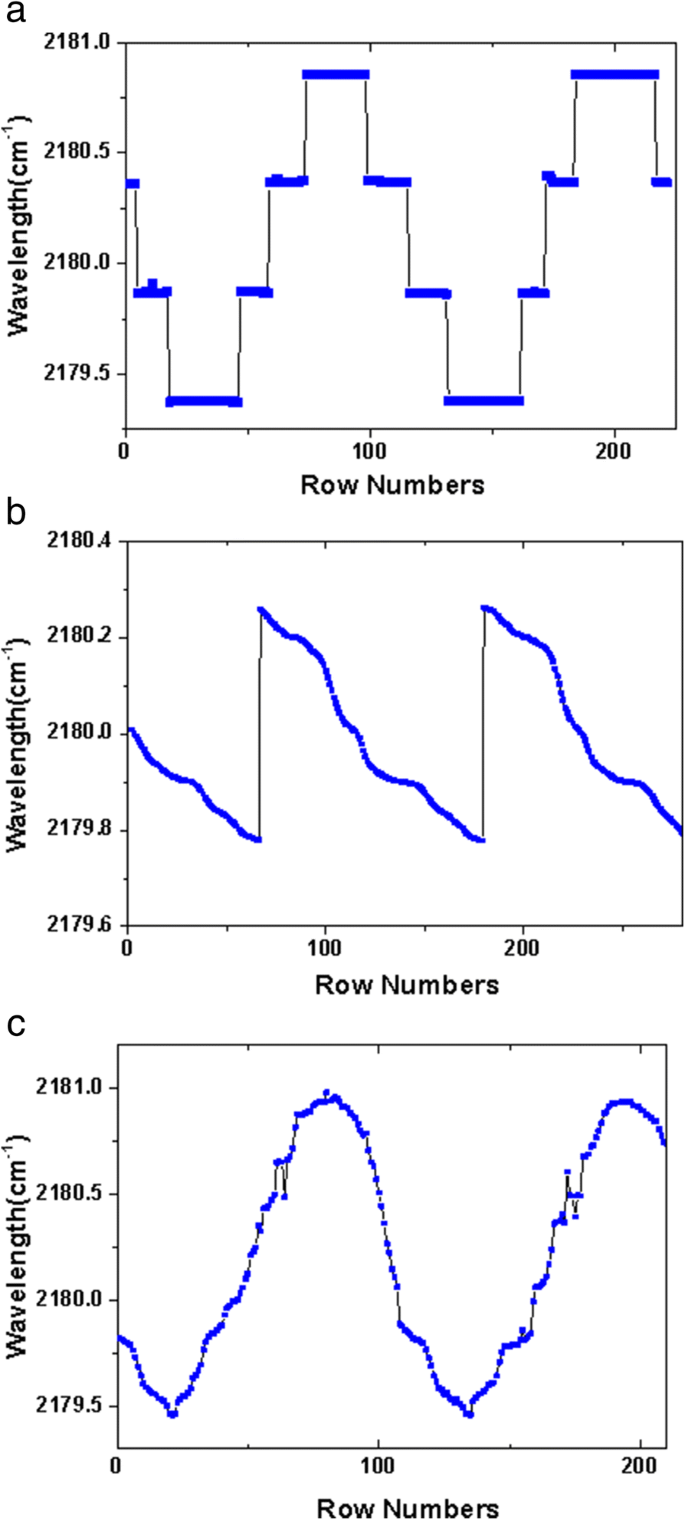

To probe spectral resolution, the galvanometer is slowed to 0.02 Hz for the laser spectrum analyzer (Bristol Model 771) to capture a full tuning cycle. Figure 5a reveals discrete mode hops of ~0.5 cm⁻¹, attributable to the FP cavity modes and imperfect AR coating. Adding a sawtooth current modulation (0.02 Hz, 40 mA) while fixing the galvanometer angle smooths the tuning curve, compensating for the mode hops as shown in Figure 5b. The combined tuning (Figure 5c) reduces mode‑hop spacing to below 0.2 cm⁻¹, confirming the system’s fine spectral resolution.

Conclusions

We have engineered a fast, swept‑wavelength EC‑QCL that delivers a 135 cm⁻¹ tuning range at 100 Hz, a CW threshold of 250 mA, and a peak output of 20.8 mW. Time‑resolved FTIR and laser spectrum analysis confirm a spectral resolution better than 0.2 cm⁻¹ when combined with sawtooth current modulation. The device’s low power consumption, rapid tuning, and high spectral fidelity position it as an attractive light source for trace‑gas sensing and other high‑resolution MIR applications.
