Designing Rugged Power Supplies for Harsh Industrial Environments

Designing Rugged Power Supplies for Harsh Industrial Environments

In industrial settings, power supplies must endure more than dust and humidity. They need to be robust, efficient, and reliable to keep critical equipment running under extreme conditions.

Applications that Demand Rugged Power

From CNC machining and welding to robotic assembly, many processes rely on internal power supplies that can tolerate voltage spikes, high EMI, and wide temperature swings. Smart transportation systems—traffic controllers, LED displays, and electronic signage—also require mission‑critical power modules that perform in adverse climates. Environmental monitoring stations, automated storage solutions, charging infrastructure, and battery management systems are other examples where rugged power is essential.

Key Challenges

Harsh environments expose power supplies to significant voltage variations, power surges, and even lightning strikes. Electromagnetic interference from nearby machinery can compromise performance. Low‑temperature start‑up, high‑humidity operation, and limited cooling space add further complexity. Failure to address these factors can result in component damage, reduced efficiency, and system downtime.

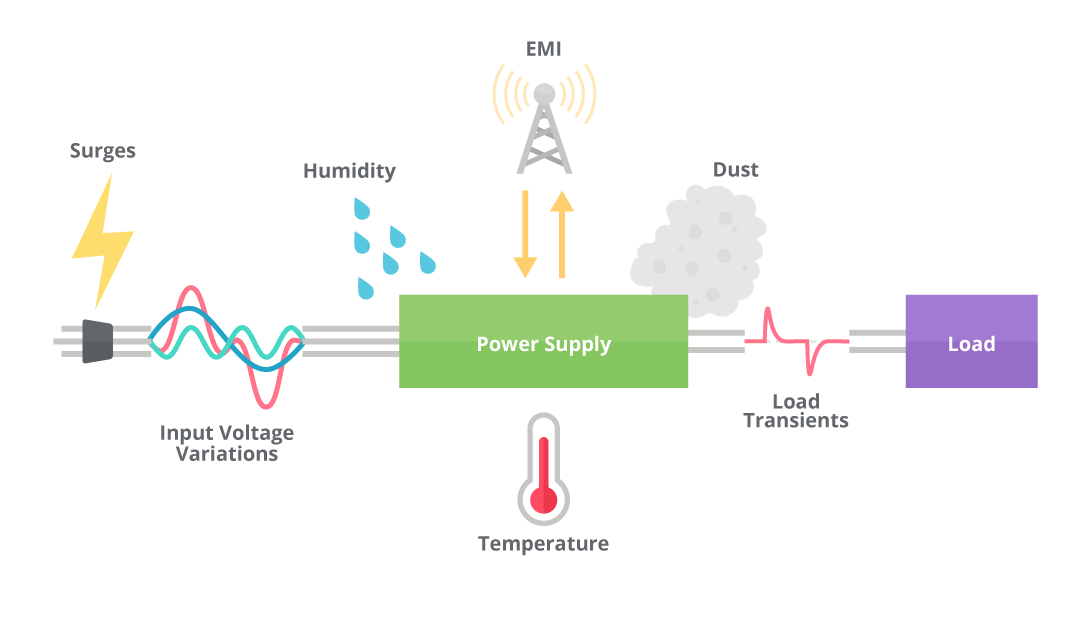

Figure 1. Harsh environmental factors for power supplies

Essential Characteristics of Rugged Power Supplies

A reliable rugged supply must provide a wide input voltage range, robust over‑voltage and surge protection, and excellent EMI immunity. The power supply should also maintain performance across an operating temperature range of –30 °C to 70 °C and tolerate humidity levels up to 90 % without condensation or corrosion. Compactness is important, but the enclosure must allow free‑air convection and be constructed from durable, galvanized aluminum or equivalent materials.

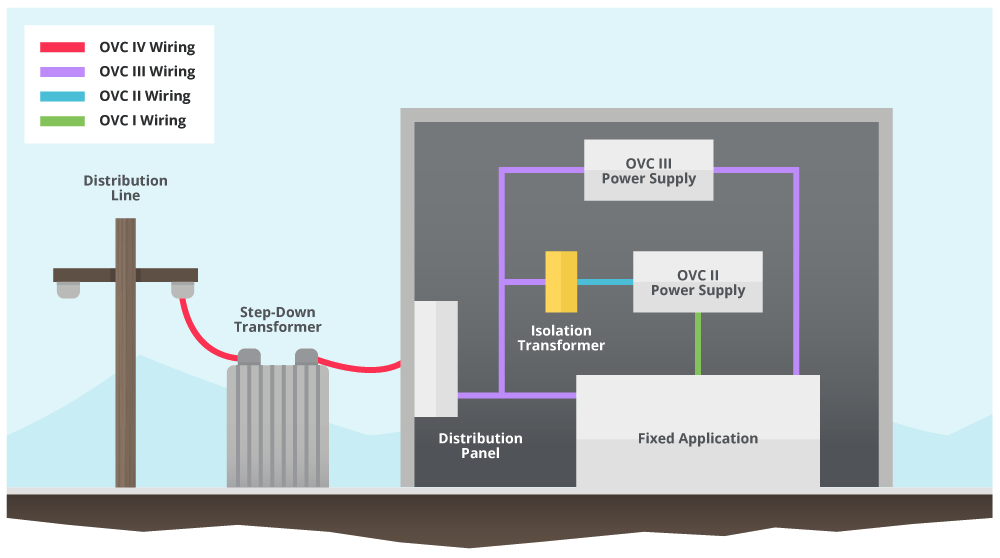

Figure 2 illustrates the over‑voltage categories that define the expected surge environment for each installation point.

Figure 2. Over‑voltage categories

Case Study: CUI VGS 100 W Rugged Power Supplies

The CUI VGS 100 W series delivers up to 110 W from a single AC‑DC output. Designed for industrial use, each unit features a low‑profile chassis (129 × 97 mm) with a 30 mm height and a galvanized aluminum enclosure that supports convection cooling.

Key specifications:

• Input voltage: 85 – 305 VAC (120 – 431 VDC)
• Over‑voltage category: III (suitable for protection panels, sockets, and monitoring equipment)
• Short‑circuit and output over‑voltage protection
• Operating temperature: –30 °C to 70 °C; maximum humidity 90 %
• Optional conformal coating for additional moisture and dust protection
• Efficiency: 85.5 % – 90.5 % (at 230 VAC)
• Standby power: 0.3 – 0.5 W (no‑load)

Certification:

UL/EN/IEC 62368, IEC/EN 61558, IEC/EN 60335, CISPR/EN55032 Class B, and IEC safety Class I with a grounded chassis.

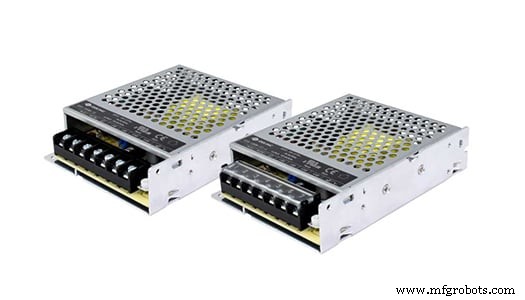

Figure 3. CUI VGS‑100W AC/DC power supply

These units combine rugged construction, advanced protection, and high efficiency to meet the demanding requirements of modern industrial applications.
