Detecting AC Electric Fields: A Hands‑On Guide to Electrostatic Coupling and Shielding

PARTS AND MATERIALS

• Audio detector equipped with headphones

CROSS-REFERENCES

Lessons In Electric Circuits, Volume 2, chapter 7: “Mixed‑Frequency AC Signals”

LEARNING OBJECTIVES

• Understand the influence of electrostatic (capacitive) coupling on AC signals.
• Identify and apply effective electrostatic shielding techniques.

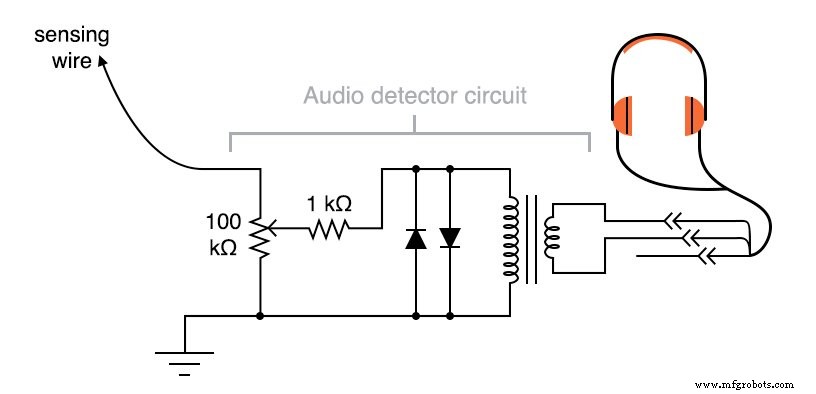

SCHEMATIC DIAGRAM

ILLUSTRATION

INSTRUCTIONS

Ground one lead of the audio detector to a metal object that is in electrical contact with the earth—any water pipe or faucet will do. Hold the other lead close to an electrical appliance or lamp fixture, but never make physical contact with the appliance or any internal conductors. The AC electric field produced by the appliance will be translated into a buzzing tone audible through the headphones.

Experiment by varying the position of the wire relative to a strong electric‑field source. Enhance capacitive coupling by attaching a small piece of aluminum foil to the wire’s tip. Test different materials as shields between the wire and the source to determine which provide the greatest attenuation. Compare the results with those obtained in a similar magnetic‑field experiment.

As with magnetic fields, the potential health impact of stray electric fields is a topic of ongoing debate among scientific and regulatory bodies.

RELATED WORKSHEET:

• Capacitance Worksheet
