Hand‑Actuated Switches: Types, Symbols, and Applications

Switches are essential electrical components that either make or break a circuit. When operated manually by hand contact, they are referred to as hand‑actuated switches.

Common Hand‑Actuated Switches

• Single‑Pole, Single‑Throw (SPST) – The simplest on/off switch. Its two terminals are either connected (normally closed) or disconnected (normally open). This configuration is widely used in power supplies, lighting controls, and safety interlocks.
• Double‑Pole, Double‑Throw (DPDT) – Effectively two SPST switches in one housing, allowing simultaneous control of two separate circuits. It is frequently employed in reversing motor drives and in applications requiring two-phase control.
• Push‑Button Switch – A momentary contact switch that can be normally open (NO) or normally closed (NC). Ideal for control panels where a quick, temporary connection is needed, such as emergency stop buttons or start‑stop controls.
• Single‑Pole, Double‑Throw (SPDT) – A changeover switch that performs a break‑before‑make operation. Common in signal routing and relay driver circuits.
• Four‑Pole, Double‑Throw (4PDT) – Four independent SPDT contacts housed together, enabling complex multi‑path switching. Used in advanced instrumentation and power distribution systems.

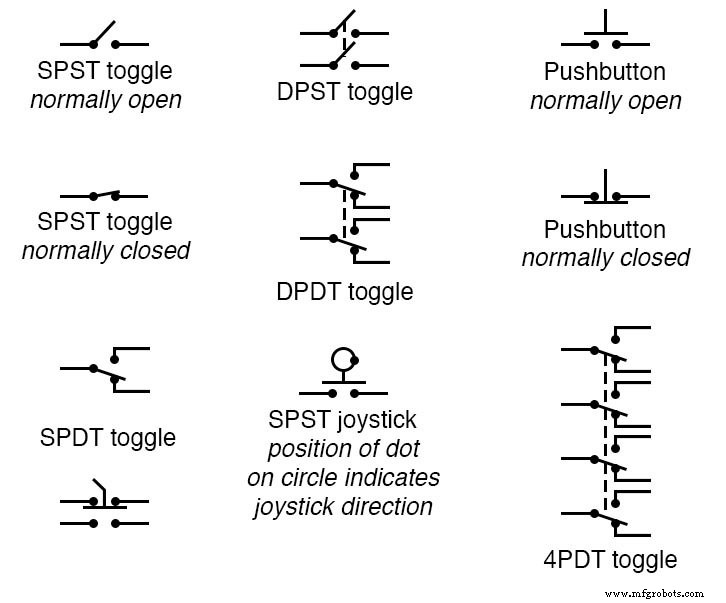

These symbols are standardized in IEC 60617 and are widely recognized by engineers worldwide. Referencing these symbols ensures clear communication in schematics and maintenance documentation.

Practical Applications

Hand‑actuated switches are integral in safety systems, industrial machinery, consumer electronics, and residential controls. Their manual operation provides an intuitive interface for users while maintaining high reliability.
