DIY All‑Band Arduino Radio with Si4730 (LW, MW, SW, FM) – Low‑Cost, Step‑by‑Step Build

Components and supplies

DIY All‑Band Arduino Radio with Si4730 (LW, MW, SW, FM) – Low‑Cost, Step‑by‑Step Build
Arduino Nano R3
×1
Si4730 cheap Radio module from Aliexpress
×1
DIY All‑Band Arduino Radio with Si4730 (LW, MW, SW, FM) – Low‑Cost, Step‑by‑Step Build

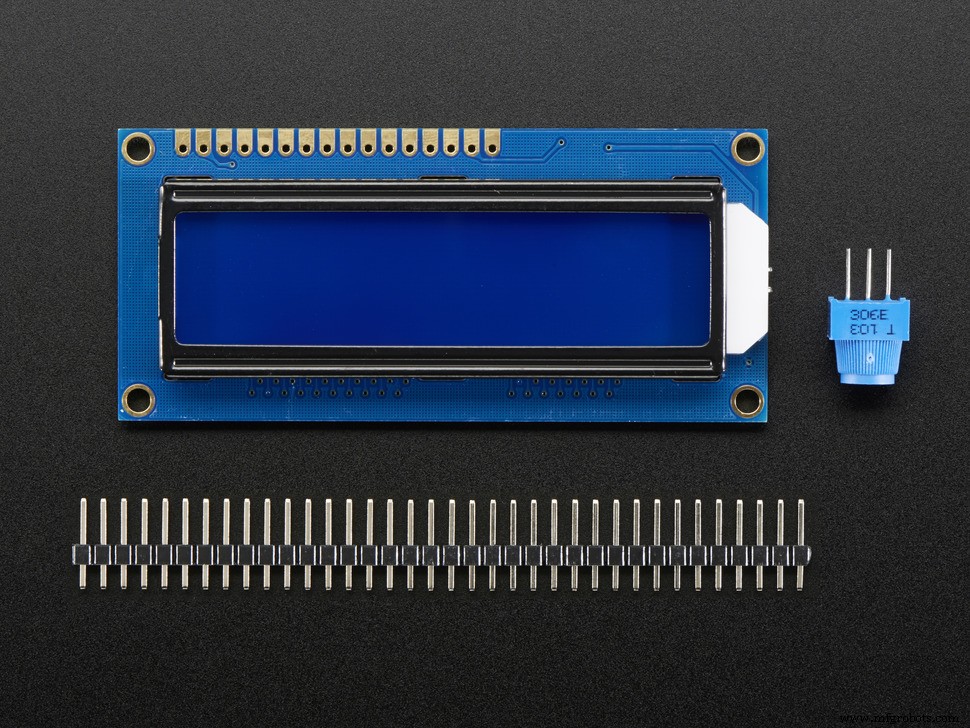

Adafruit Standard LCD - 16x2 White on Blue
×1
Ferite rod from old AM radio
×1
DIY All‑Band Arduino Radio with Si4730 (LW, MW, SW, FM) – Low‑Cost, Step‑by‑Step Build
Rotary Encoder with Push-Button
×1
D-class audio amplifier board 3+3W with potentiometer
×1

About this project

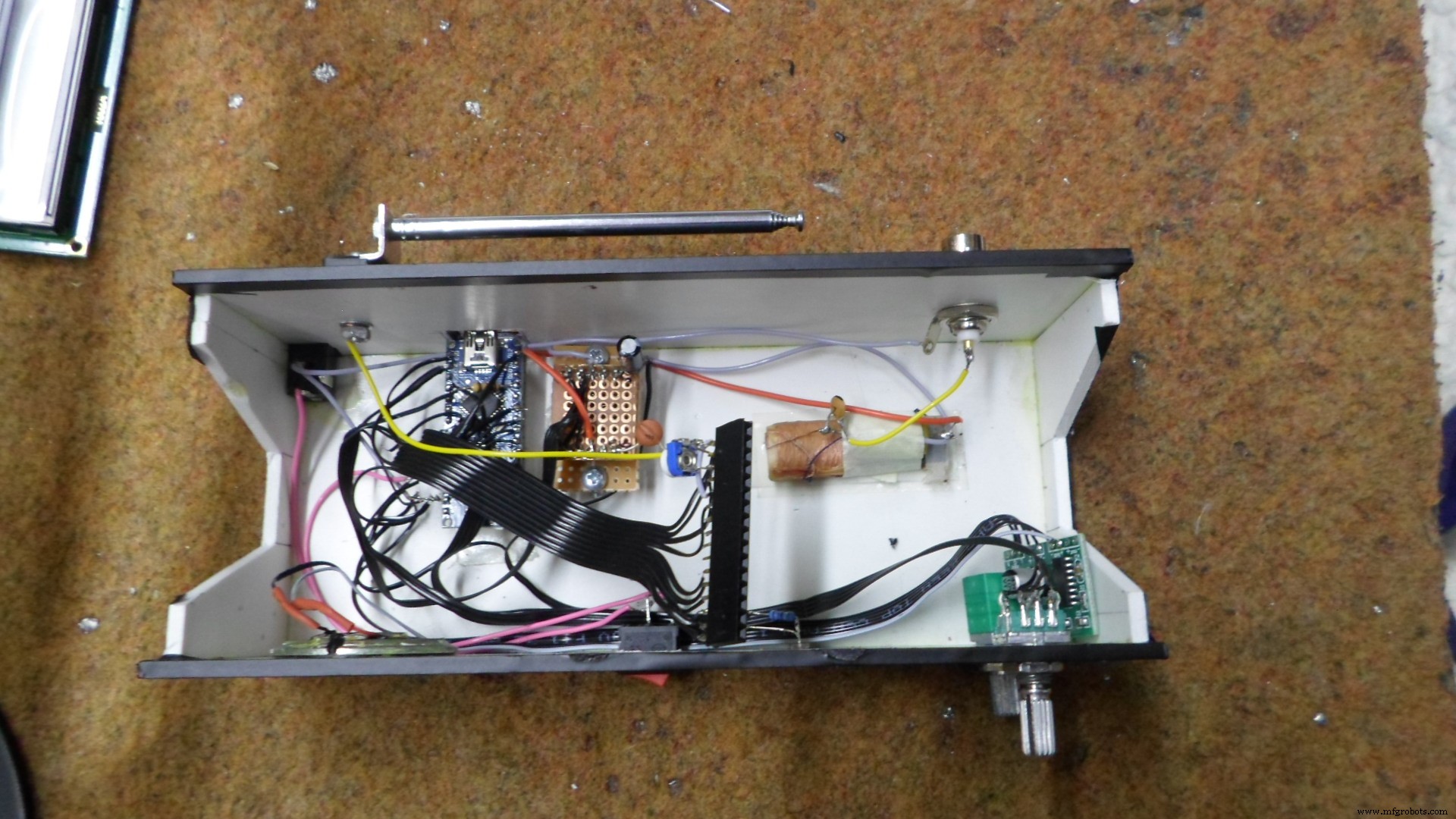

This is a continuation of the all-band receiver (https://www.youtube.com/watch?v=zPlVdLj5gFg), based on the SI4730-D60 radio module that can be purchased on aliexpress for only $ 2.

This inexpensive receiver is capable of receiving the entire radio broadband spectrum, from 200KHz up to 108MHz. If you are using a SI4735-D60 or SI4732-A10 based circuit, you can also use this sketch to add the SSB functionality. Otherwise the hardware is completely identical to the one in the previous video, only the color of the case has been changed to know that the new menu makes it completely different and more functional.

DIY All‑Band Arduino Radio with Si4730 (LW, MW, SW, FM) – Low‑Cost, Step‑by‑Step Build

The reason for this new video is the great new library created by Ricardo Lima Caratti, with support for this small but powerful receiver. Now the menu has changed completely and there are many new options. Exactly these options are presented throughout the video. In the examples contained in this library there is one named "Si47XX_02_for_Mirko_Pavleski_radio" which is the new sketch for this radio.

The author announces that there will be constant new improvements to the library, so it is advisable to download the latest version at github:

https://github.com/pu2clr/SI4735

Code

  • Code
CodeC/C++
No preview (download only).
Library
https://github.com/pu2clr/SI4735/tree/master/examples/SI47XX_02_for_Mirko_Pavleski_radio

Schematics

DIY All‑Band Arduino Radio with Si4730 (LW, MW, SW, FM) – Low‑Cost, Step‑by‑Step Build
