Arduino Temperature Sensor Project: Read, Convert, and Display Fahrenheit

Components and supplies

Arduino UNO

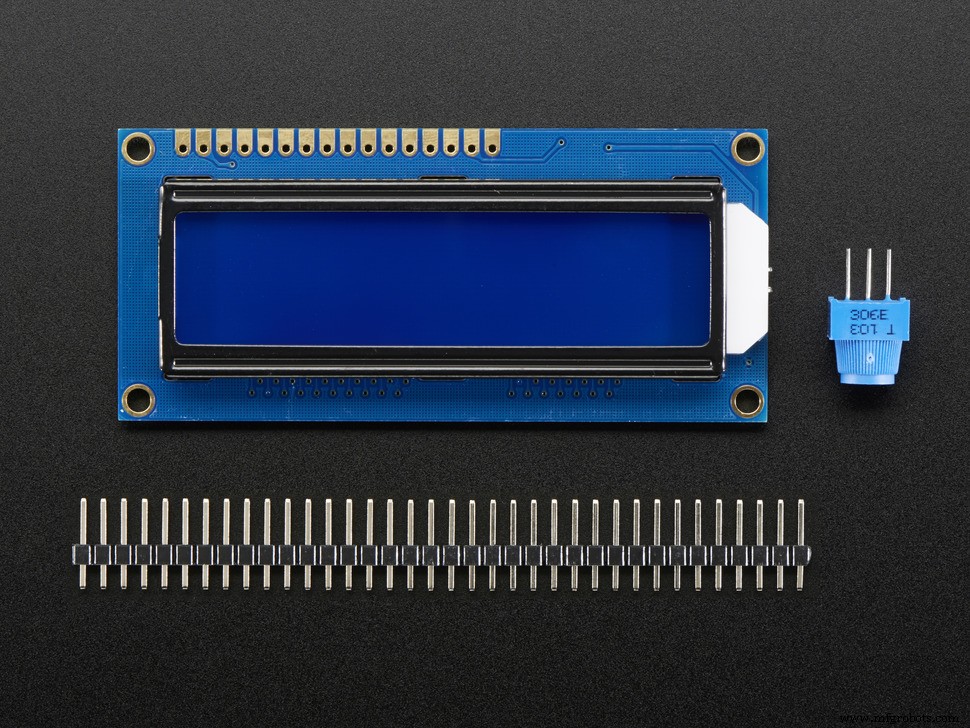

Adafruit Standard LCD - 16x2 White on Blue

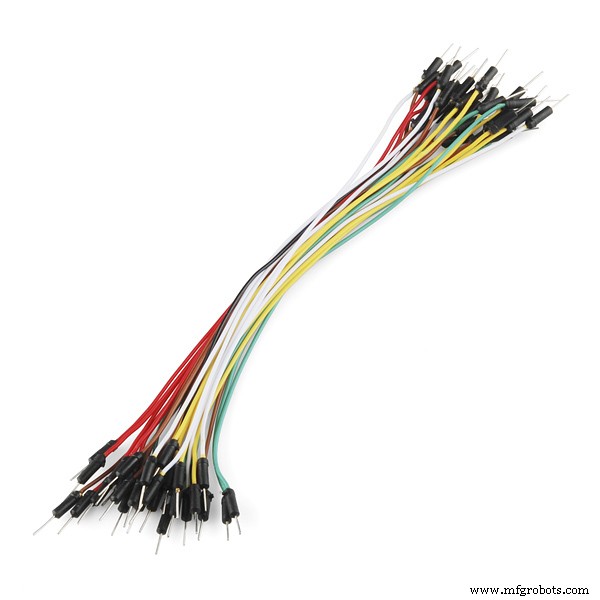

Jumper wires (generic)

Apps and online services

Arduino IDE

About this project

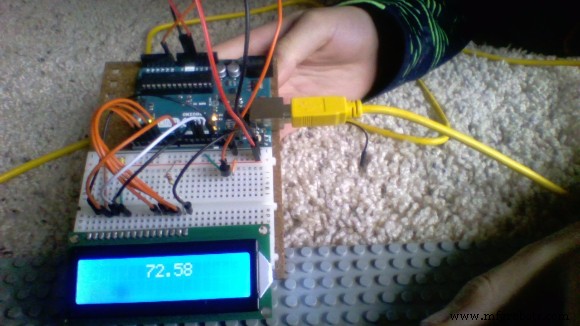

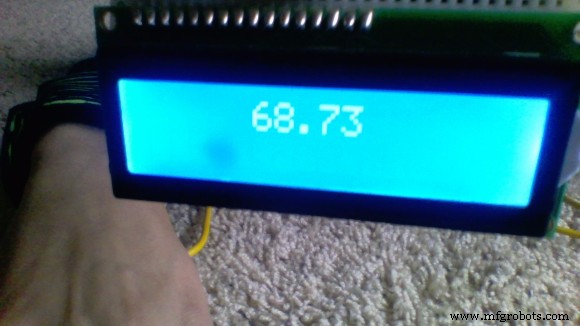

This project senses the temperature around it, then converts that to volts, volts to

celsius, celsius to fahrenheit, then prints fahrenheit.

Code

temp

tempArduino

#include <LiquidCrystal.h>

LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

const int tmp = A0;
const int p = 8;

void setup() {
  lcd.begin(16, 2);
  Serial.begin(9600);
  pinMode(p, OUTPUT);
  // put your setup code here, to run once:

}

void loop() {
  digitalWrite(p,LOW);
  int Temp = analogRead(tmp);
  float volts = (Temp / 965.0) * 5;
  float c = (volts - .5) * 100;
  float f = (c * 9 / 5 + 32);
  Serial.println(f);
  lcd.setCursor(5, 0);
  lcd.print(f);
  delay(3000);
  // put your main code here, to run repeatedly:

}

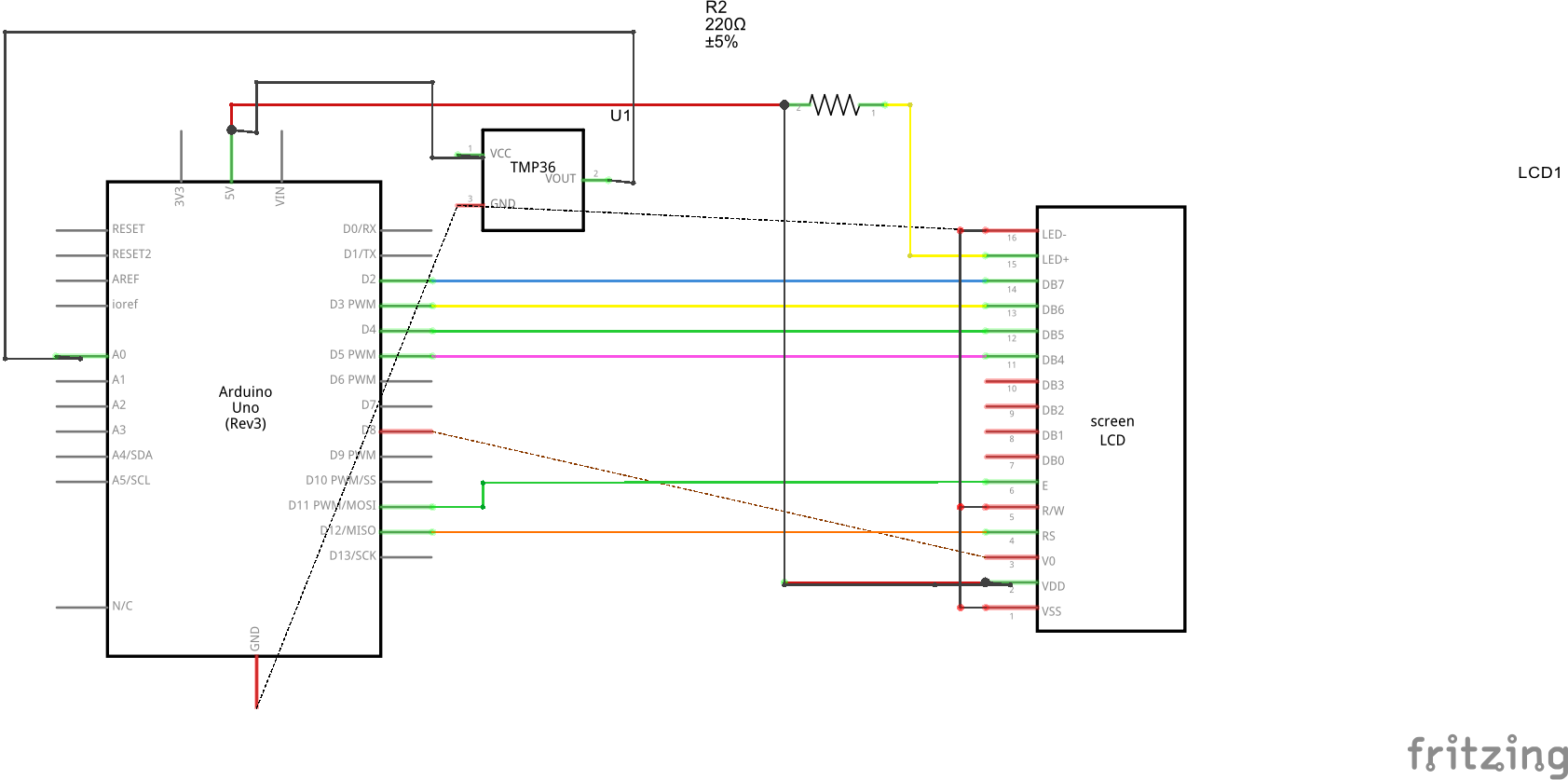

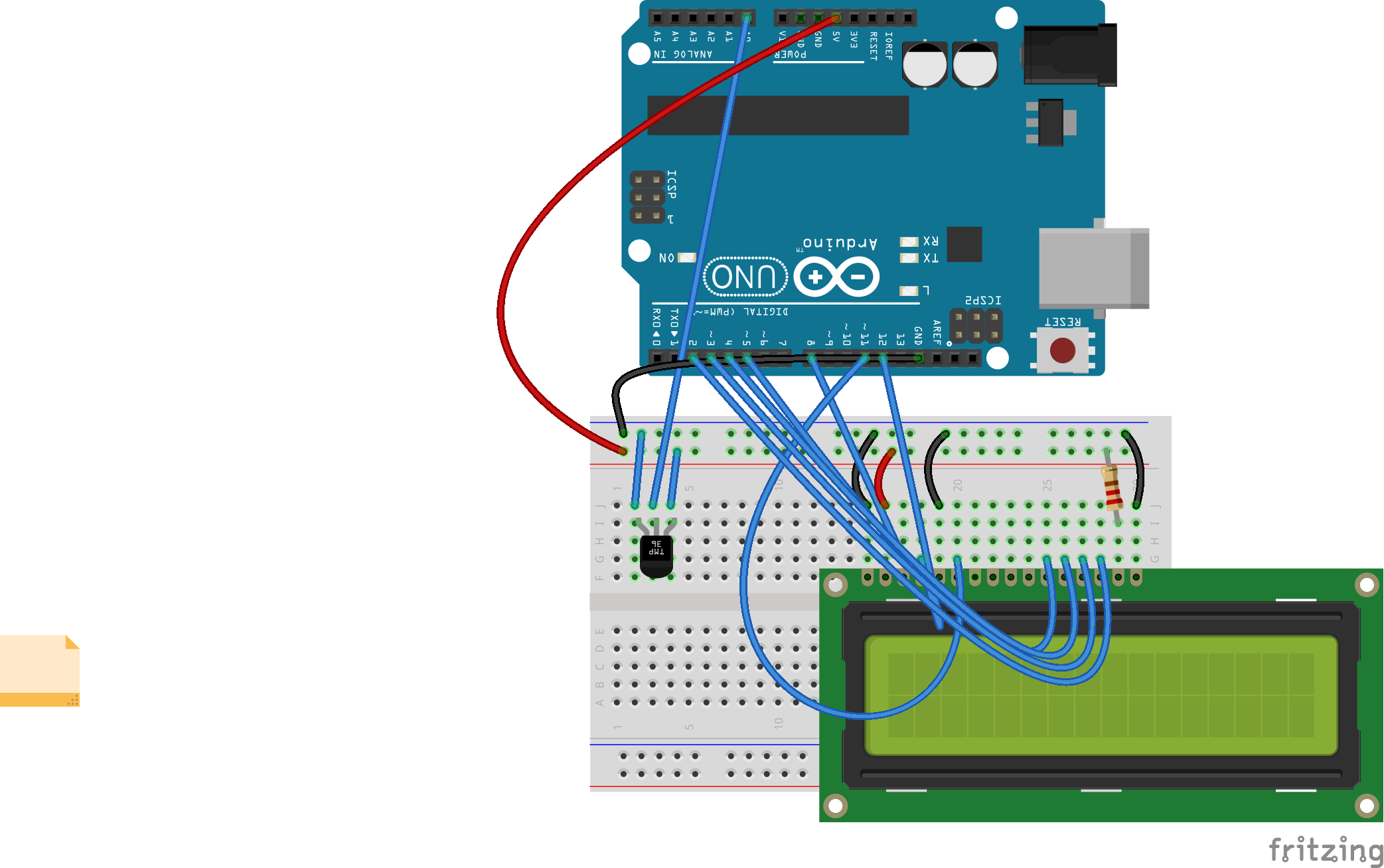

Schematics

temp.fzz
