Master Arduino & MATLAB Integration: Step‑by‑Step Serial Communication Tutorial

Welcome to the seventh Arduino Tutorial from our Arduino Tutorial Series. In this tutorial we will learn how to connect Arduino to Matlab and how are they communicatng using the Serial Port. Also we will make an example where we will use Matlab to control the Arduino Board.

This is a Step by Step Video Tutorial which is easy to be followed. Also, below the video you can find the parts needed for this tutorial and the Source Codes of the Examples in the video.

Components needed for this Arduino Tutorial

• Arduino Board ……………………………
• Breadboard and Jump Wires ………
• LED ……………………………………………
• 220 Ohm Resistor ……………………..
• Push Button ………………………………

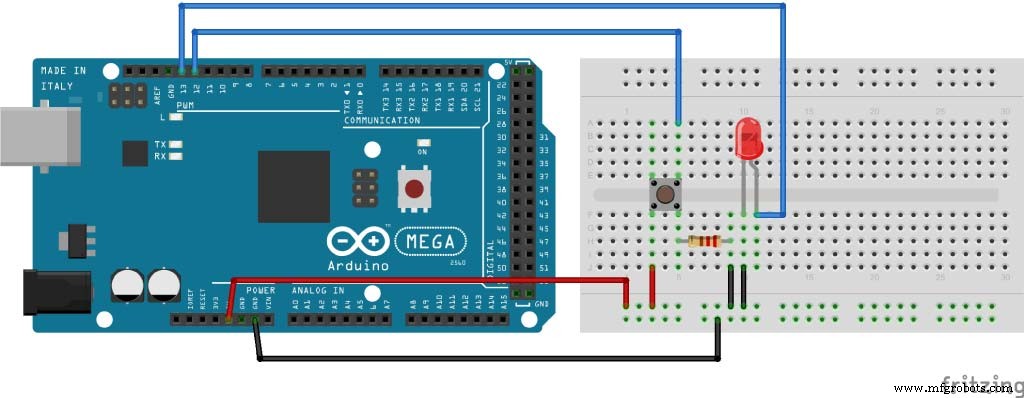

Circuit schematic of the examples

 Matlab Code

clear a;
a = arduino('COM4');
a.pinMode(8, 'OUTPUT');
a.pinMode(12, 'INPUT');

tic
while (toc<10)

    b=a.digitalRead(12);
    if ( b==true)
        a.digitalWrite(8,1);
    else
        a.digitalWrite(8,0);
    end
endCode language: Arduino (arduino)
