The Three‑Barrier Solution: Enhancing Bearing Longevity in Harsh Environments

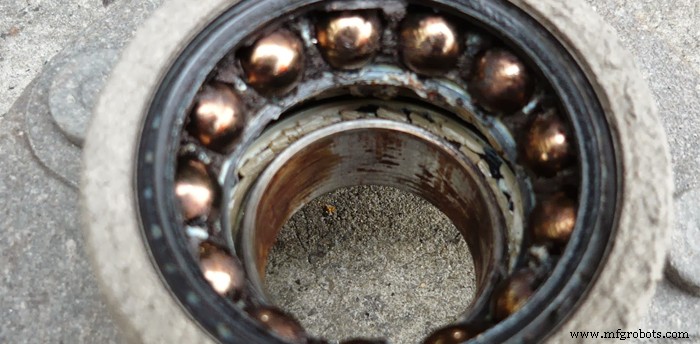

A heavily contaminated bearing may appear unremarkable, yet for maintenance professionals it signals a critical issue—34% of bearing failures are driven by contamination.

Bearings operate under extreme conditions across mining, mineral processing, cement, pulp & paper, metals, and other heavy‑process industries. Contaminants range from steam, moisture, corrosive media to fine dust or heavy rock particles, making robust sealing essential.

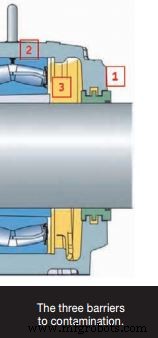

In harsh environments where bearing lifespans are short and maintenance costs high, the “three‑barrier solution” delivers reliable protection. The approach combines:

• Labyrinth seals as the primary barrier
• Grease‑filled housing cavities as a secondary barrier
• Sealed bearing seals as the final barrier

Key best practices:

• Ensure the primary labyrinth seal is grease‑purgeable so that relubrication can remove old grease and trapped contaminants.
• Fill the housing cavity 70–80% with grease to establish an effective secondary barrier.
• Use an environmentally friendly grease in the housing—its purge‑out during relubrication reduces spillage and disposal impacts.
• Select a sealed spherical roller bearing for heavy radial and axial loads; its non‑separable design integrates the final seal, eliminating contamination introduced during installation or relubrication.

Benefits of this configuration include:

• Reduced contamination and extended bearing life, as reflected in higher contamination factors (0.6–0.9) versus open bearings (0.1–0.4).
• Freedom to choose grease in the housing independent of bearing operating viscosity, yielding immediate savings on grease consumption.
• Potential bearing downsizing, thanks to improved contamination control and the life‑modification factors in ISO 281:1990/Amd 2:2000.

When implementing the three‑barrier solution, carefully evaluate each component. If uncertainty arises, consult your bearing distributor or manufacturer for tailored guidance.

Stay clean, live long, and prosper.

MRO John Melanson, Engineering Manager, SKF Canada

Find the original article on MRO’s website.
