Stuttgart’s First CFRP-Hung Railway Bridge Unveiled Over A8 Motorway

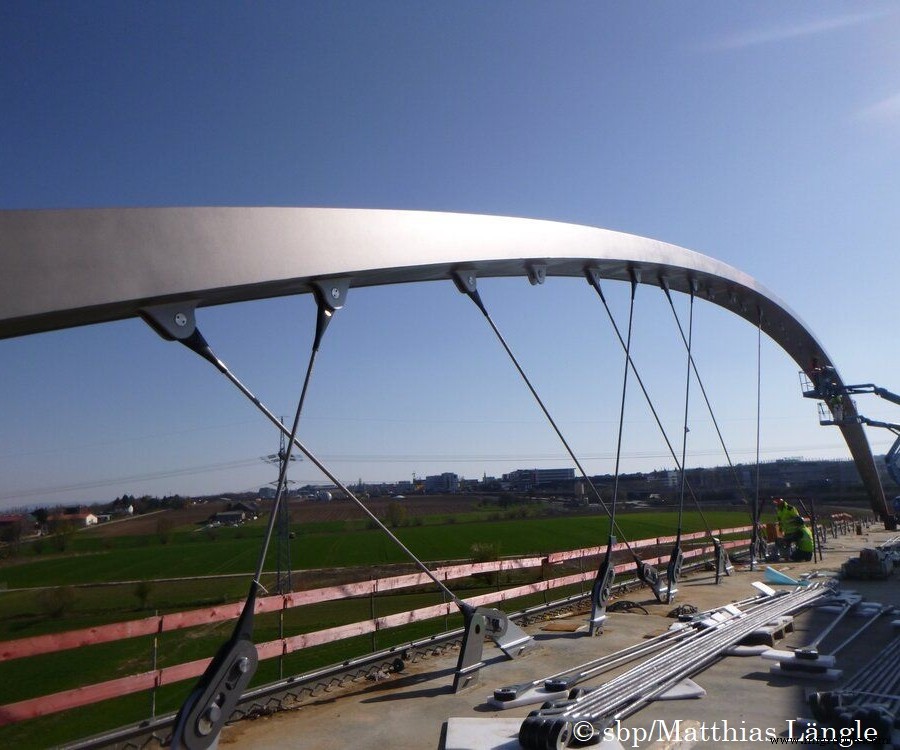

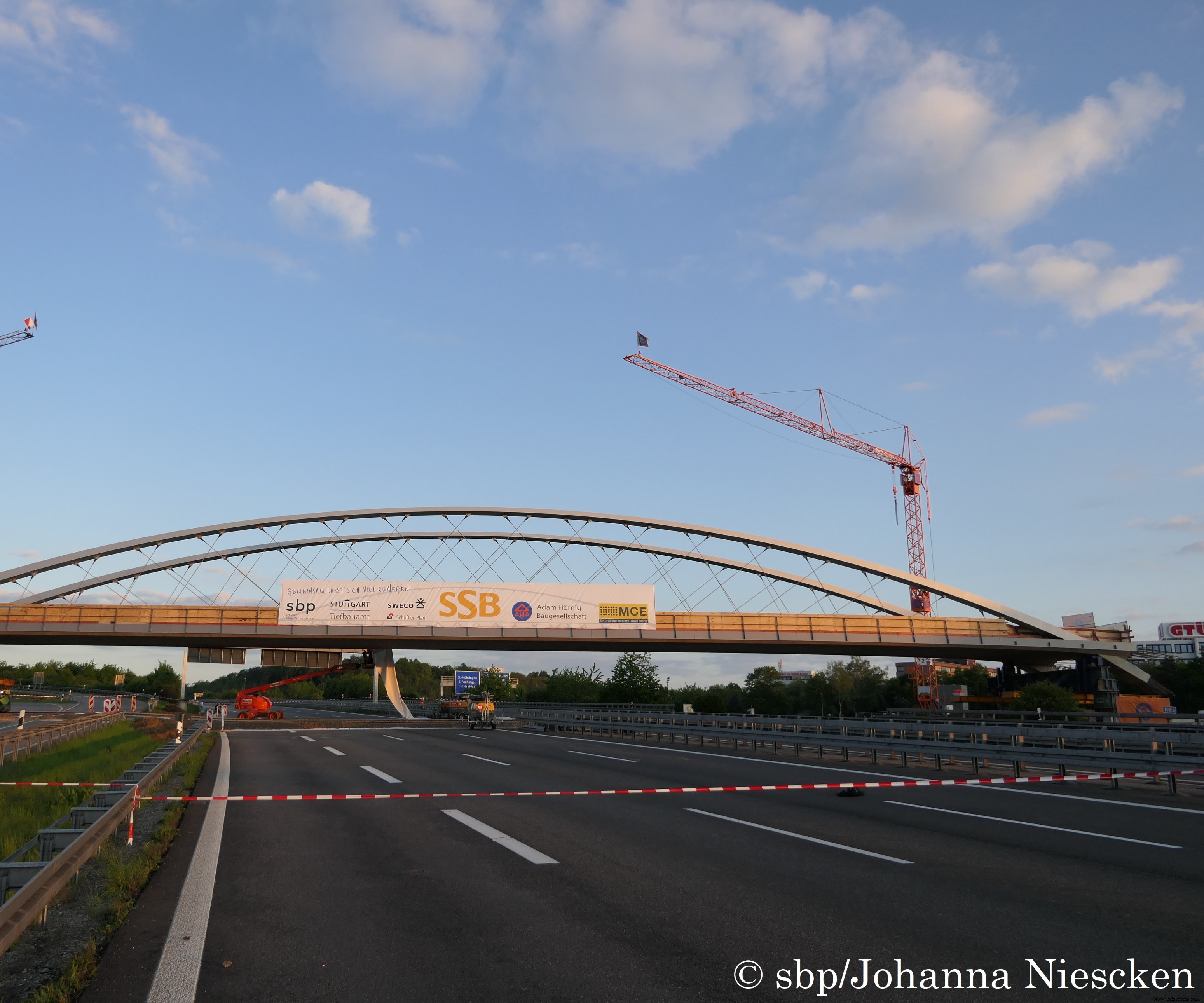

The Stuttgart Stadtbahn bridge, installed over the A8 motorway on May 3 in Germany, is the world's first network arch bridge that hangs entirely on tension elements made of carbon fiber-reinforced plastic (CFRP). The 72 hangers are produced with Teijin (Wuppertal, Germany) carbon fiber, Tenax, by Carbo-Link AG (Fehraltorf, Switzerland), and differs from the original plan for a conventional steel- bridge.

In the end, CFRP cables had more advantages than steel. The carbon fiber cables were cheaper, enabled the crossing of the eight freeway lanes without supporting pillars and ideally fulfilled the requirements for hangers of network arch bridges: the cross-sectional area of the CFRP cables was only a quarter compared to the steel solution. Further, due to their light weight, the 72 CFRP tension elements could be installed without a crane and with only three construction workers.

Incorporation of CFRP in the 127-meter-long railway bridge also pioneers sustainability. The EMPA (Federal Material Testing and Research Institute, Switzerland) proved that CO₂ emissions during the carbon fiber manufacturing are one-third of steel, and the energy consumption is more than halved.

Teijin is accelerating the development of applications for carbon fiber in the architecture and construction industries, and intends to further strengthen its position as the world's leading provider of cost-effective and sustainable composite solutions. Dr. Bernd Wohlmann, president of Teijin Carbon Europe GmbH says, “The Stuttgart railway bridge as the first network arch bridge solely made of CFRP cables should be groundbreaking for other bridges and constructions comprising CFRP. We are only at the beginning of manifold possibilities."
