5 Key Applications of Beryllium Copper Alloys

5 Key Applications of Beryllium Copper Alloys

Beryllium copper alloys are produced by alloying copper with 1–2 % beryllium. The resulting material—often called the “king of elasticity”—exhibits twice the tensile strength of conventional copper alloys while retaining excellent thermal and electrical conductivity, non‑magnetism, and a spark‑free impact profile.

Because of these exceptional properties, beryllium copper finds use in a wide range of high‑performance components:

1. High‑Elasticity Switches, Reeds, and Contact Elements

Over 60 % of beryllium copper production is dedicated to precision elastic components such as switch contacts, reed switches, bellows, and diaphragms used across electronics, instrumentation, and aerospace.

2. Wear‑Resistant Bearings and Conductive Wires

Its superior wear resistance makes it ideal for sliding bearings in computers and aircraft. For example, American Airlines replaced conventional copper bearings with beryllium copper in its jetliners, boosting service life from 8 000 h to 28 000 h. Beryllium copper is also the material of choice for the high‑strength, corrosion‑resistant wires that run the traction systems of electric locomotives and trams.

3. Spark‑Free Tools for Hazardous Environments

In petroleum and chemical plants, the spark‑free nature of beryllium copper allows the manufacture of hand tools, wrenches, and valve‑handle components that meet explosion‑proof certification requirements.

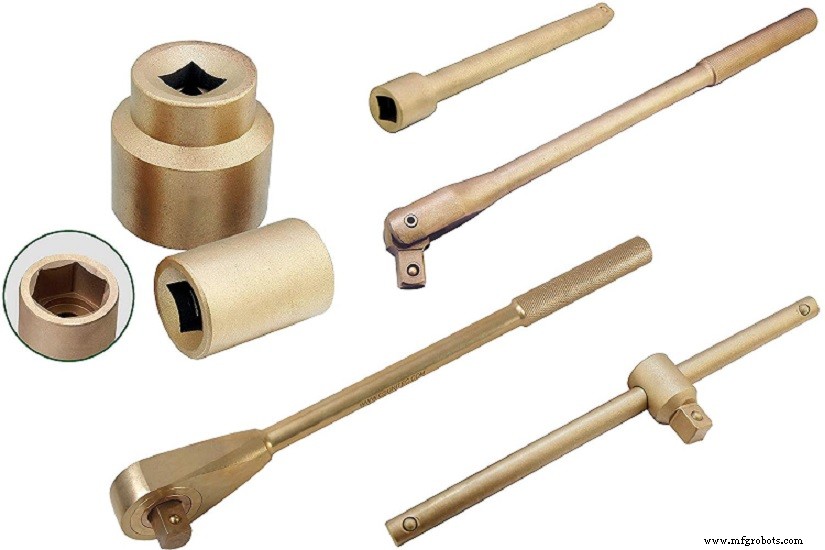

Applications of Beryllium Copper Alloys in Explosion‑Proof Tool

4. Precision Molds and Casting Tools

Its high hardness and thermal conductivity enable the production of ultra‑precise molds for plastic injection, pressure casting, and precision metal casting. The smooth finish, clear pattern fidelity, and reusability of beryllium copper molds reduce tooling costs and shorten production cycles.

5. High‑Conductivity Electrodes and Sensor Elements

Alloys such as Cu‑Ni‑Be and Co‑Cu‑Be deliver up to 50 % IACS while maintaining high strength. These materials are employed as contact electrodes in TIG welding machines and as highly conductive elastic elements in advanced electronic sensors, expanding into new application domains.

More About Beryllium Copper Alloys

Beryllium copper is categorized by its beryllium content: 0.2–0.6 % for high‑conductivity grades and 1.6–2.0 % for high‑strength grades. Brush Wellman, the world’s largest manufacturer, supplies grades that meet international standards and are widely adopted in critical industries.

Conclusion

We hope this guide clarifies the versatile roles of beryllium copper alloys. For deeper insights into beryllium or other refractory metals, visit Advanced Refractory Metals (ARM), headquartered in Lake Forest, California, which supplies high‑quality tungsten, molybdenum, tantalum, rhenium, titanium, and zirconium at competitive prices.
