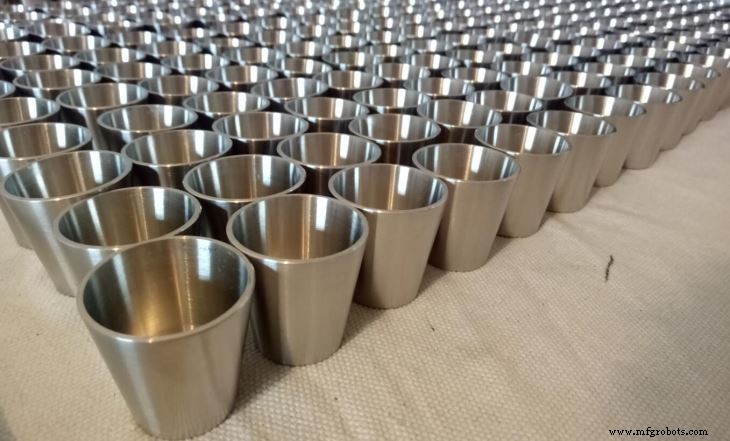

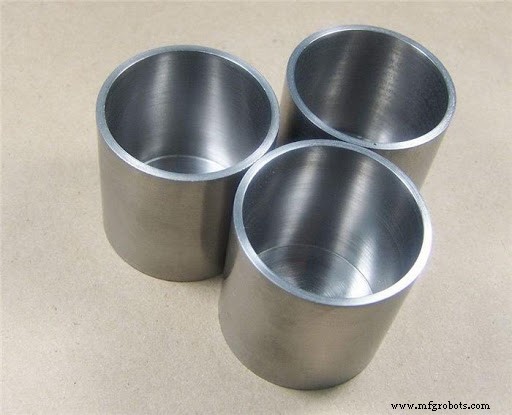

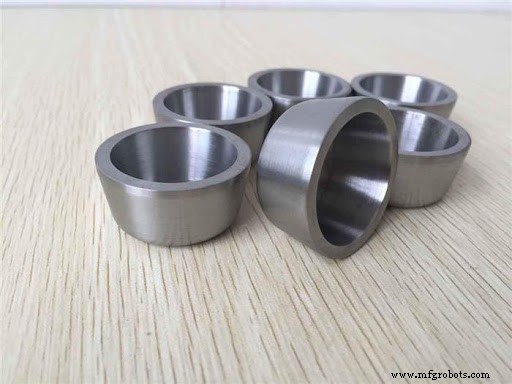

Tungsten Crucibles for Rare‑Earth Melting Applications

Tungsten is a hard, refractory metal renowned for its exceptionally high melting point, superior temperature stability, low thermal expansion, and excellent chemical resistance. These properties make tungsten crucibles the preferred choice for sapphire crystal growth and rare‑earth metal smelting.

Historically, tantalum and molybdenum crucibles introduced contamination levels of up to 1000 × 10⁻⁶, compromising product purity and limiting furnace cycles to only 30–80 operations. Recent domestic trials of tungsten crucibles have reduced contamination to the same 1000 × 10⁻⁶ threshold while extending service life to 400–500 furnace cycles—enabling continuous operation for 5–6 months at 12 smelts per day.

Common Challenges with Tungsten Crucibles

Despite their advantages, tungsten crucibles can suffer premature failure if improperly handled. Their thin walls are vulnerable to mechanical damage during welding, inadequate heat treatment, and rapid temperature changes, leading to corrosion of weld joints and slag accumulation.

SAM’s Process Improvements

Standford Advanced Materials (SAM) has refined the manufacturing workflow to mitigate these issues:

• Oven Treatment – 2 hours at 11–14 kW to stabilize the crucible structure.
• Controlled Melting – Initial power is reduced to prevent rapid temperature spikes that could cause cracking. Materials are added gently to avoid impact damage.
• Immediate Clearing – After each melt, the inner wall and bottom are cleaned with specialized tools, removing refractory slag and preserving heating efficiency.
• Managed Cooling – The furnace opening is sealed and the induction coil water valve is closed to avoid thermal shock and cracking.
• Residue Removal – A dedicated iron melt at 1450–1480 °C is used to flush out residual slag, ensuring the crucible remains free of buildup that would otherwise impede subsequent melts.

Resulting Performance

Applying these steps, each tungsten crucible achieves 400–500 furnace cycles, cutting material costs by roughly 30% and dramatically extending operational life.
