3 Key Factors Influencing Tungsten Powder Quality

3 Key Factors Influencing Tungsten Powder Quality

High‑performance tungsten powder is defined by two core attributes: particle size and purity. While the growth of tungsten particles relies on volatile deposition during reduction, several variables can tip the balance toward superior or inferior quality. Understanding these variables is essential for manufacturers seeking consistency and performance.

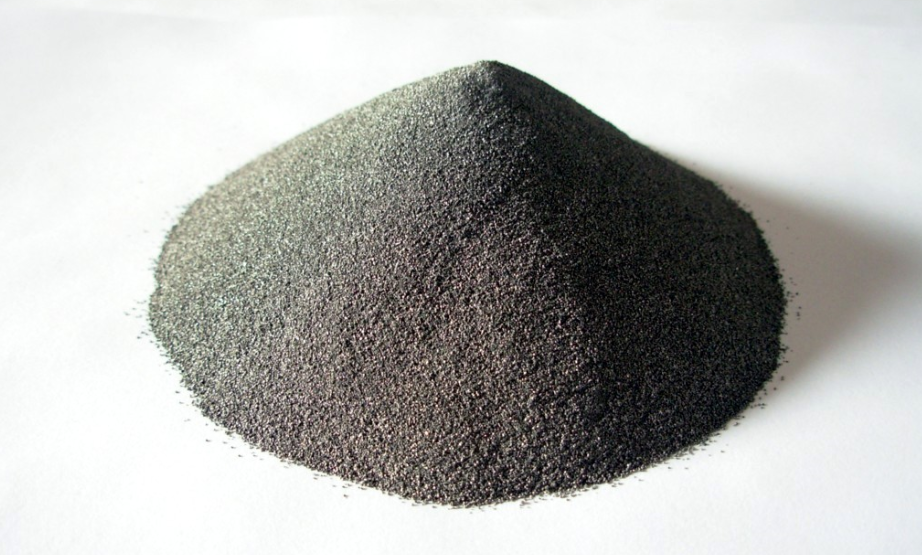

Quality of Tungsten Powder

Raw Materials

The choice of precursor material—blue or violet tungsten oxide—has a profound impact on the final product. Violet tungsten, with its unique porous structure, excels at removing water vapor from the reducing atmosphere, yielding fine, uniform particles and enhancing throughput.

Because violet tungsten can be reduced in dry hydrogen without forming an intermediate tungsten dioxide phase, it offers a cleaner pathway to ultrafine powder. Careful control of the reduction environment prevents unwanted tungsten dioxide agglomerates.

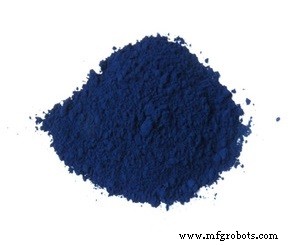

Purple And Blue Tungsten Oxide Powder

Hydrogen Flow Dynamics

Particle size is also governed by the hydrogen flow rate, direction, and moisture content. A lower airflow combined with higher humidity promotes finer powders. Industrial practice typically employs reverse hydrogen flow—pushing hydrogen against the material feed—to optimize reduction kinetics.

Reduction Process Variables

Temperature, feed speed, and material thickness are the main levers in the reduction stage:

• Temperature: Too low and reduction stalls; too high and particles grow.
• Feed speed: Rapid movement can push material into hotter zones prematurely, increasing particle size and oxygen content.
• Thickness: Thinner sheets reduce particle size but lower yield.

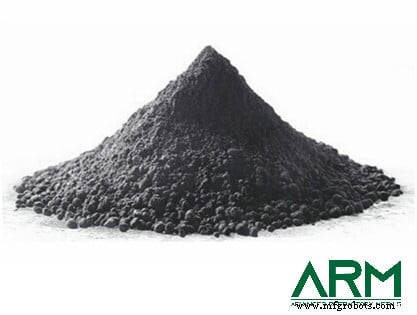

W Tungsten Powder

Conclusion

By carefully selecting raw materials, managing hydrogen flow, and fine‑tuning reduction parameters, manufacturers can consistently produce high‑quality tungsten powder that meets demanding industrial specifications.
