Common Causes of Molybdenum Wire Breakage During Wire Cutting

Wire cutting professionals routinely encounter premature breakage of molybdenum wires. Understanding the root causes can help prevent costly downtime and maintain production quality.

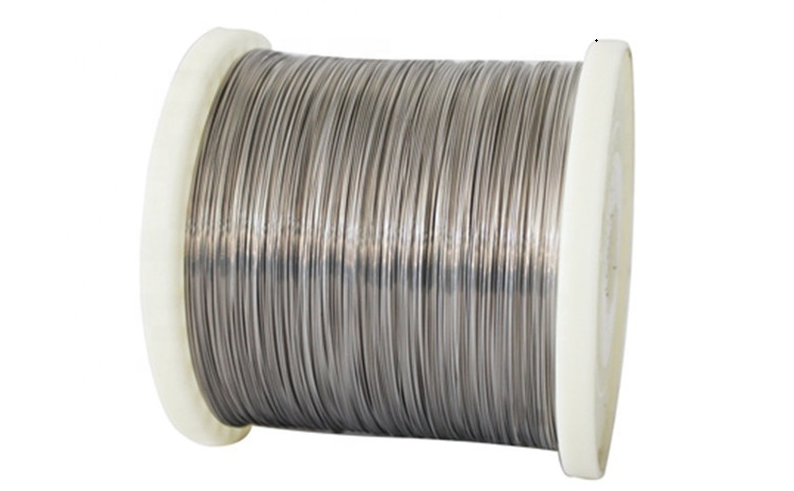

Molybdenum Wires

Molybdenum Wire Performance in Wire Cutting

Under typical operating conditions, a molybdenum wire loses roughly 0.001–0.02 mm of diameter per 10,000 mm² of cut surface. Exceeding this loss or reaching the end of the wire’s service life necessitates timely replacement to avoid process interruptions.

Proper tension is critical. A wire that is too tight is prone to snapping, while a loose wire elongates and can short‑out the key. Regular tension checks and adjustments keep the wire within optimal limits.

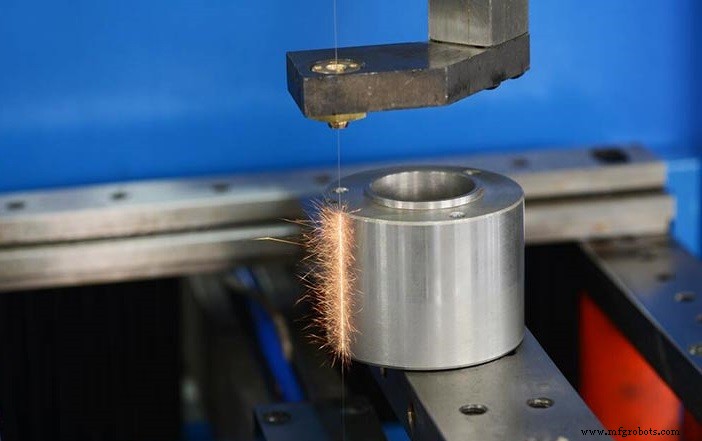

Wire Cutting

Machine Mechanics That Influence Breakage

The conductive block frequently presses or lifts the molybdenum wire. Prolonged contact creates grooves in the block, which in turn shear the wire. Periodic rotation or replacement of the block mitigates this wear.

Guiding the wire requires a precisely machined guide wheel. Any axial or radial run‑out—often introduced by worn bearings—disturbs wire alignment, increasing stress and the likelihood of fracture. Ensuring a well‑aligned guide system is essential for stable cutting.

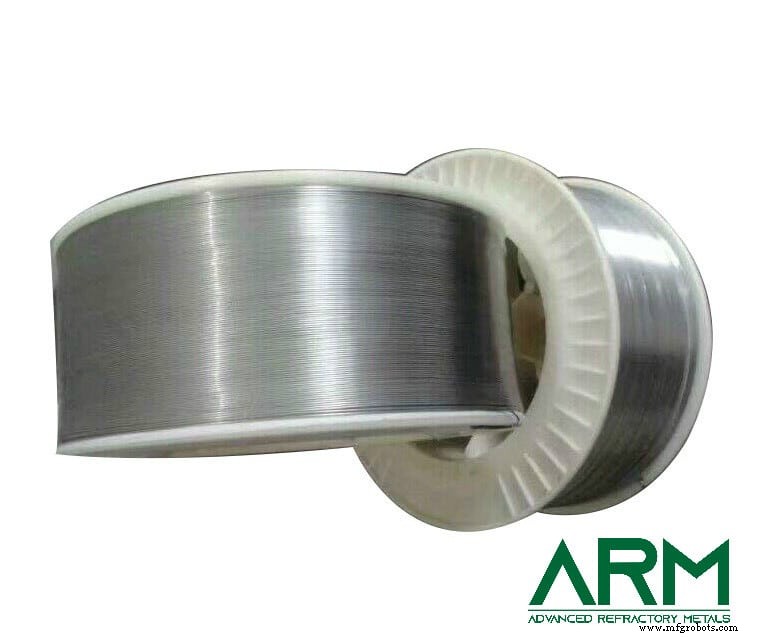

Molybdenum Wires

Cutting Parameter Selection

Choosing appropriate cutting parameters—feed rate, speed, and depth—directly impacts wire loss. Excessive loss accelerates breakage. Operators typically rely on experience, but modern systems use intelligent algorithms such as back‑propagation neural networks to optimize parameters for specific parts, materials, and tolerances.

Conclusion

By addressing tension, machine mechanics, and parameter selection, manufacturers can significantly reduce molybdenum wire breakage during wire cutting. For more detailed insights into molybdenum wires and other refractory metals, visit Advanced Refractory Metals (ARM).
