Build a Simple Obstacle Sensor with Arduino – Easy IR LED & Photodiode Tutorial

Apps and online services

Arduino IDE

About this project

Step 1: Gather Stuff

Stuff you are gonna need:

• Arduino

• 150 ohms resistor

• 3k ohms resistor

• IR LED

• Photodiode

• jumpers

• breadboard

• LEDs

Step 2: Assemble

• IR LED Anode => 150 ohms resistor => 5v

• IR Cathode => GND

• PhotoDiode Anode => GND

• PhotoDiode Cathode => 3k ohms resistor => D2

• PhotoDiode Cathode => A0

• Green LED => D13

• Red LED => D12

Step 3 Upload The Code:

Upload the code given. See my other projects:

Thank You!

Support:

Please support me by Going to Instructables and voting my Work. Without your work I can't keep on making stuff.

Vote For Me!

https://www.instructables.com/id/How-to-Make-Remote-Controlled-Bulb-With-Arduino/

https://www.instructables.com/id/How-to-Make-a-Parabolic-Microphone-With-an-Old-TV-/

https://www.instructables.com/id/How-to-Make-Secret-Drawer-Alarm/

Code

• Code

CodeArduino

int photoDiode=2;
int GreenLed=13;
int senRead=0;
int SenseRate=905;
 void setup()
 {
  pinMode(photoDiode,OUTPUT);
  pinMode(GreenLed,OUTPUT);
  pinMode(12,OUTPUT);
  digitalWrite(photoDiode,HIGH);
  digitalWrite(GreenLed,LOW);
  Serial.begin(9600);
 }
 void loop()
 {
  int val=analogRead(senRead);
  Serial.println(val);
  if(val <= SenseRate)
  {
   digitalWrite(12,HIGH);
   digitalWrite(GreenLed,LOW);
   delay(20);
  }
  else if(val > SenseRate)
  {
   digitalWrite(12,LOW);
   digitalWrite(GreenLed,HIGH);
   delay(20);
  }
 }

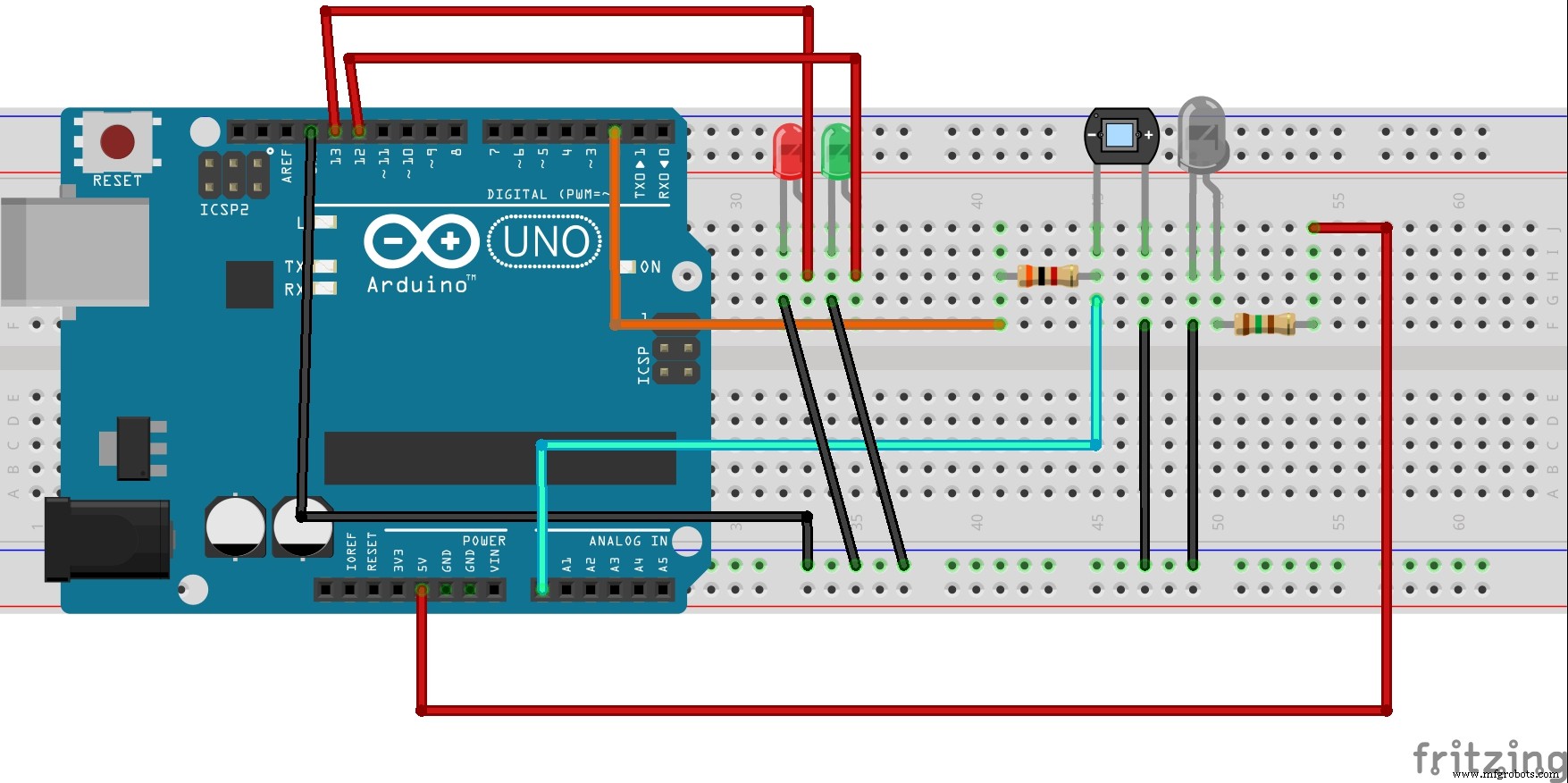

Schematics
