Sound-Activated 8-LED Light Display

Apps and online services

Arduino IDE

About this project

So as a beginner I have practiced with the sound sensor and LED. After some practice, I decided to create an 8x LED system with a sound detector. It could be an interesting project for beginners like me.

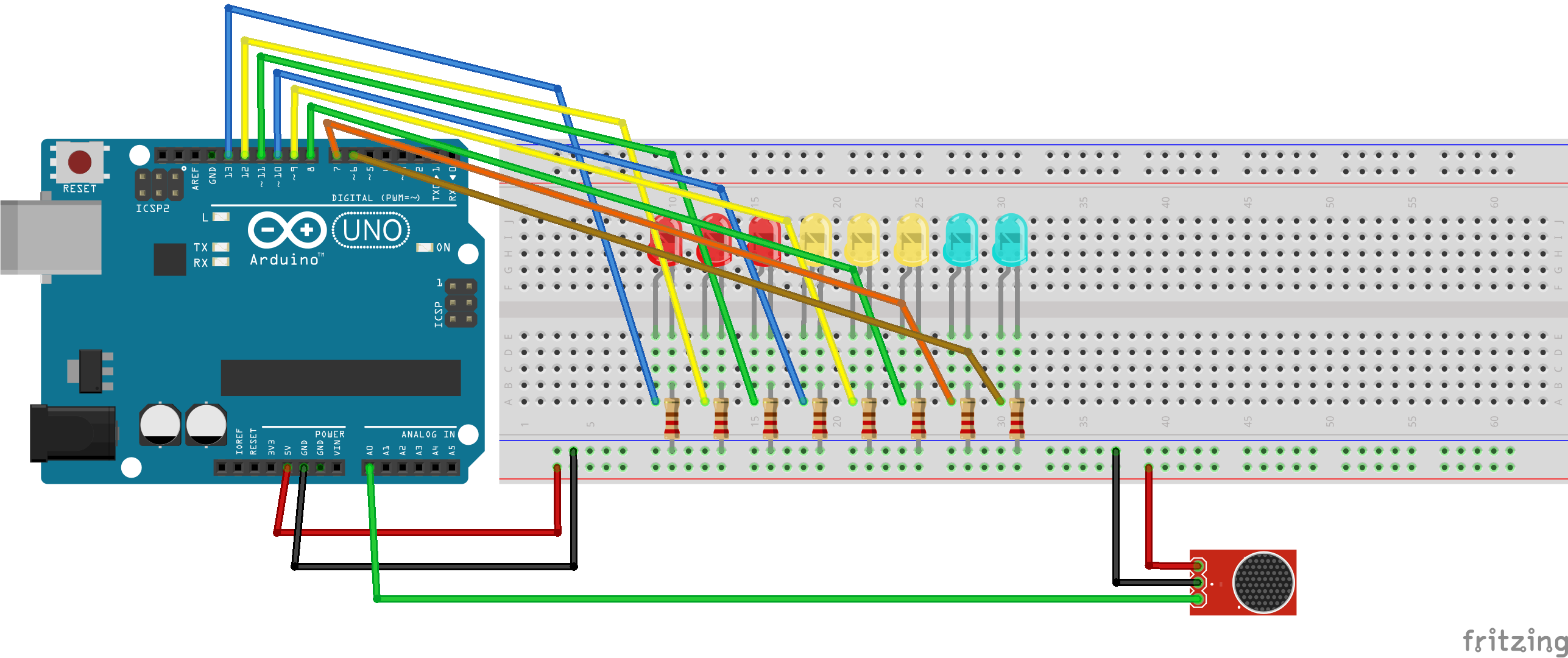

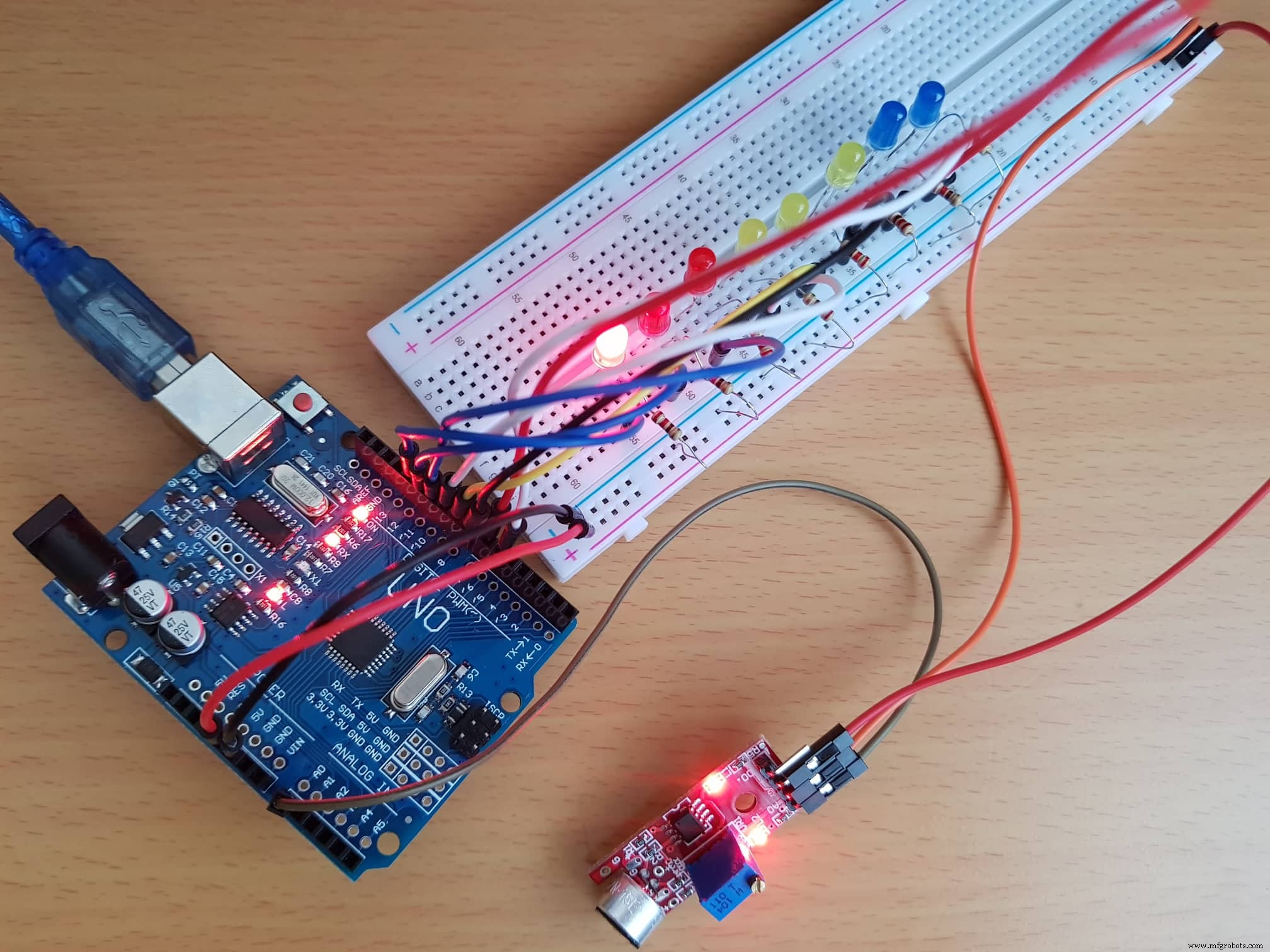

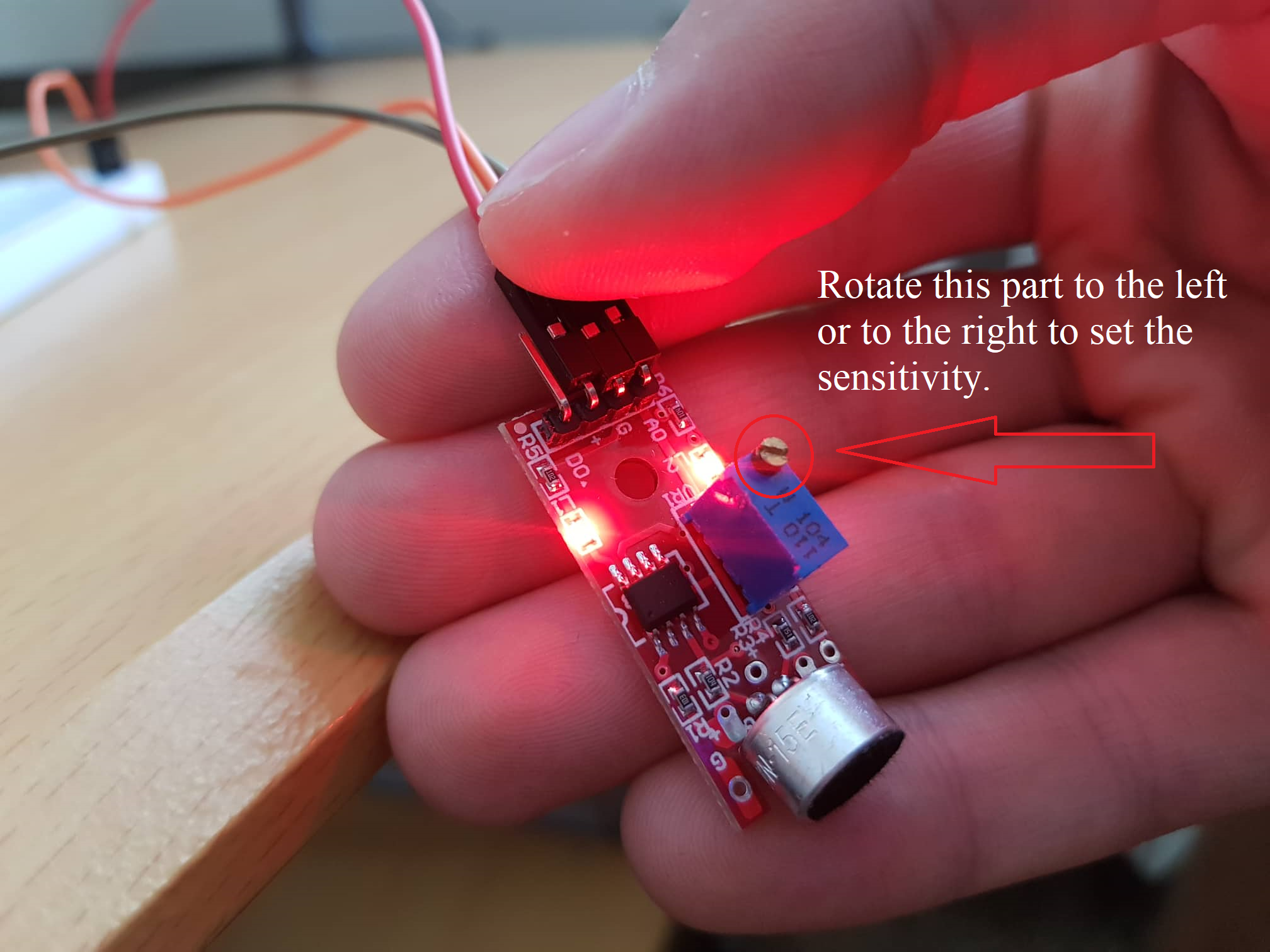

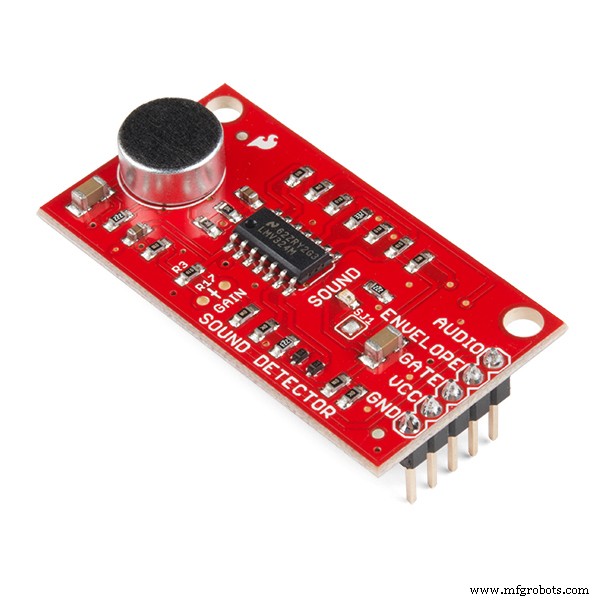

The values of LEDs could be set individually by you. Also, do not forget to set the sensitivity of the sound sensor. I adding some instructions on how to set the sensitivity of the sound sensor below. The third image shows the monitoring of the sound sensor values. By these values, the code is set when to react to the sound.

Code

• The code of project

The code of projectC/C++

/*
 * Mantas Utka
*/

int ledPin1= 13; //Adding the LED's and sensor.
int ledPin2= 12;
int ledPin3= 11;
int ledPin4= 10;
int ledPin5= 9;
int ledPin6= 8;
int ledPin7= 7;
int ledPin8= 6;
int sensorPin= A0; //The sensor selecting as Analog pin. The Analog Pin is better for projects as this one.
int val = 0;

void setup(){
  pinMode(ledPin1, OUTPUT); //Selecting LEDs as outputs to push the results in LEDs of sound detector
  pinMode(ledPin2, OUTPUT);
  pinMode(ledPin3, OUTPUT);
  pinMode(ledPin4, OUTPUT);
  pinMode(ledPin5, OUTPUT);
  pinMode(ledPin6, OUTPUT);
  pinMode(ledPin7, OUTPUT);
  pinMode(ledPin8, OUTPUT);
  pinMode(sensorPin, INPUT); //Selecting the sensor as input to send results into Arduino
  Serial.begin (9600);
}

void loop (){
  val =analogRead(sensorPin);
  Serial.println (val);
  // when the sensor detects a signal, LED flashes

  //1
  if (val >= 127) {
    digitalWrite(ledPin1, HIGH); //selecting the values of LEDs to flash by detecting values of sound sensor.
  }
  else {
    digitalWrite(ledPin1, LOW);
  }

  //2
   if (val >= 378) {
    digitalWrite(ledPin2, HIGH);
  }
  else {
    digitalWrite(ledPin2, LOW);
  }

   //3
   if (val >= 505) {
    digitalWrite(ledPin3, HIGH);
  }
  else {
    digitalWrite(ledPin3, LOW);
  }

  //4
  if (val >= 632) {
    digitalWrite(ledPin4, HIGH);
  }
  else {
    digitalWrite(ledPin4, LOW);
  }

  //5
  if (val >= 759) {
    digitalWrite(ledPin5, HIGH);
  }
  else {
    digitalWrite(ledPin5, LOW);
  }

  //6
  if (val >= 886) {
    digitalWrite(ledPin6, HIGH);
  }
  else {
    digitalWrite(ledPin6, LOW);
  }

  //7
  if (val >= 980) {
    digitalWrite(ledPin7, HIGH);
  }
  else {
    digitalWrite(ledPin7, LOW);
  }

  //8
  if (val >= 1000) {
    digitalWrite(ledPin8, HIGH);
  }
  else {
    digitalWrite(ledPin8, LOW);
  }
}
