Arduino Ultrasonic Distance Sensor Project: HC‑SR04 Range Finder

Components and supplies

Arduino UNO

HC-SR04 Ultrasonic Sensor

Any ultrasonic sensor is fine

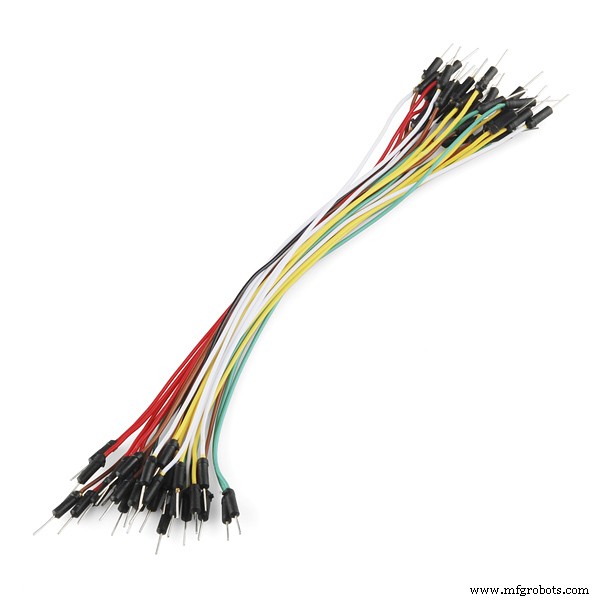

Jumper wires (generic)

5 mm LED: Red

5 mm LED: Green

Apps and online services

Arduino IDE

About this project

Mode of Operation

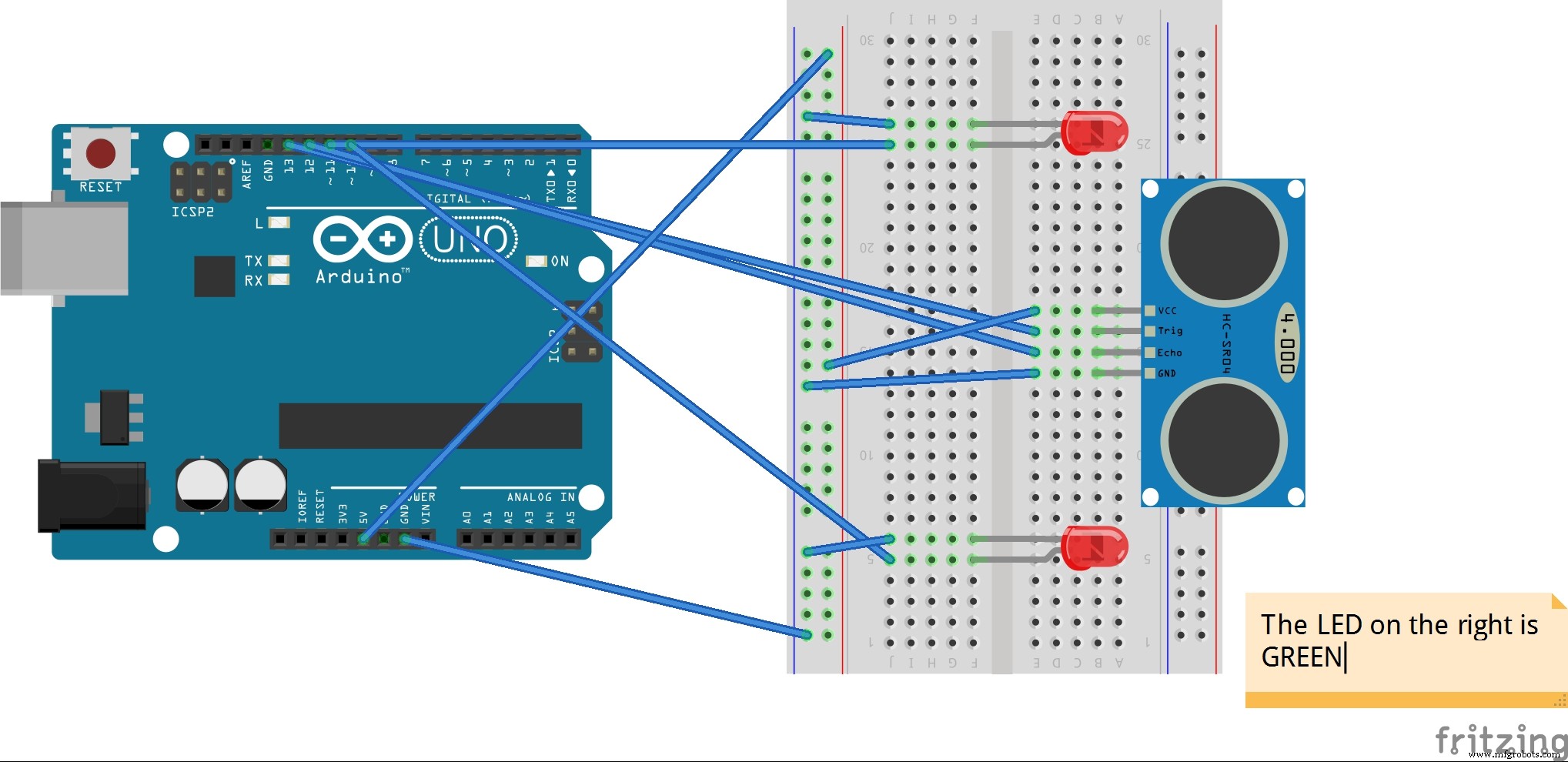

With this you can measure distances from point A to point B faster just by pointing. It's pretty accurate and cheap to make. Connect everything as shown below.

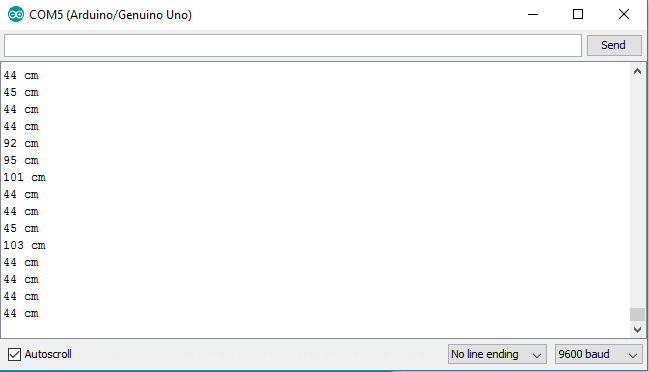

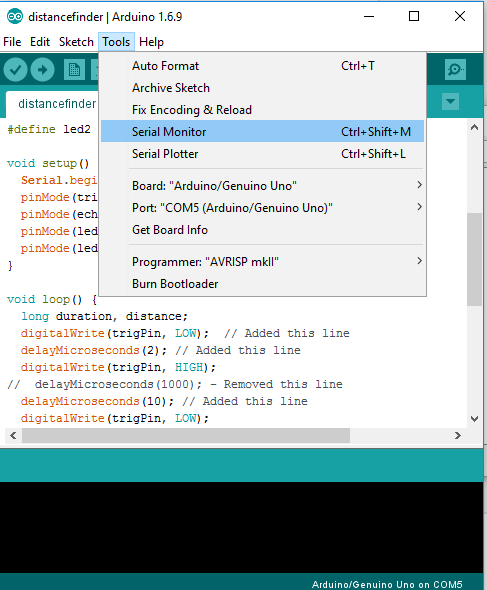

The GREEN LED will light up if the distance is more than 100 cm and the RED LED will light up if the distance is less than 100 cm from the subject. To view the distance measurements, simply open up the Arduino IDE. Click "TOOLS" and select Serial Monitor. As long as your Arduino is connected to the PC via USB, you will receive measurements.

Code

Github

https://github.com/saaketporay/Ultrasonic-Distance-Finder

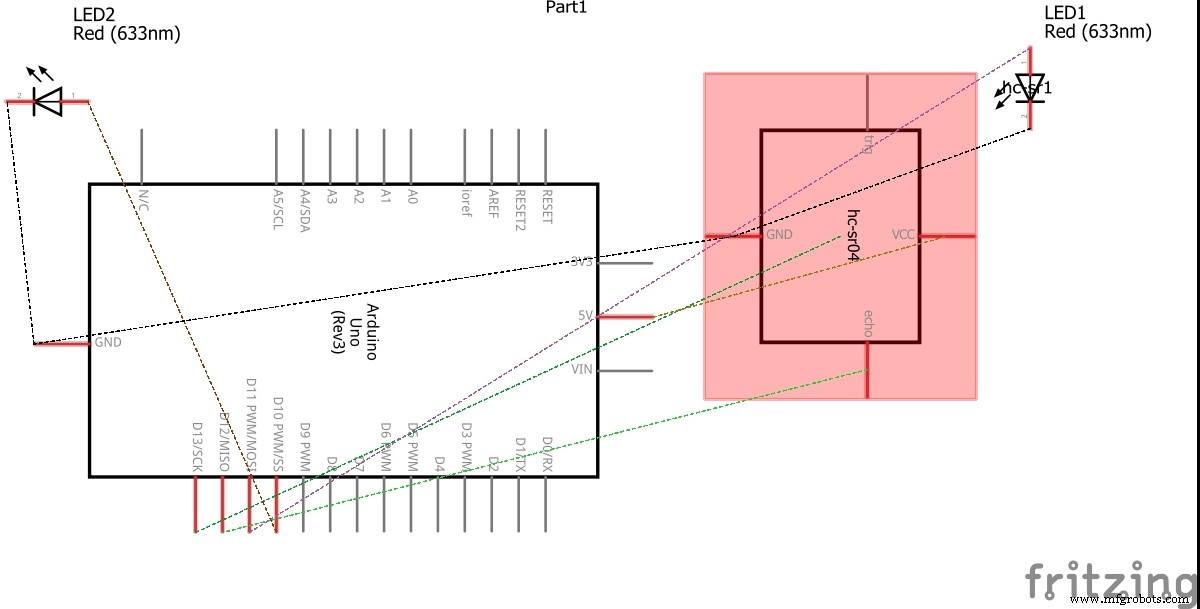

Schematics
