Pin Rollers, Punch & Die, and Laser: A Comprehensive Guide to Perforation Techniques

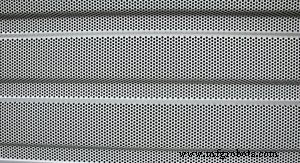

Perforation is a precision manufacturing technique that creates a series of holes in a material. The image on the left demonstrates the process on solid substrates, producing a uniform array of perforations that enhance functionality.

Perforated materials provide increased breathability, simplify separation, and allow light and fluid to pass through—advantages that are essential in many applications.

There are three main methods to achieve perforation, each suited to different materials and production goals.

#1) Pin Rollers

Pin rollers are a staple in high‑volume production lines. A cylindrical roller equipped with an array of pins—heated or cooled—passes over the material, creating evenly spaced holes. Heated pins accelerate cutting in moderately hard substrates such as thermoplastics and composites.

#2) Punch and Die

Punch‑and‑die is the traditional method for metal perforation. A punch and counter‑die shear the workpiece, producing clean, uniform holes across metals and alloys.

However, the process generates significant waste: the central strip of material is often discarded or recycled. Only the outer perforated edge is retained for use.

#3) Laser

Laser perforation has surged in popularity due to its unrivaled precision. High‑power lasers melt localized regions, forming precise, consistent holes. Though the equipment is costly, the resulting uniformity and flexibility make it ideal for intricate designs and low‑volume runs.

In Conclusion

Perforated designs appear in everything from packaging to architectural panels. Manufacturers select the appropriate method—pin rollers, punch‑and‑die, or laser—based on material, volume, and required precision.
