Embedded Systems: Definition, Architecture, and Real‑World Applications

Embedded systems are specialized computing units that combine dedicated hardware with software to perform specific tasks. They are everywhere—from smartphones and wearables to industrial controls and automotive electronics—providing reliable, cost‑effective solutions that are often smaller and lighter than general‑purpose computers.

In academia, electrical and electronics engineering students design final‑year projects that showcase real‑time embedded systems. These projects help students meet graduation requirements while giving hands‑on experience with the technologies that power modern devices.

What Is an Embedded System?

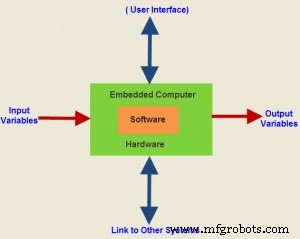

An embedded system integrates hardware circuitry with software logic to deliver a focused solution. By embedding the control algorithm directly into the microcontroller, designers can reduce complexity, cost, and physical footprint. The concept was pioneered by Charles Stark to shrink large analog circuits into compact, programmable units.

A typical embedded system may be fully programmed or partially pre‑wired, yet it always executes a defined set of tasks—whether one or many—according to the embedded code.

Hardware Components

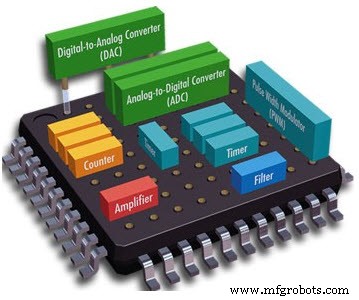

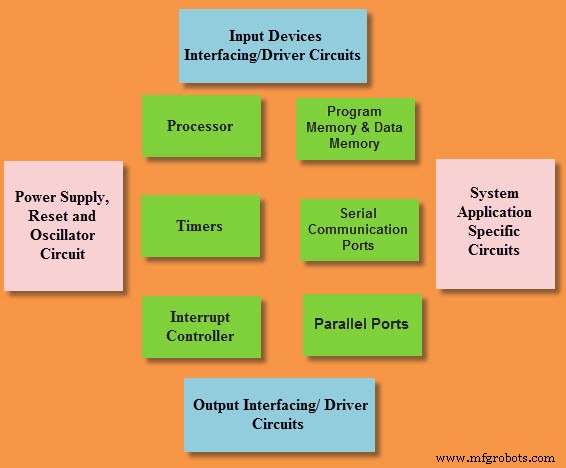

Key hardware elements include a power supply, microcontroller or microprocessor, memory (ROM, RAM, flash), timers, I/O ports, and any application‑specific peripherals such as ADCs, DACs, or motor drivers.

Software Stack

The software is a firmware program written in languages such as C, C++, or embedded C, often developed with tools like Proteus or LabVIEW. Once compiled, the binary is loaded into the microcontroller’s flash memory, enabling it to perform its designated functions.

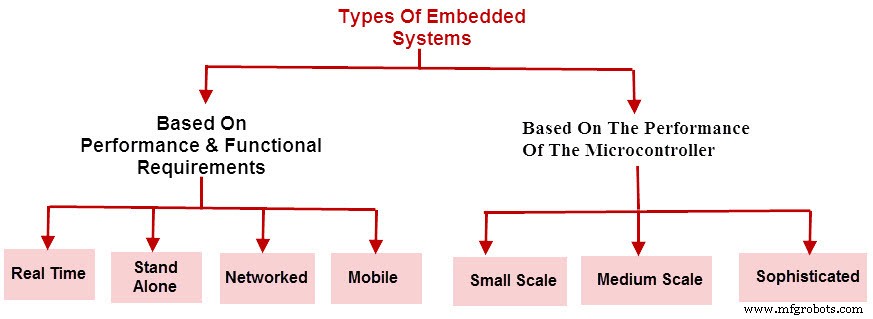

Classification of Embedded Systems

Embedded systems are often grouped by hardware complexity and processor architecture (8‑bit, 16‑bit, 32‑bit). Based on performance, we see:

• Small‑scale embedded systems
• Medium‑scale embedded systems
• Sophisticated embedded systems

Functional requirements further split them into:

• Real‑time embedded systems
• Stand‑alone embedded systems
• Networked embedded systems
• Mobile embedded systems

Real‑World Applications

Embedded systems underpin a wide array of technologies: from telecommunications infrastructure and satellite payloads to military defense equipment and scientific instruments.

IoT‑Based Energy Meter Reading

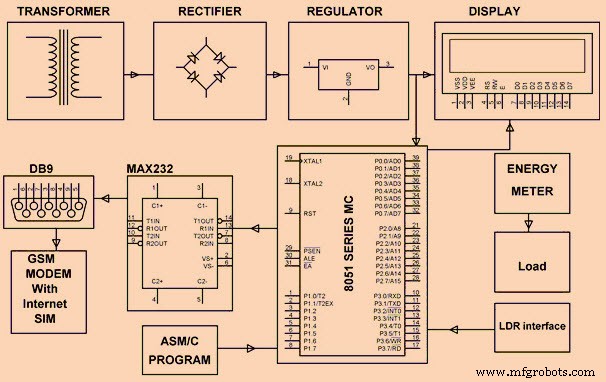

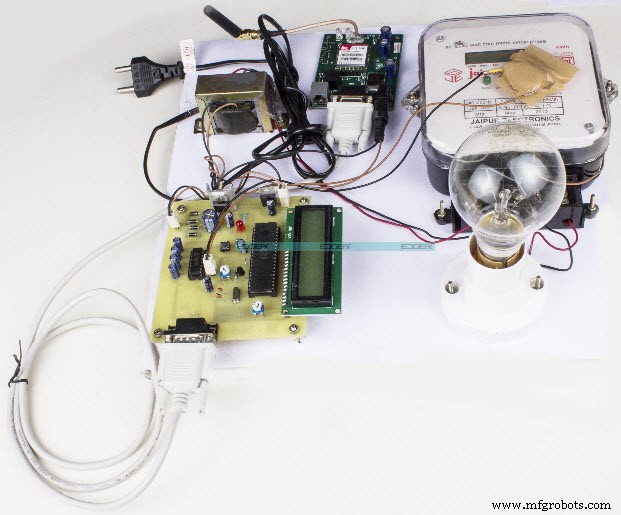

A cutting‑edge real‑time embedded project connects a digital energy meter to the Internet. The meter’s LED flashes 3,200 times per unit of power. An LDR detects each flash, triggering an interrupt in the microcontroller, which then updates an LCD and transmits the data via a GSM modem over RS232.

The transmitted data is posted to a web page, where users view consumption graphs and cost calculations from anywhere in the world.

Students and hobbyists can adapt this design to create projects such as:

• IoT underground cable fault detection via GSM
• Smart card‑based electronic passport system
• Remote patient temperature monitoring using IoT
• Street‑light power saver with LDR and Arduino
• GSM prepaid energy meter
• Automatic meter reading via Zigbee
• Voice‑controlled notice board with Android phone
• Home automation using voice commands
• Solar‑powered electric fencing to deter cattle

If you’re an engineering student or electronics enthusiast, share your innovative embedded‑system ideas in the comments below. Let’s collaborate and turn concepts into tangible solutions.
