Biosensors and Nanosensors for Monitoring Agroecosystems: A Comprehensive Review

Introduction

Rapid population growth, climate volatility, and intensified resource use threaten sustainable agriculture. Over‑reliance on agrochemicals and advanced machinery has degraded soil, water, and air quality, exposing humans and animals to persistent pesticide residues and heavy‑metal pollution. The World Health Organization estimates that 26 million people suffer pesticide poisoning each year, leading to 220,000 deaths. Chronic exposure disrupts photosynthesis, mineral uptake, and cellular metabolism, while heavy metals such as Cd, Hg, Pb, and Cr cause oxidative stress and organ damage. Existing analytical techniques—GC, HPLC, MS—offer high precision but are hampered by high cost, complex sample preparation, and the need for trained operators. Consequently, there is a critical need for low‑cost, on‑site, real‑time monitoring solutions.

Nanomaterial‑based sensors provide an attractive alternative. Their nanoscale features—high surface‑area, unique optical/electrical properties, and tunable surface chemistry—enable detection of analytes at sub‑ppb levels with minimal interference. Three core components define a nanosensor: (1) sample preparation, (2) recognition element (antibody, aptamer, enzyme, or molecularly imprinted polymer), and (3) signal transduction (optical, electrochemical, piezoelectric, or gravimetric). Figure 1 contrasts traditional methods with modern nanosensor platforms.

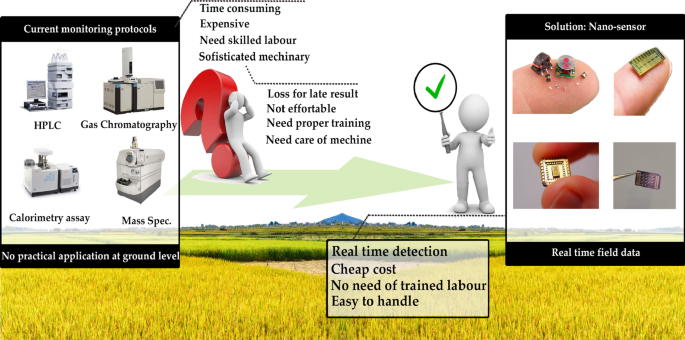

Schematic representation highlighting the differences between traditional and advanced monitoring technologies

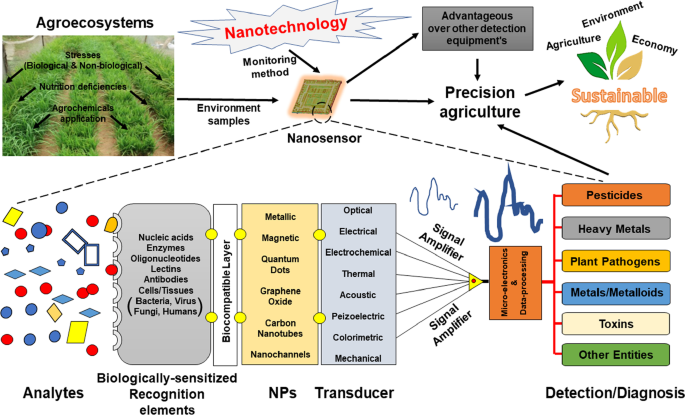

Simplified representation illustrating the component of nanosensors to monitoring agroecosystems

Beyond detection, nanotechnology enables targeted delivery of growth promoters, micronutrients, and biocontrol agents, while reducing chemical runoff and enhancing nutrient use efficiency. The subsequent sections explore sensor categories for pesticides, heavy metals, plant pathogens, and other critical analytes, and evaluate the challenges that hinder commercial adoption.

Nanosensors for Pesticide Detection

Pesticides—organophosphates, carbamates, and herbicides—constitute up to one‑third of global agricultural output but also contaminate groundwater and food chains. Health impacts range from neurotoxicity to carcinogenesis. Rapid, on‑site detection is therefore essential. Conventional methods (HPLC, GC‑MS, ELISA) are precise yet unsuitable for field use due to cost and complexity.

Optical nanosensors—fluorescence, colorimetric, SERS, and SPR—combine selective recognition elements (enzymes, antibodies, aptamers, molecularly imprinted polymers) with nanomaterials to achieve sub‑ppm detection limits. For example, silver nanodendrite‑based fluorescence sensors detect dimethoate at 0.002 ppm, while CuO/3D‑graphene electrochemical sensors detect malathion at 0.01 nM.

Immunochromatographic strip (ICTS) sensors provide qualitative “yes/no” readouts and are amenable to point‑of‑care use. Recent improvements, such as signal amplification and optimized labeling, enhance sensitivity to match laboratory standards.

Adverse effects of pesticides on human health

Nanosensors for Detection of Heavy Metals

Heavy‑metal ions (Pb²⁺, Hg²⁺, Cd²⁺, Cu²⁺, Ag⁺) accumulate in soils and water due to agricultural runoff and industrial discharges, posing acute ecological and health risks. Traditional spectroscopy (XRF, AAS, AES, ICP‑MS) is accurate but expensive and laborious.

Optical nanosensors—graphene‑based photoluminescent probes, Ag/Au nanoparticle hybrids, and quantum‑dot conjugates—provide rapid, low‑cost detection. For instance, CdSe quantum dots restore green photoluminescence upon cadmium binding, and a silver‑graphene hybrid offers colorimetric detection of Pb²⁺ and Hg²⁺ via DNA conformational changes.

Multimodal sensors that combine magnetic separation with fluorescence allow simultaneous detection and removal of contaminants. A silica‑shell Fe₂O₃–quantum‑dot sensor detected Hg²⁺ at 1 nm LOD, while magnetic‑fluorescent composites recover analytes using an external magnet.

Nanosensors for Detecting Plant Pathogens

Early pathogen detection is critical for disease control and yield preservation. Nanoparticle‑based “chemical nose” sensors leverage multiple ligand–nanoparticle interactions to generate distinct spectral fingerprints for bacteria and fungal spores. Gold‑nanoparticle aggregations produce measurable color shifts upon bacterial binding, enabling rapid discrimination of biofilms and mixed infections.

Enzyme‑based olfactory nanosensors mimic human scent detection, offering sensitivity down to 10² CFU mL⁻¹. Magnetic‑enriched sensors allow rapid separation and high‑throughput screening of plant pathogens.

Optical sensors such as SPR‑based gold nanorods and SERS‑barcoded nanoparticles have detected viral proteins and transgenic markers at picogram per milliliter levels, demonstrating the feasibility of field‑deployable pathogen diagnostics.

Nanosensors for Detection of Other Entities

Nanoscience extends beyond metals and pathogens to amino acids, essential micronutrients, and water‑borne contaminants. Gold‑nanoparticle optical sensors detect cysteine and lysine at μM levels via color change. Dual‑emission quantum dots and magnetic electrochemiluminescent probes identify Cu²⁺, Fe³⁺, Zn²⁺, and fluoride ions with sub‑µM limits of detection.

Such sensors also enable the rapid screening of transgenic crops (e.g., Bt gene in rice) and the detection of aflatoxin B1 with picogram sensitivity, underscoring their versatility in agricultural safety.

Nanosensors for Detection of Nanoparticles

Engineered nanoparticles—metal oxides, fullerenes, quantum dots—are increasingly present in agro‑soil due to industrial emissions and crop treatments. Their high surface area facilitates bioaccumulation and cellular disruption. Monitoring these particles is essential for assessing environmental risk.

Optical microcavity sensors (whispering‑gallery resonators) detect single nanoparticles by monitoring wavelength shifts, while split‑mode Raman lasers achieve size resolution down to 20 nm. These tools enable real‑time, label‑free surveillance of nanoparticle contamination in soils and water.

Nanotechnology Implementation in an Agroecosystem: Proof-of-Concept to Commercialization

Despite abundant academic research, few nanosensors reach market readiness. Barriers include scale‑up, regulatory validation, intellectual‑property protection, cost, and safety considerations. Successful commercialization requires multidisciplinary collaboration among researchers, industry, regulators, and farmers.

Startups such as Razzberry (portable water/soil sensors), Nasys (air‑pollution nanosensors), nGageIT, and Tracense (biological hazard detection) illustrate the pathway from prototype to field deployment. These ventures demonstrate that nanosensor technology can be packaged into user‑friendly, low‑cost kits for routine monitoring.

Perspectives and Conclusions

Precision agriculture, powered by smart nanosensors, can transform crop management by providing real‑time data on soil moisture, nutrient status, pesticide residue, heavy‑metal contamination, and pathogen presence. The integration of nanomaterial‑based diagnostics with satellite imaging, GPS, and data analytics will enable predictive crop management, reducing chemical inputs and safeguarding environmental health.

Future research should focus on multiplexed, broad‑spectrum sensors that combine optical, electrochemical, and immunological readouts in a single platform. Development of robust, field‑deployable devices with self‑calibration and minimal maintenance will accelerate adoption. Ultimately, the convergence of nanotechnology, plant science, and agronomic engineering will support the Sustainable Development Goals 2030 without compromising human safety or ecosystem integrity.
