Introduction to Operational Amplifiers (Op‑amps)

What is an Operational Amplifier (Op-amp)?

Operational amplifiers, or op‑amps, are voltage‑amplifying integrated circuits designed to work in concert with passive components such as resistors and capacitors. By placing external feedback elements around the device, engineers can shape its behavior to perform a wide range of linear signal‑processing functions.

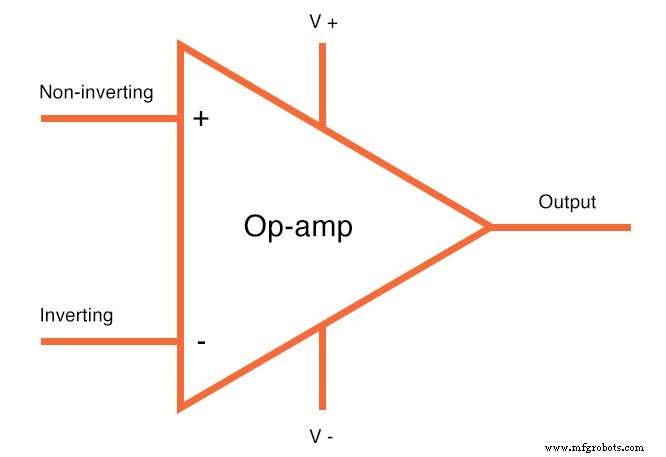

Example of an op‑amp in a schematic.

Op‑amps are ideal for DC amplification and are frequently employed in signal conditioning, filtering, and mathematical operations—addition, subtraction, integration, and differentiation. Their linearity and high input impedance make them indispensable in precision analog design.

They are arguably the most versatile single component in analog electronics. With just a few external parts, an op‑amp can be configured to implement virtually any analog function. General‑purpose variants are inexpensive (under one dollar each) and many modern packages are engineered to withstand output short‑circuits without damage, enhancing reliability.

Central to their utility is the concept of feedback, especially negative feedback, which stabilizes performance and underpins most automatic control systems. Mastering these principles provides a foundation that extends well beyond circuit design.
