Breadboard to PCB: Build a Simon Says Game – Part 1

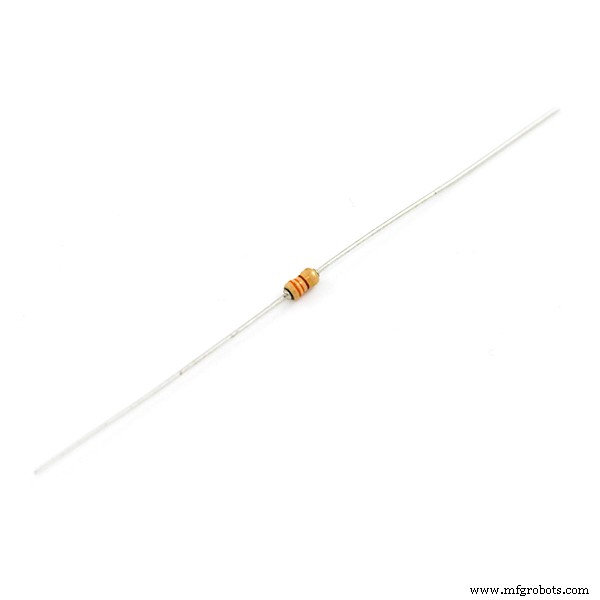

Apps and online services

Arduino IDE

About this project

Introduction

We’ve all seen the old Simon Says game, where you try to copy a sequence of lights by pressing the button that corresponds to the correct light sequence. For Hackster Live we showcased a PCB design tool called Upverter. This is a fun and simple project to create and turn into a PCB. Below is the basic project showing the game creation complete with hardware and code.

There are three parts to this project series.

• Part 1: Making the Simon Says Game

• Part 2: Design a PCB based on the Simon Says game using Upverter

• Part 3: Mill your own PCB from the design you created on Upverter

What you'll learn in this series

• How to lay out a basic project on a breadboard

• How to lay out a PCB in Upverter

• How to mill your own PCB using a CNC machine

Software

If you don't have the Arduino IDE for writing and uploading code to your Arduino, download the latest version for your operating system here.

Hardware Setup

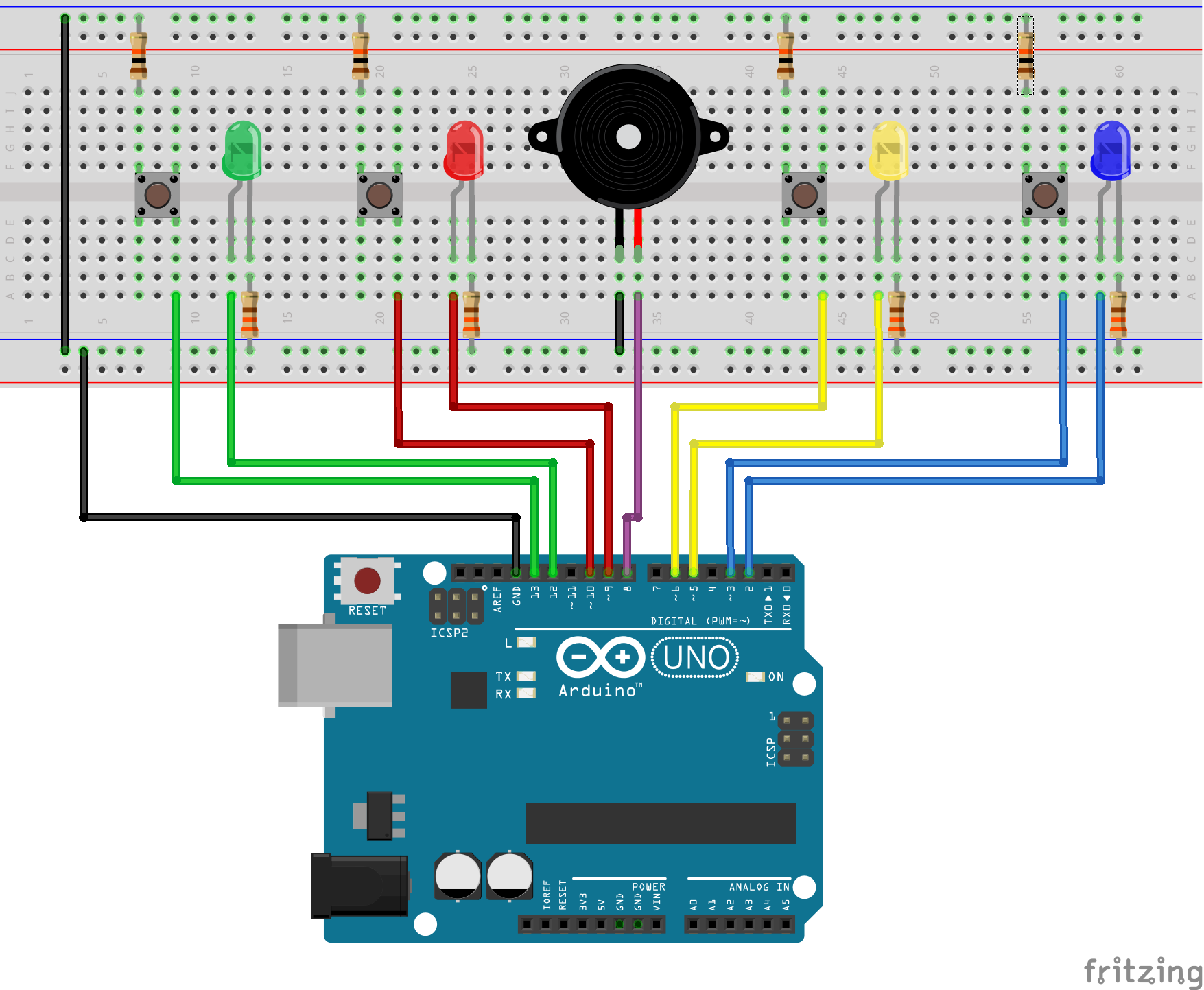

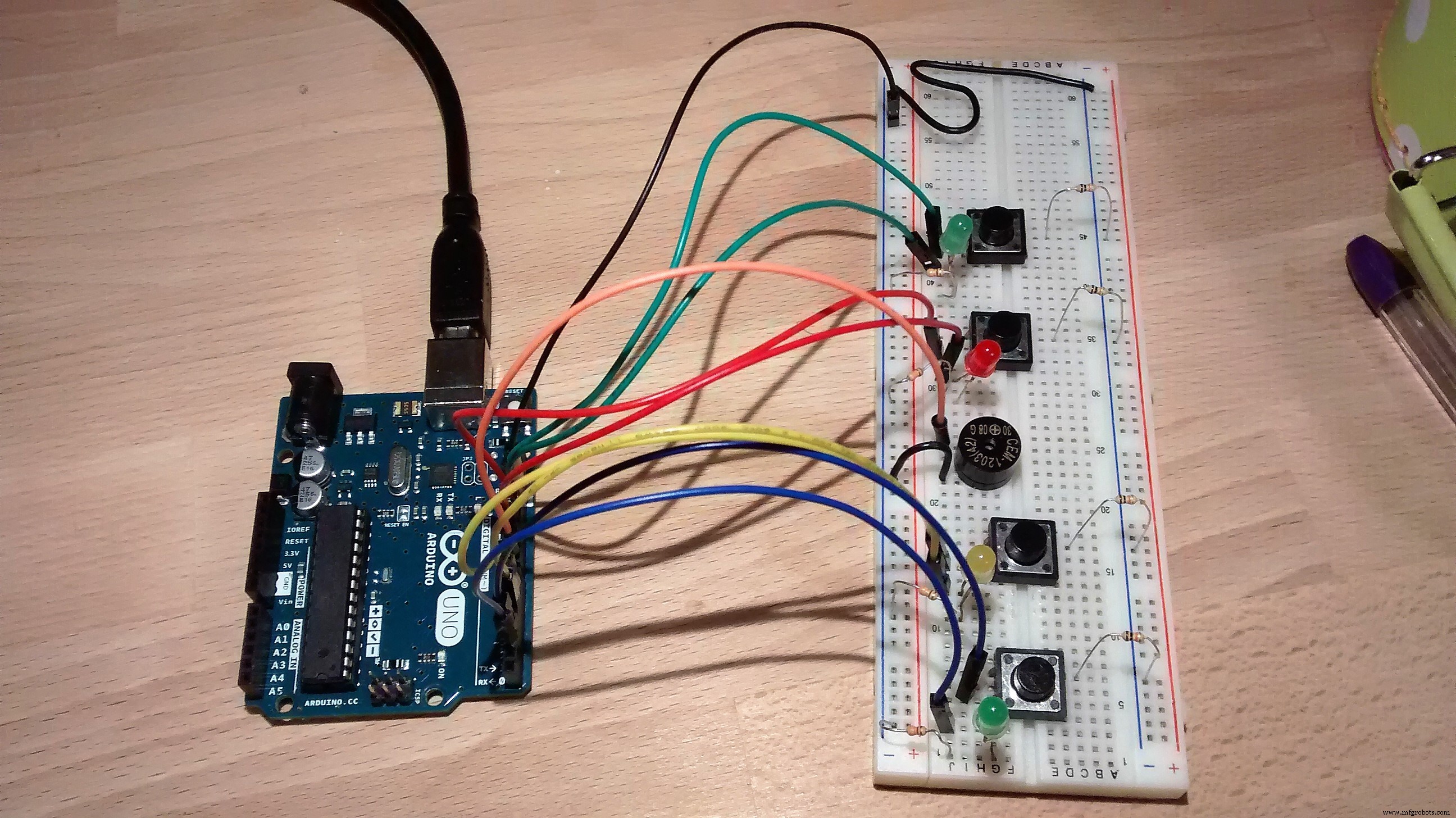

I used Sparkfun’s Inventor’s Kit example as inspiration for my hardware setup and adjusted it slightly. Check out the Fritzing diagram below.

Code

The fun thing about this game is that you can have so many variations. As I mentioned above, I used Sparkfun’s example as a starting point for my hardware setup and wrote the code from scratch. If writing your own code isn’t something you’re interested in, you can use mine below, use Sparkfun's code in the example mentioned above with a few adjustments, or search for other Simon says games/codes that will work with your hardware setup.

I included detailed comments and the debugging Serial print lines in my code, so that you can see what’s happening on the Serial monitor while the game is running. Check out the video of the Simon Says game in action below!

Simon Says Game Video

*Note: In this video I set the number of lights in a row that I needed to win to 5. This can be changed to make the game harder, but I wanted to keep my video relatively short :).

Now you're ready to turn your breadboard into a PCB! Learn how in Breadboard to PCB Part 2 - Designing a PCB using Upverter.

Code

• Simon Says Arduino Code

Simon Says Arduino CodeArduino

 int ledArray[] = {12, 9, 5, 2};// ledArray[0] is green, ledArray[1] is red, ledArray[2] is yellow, and ledArray[3] is blue.
 int buttonArray[] = {13, 10, 6, 3};// buttonArray[0] is green, buttonArray[1] is red, buttonArray[2] is yellow, and buttonArray[3] is blue.
 int pinCount = 4; //both ledArray and buttonArray have same pinCount --> use this for both buttons and leds
 int buzzer = 8;

 int ledState = 0;
 int gameState = 0;

 #define NUMBERTOWIN 5 //Number of lights you have to match to win --> You can change this number to make the game more or less challenging to win
 int gameValues[NUMBERTOWIN];
 int roundNum = 0;

 unsigned long previousMillis = 0; //need this for pre-game state for flashing lights without delay --> if you use delay your button push to start game may not be noticed
 unsigned long interval1 = 500; //need this for time between blinks

//declare functions
void setLed(int ledNum);
void displayClue(int roundNum);
boolean waitForInput(int buttonNum);

void setup () {
Serial.begin(9600);

Serial.println("setup");

  for(int Pin = 0; Pin < pinCount; Pin++) // initial pin is zero which corresponds to green, if the pin is less than 4 (pinCount) then add one, which would make the pin number 1 and correspond to red etc...
  {
  //set all leds to output
  pinMode(ledArray[Pin], OUTPUT);
  }

  for(int Pin = 0; Pin < pinCount; Pin++)
  {
  //set all buttons to input using pullup resistor built into board
  //I decided to add 10K resistors to the buttons after writing the code, you can change the code to use the external resistors, but it's not necessary
  pinMode(buttonArray[Pin], INPUT_PULLUP);
  }

 //if analog input pin 0 is unconnected
 //random analog noise will cause the call to randomSeed() to generate
 //different seed numbers each time the sketch runs
 //randomSeed() will shuffle the random function that we call during gameplay
 randomSeed(analogRead(0));
 }

void loop () {

  if (gameState == 0)
  {
     int button0 = digitalRead(buttonArray[0]);
     int button1 = digitalRead(buttonArray[1]);
     int button2 = digitalRead(buttonArray[2]);
     int button3 = digitalRead(buttonArray[3]);

    //if no buttons are pressed (since button input is pullup we show all buttons pressed) then play pre_game
    if (button0 && button1 && button2 && button3)
    {
      pre_game();
    }
    // if a button is pressed set up for the game
    else
    {
      Serial.println("button Pressed");
      //turn leds off before starting game --> function setLed() states that if ledNum is <0 led is LOW
      setLed(-1);
      //set the round number to zero so you start on the first round
      roundNum = 0;
      delay (1000);
      //set gameState to 1
      gameState = 1;
    }
  }

  if (gameState == 1)
  {
    gamePlay();
  }

  if (gameState == 2)
  {
    //You win!! - play winning sound and scroll through leds (winDisplay)3 times followed by lose display once for good transition.
    //delay to give player time to release button press before winning sound plays
    delay(500);
    winning_sound();
    winDisplay();
    winDisplay();
    winDisplay();
    loseDisplay();
    Serial.println("winDisplay");
    //delay briefly before running pre_game
    delay (1000);
    //reset gameState to zero to call pre_game
    gameState = 0;
  }

  if (gameState == 3)
  {
    //You lose :( - play losing sound and flash leds (loseDisplay)3 times for good transition.
    //delay to give player time to release button press before losing sound plays
    delay(500);
    losing_sound();
    loseDisplay();
    loseDisplay();
    loseDisplay();
    Serial.println("loseDisplay");
     //delay briefly before running pre_game
    delay (1000);
    //reset gameState to zero to call pre_game
    gameState = 0;
  }
}

//pre_game
void pre_game()
{
  //Check if enough time has elapsed between leds lighting up
  unsigned long currentMillis = millis();
  if (currentMillis - previousMillis > interval1)
  {
  //if enough time has elapsed update lights
  if (ledState == 0)
  {
    Serial.println("pre green");
    setLed(0);
    ledState = 1;
  }
  else if (ledState == 1)
  {
    Serial.println("pre red");
    setLed(1);
    ledState = 2;
  }
  else if (ledState == 2)
  {
    Serial.println("pre yellow");
    setLed(2);
    ledState = 3;
  }
  else if (ledState == 3)
  {
    Serial.println("pre blue");
    setLed(3);
    ledState = 0;
  }
  //reset time
  previousMillis = currentMillis;
  }
}

//function for while game is playing
void gamePlay()
{
  Serial.println("gamePlay");
  //pre-load array with random numbers for game
  for ( int i=0; i<NUMBERTOWIN; i++)
  {
    //use floor to round number down to nearest integer and random to choose random numbers from 0 to 3 to put in the gameValues array.
    gameValues[i] = floor(random(0,4));
    Serial.println(gameValues[i], DEC);
  }


  Serial.print("Starting Round ");
  Serial.println(roundNum, DEC);
  for (int r=0; r<NUMBERTOWIN; r++)
  {
    displayClue(roundNum);

    for (int i=0; i<=roundNum; i++)
    {
      Serial.print("Wainting for input ");
      Serial.print(i+1, DEC);
      Serial.print(" of ");
      Serial.print(roundNum+1, DEC);
      Serial.println("");

      //wait for user input and see if they're correct, if correct wait for next input etc.. if not correct, fail
      if (waitForInput(gameValues[i]))
      {
        //correct input
        if (i==roundNum)
        {
          Serial.println("Correct");
          //check if final round
          if (roundNum == NUMBERTOWIN-1)
          {
            Serial.println("You Win!");
           // you won!
           // set gameState to 2 to run winning fuction
           gameState = 2;
           return;
          }
          else
          {
            Serial.println("Continue");
          }
        }
      }
      else
      {
        //incorrect input
        Serial.println("You Lose!");

        // you lost :(
        // set gameState to 3 to run losing function
        gameState = 3;
        return;
      }
    }
    //User made it through the round, increment round number to continue
    roundNum++;
    //Delay briefly so user has time to see start of next clue
    delay(1000);
  }
}

void setLed(int ledNum)
{
  //if the led number is less than zero turn all the leds off
  if (ledNum<0)
  {
   for (int i = 0; i<pinCount; i++)
   {
   digitalWrite(ledArray[i], LOW);
   }
  }
  else
  {
    //turn on the specified led, turn off the other leds
    //turn one and only one led on - if i is the same as the number passed in from pre-game then turn on that light, if it is not the same turn off that light
    for (int i = 0; i<pinCount; i++)
    {
      if (i == ledNum)
      {
        digitalWrite(ledArray[i], HIGH);
      }
      else
      {
        digitalWrite(ledArray[i], LOW);
      }
    }
  }
 }


 void displayClue(int roundNum)
 {
  //turn all lights off
  setLed(-1);
  for (int i=0; i<=roundNum; i++)
  {
    //turn on led that matches current round
    setLed(gameValues[i]);
    delay(750);
    setLed(-1);
    delay(250);
  }
 }

boolean waitForInput(int buttonNum)
{
  //read all the buttons continuously until a button is pressed, if a button is pressed check if it's correct and if so return true. if not, return false.
  while(true)
  {
   int button0 = digitalRead(buttonArray[0]);
   int button1 = digitalRead(buttonArray[1]);
   int button2 = digitalRead(buttonArray[2]);
   int button3 = digitalRead(buttonArray[3]);

   //because we are using input_pullup ! indicted a button is pressed --> if any button is pressed go to the rest of the code
   if (!button0 || !button1 || !button2 || !button3)
   {
      //Delay briefly to avoid double counting button press
      delay(250);

      //light up the corresponding led when a button is pressed
      if (buttonNum == 0)
      {
        digitalWrite(ledArray[0], HIGH);
        delay(250);
        digitalWrite(ledArray[0], LOW);
      }
      else if (buttonNum == 1)
      {
        digitalWrite(ledArray[1], HIGH);
        delay(250);
        digitalWrite(ledArray[1], LOW);
      }
      else if (buttonNum == 2)
      {
        digitalWrite(ledArray[2], HIGH);
        delay(250);
        digitalWrite(ledArray[2], LOW);
      }
      else if (buttonNum == 3)
      {
        digitalWrite(ledArray[3], HIGH);
        delay(250);
        digitalWrite(ledArray[3], LOW);
      }

      //check if correct button was pressed
      if (buttonNum == 0 && button0 == 0)
      {
        Serial.println("0 Pressed");
        return true;
      }
      else if (buttonNum == 1 && button1 == 0)
      {
        Serial.println("1 Pressed");
        return true;
      }
      else if (buttonNum == 2 && button2 == 0)
      {
        Serial.println("2 Pressed");
        return true;
      }
      else if (buttonNum == 3 && button3 == 0)
      {
        Serial.println("3 Pressed");
        return true;
      }
      else
      {
        return false;
      }
    }
  }
}

//after win - have lights scroll quickly
void winDisplay()
{
digitalWrite(ledArray[0], HIGH);
delay(75);
digitalWrite(ledArray[0], LOW);
delay(75);
digitalWrite(ledArray[1], HIGH);
delay(75);
digitalWrite(ledArray[1], LOW);
delay(75);
digitalWrite(ledArray[2], HIGH);
delay(75);
digitalWrite(ledArray[2], LOW);
delay(75);
digitalWrite(ledArray[3], HIGH);
delay(75);
digitalWrite(ledArray[3], LOW);
delay(75);
digitalWrite(ledArray[2], HIGH);
delay(75);
digitalWrite(ledArray[2], LOW);
delay(75);
digitalWrite(ledArray[1], HIGH);
delay(75);
digitalWrite(ledArray[1], LOW);
delay(75);
digitalWrite(ledArray[0], HIGH);
delay(75);
digitalWrite(ledArray[0], LOW);
delay(75);
}

void winning_sound(void)
{
  //tone (pin number, frequency - I looked this up online to find the frequency for the notes I wanted, duration of tune)
  Serial.println("buzzer1");
  tone(buzzer, 294, 250);
  delay(200);
  tone(buzzer, 294, 250);
  delay(200);
  tone(buzzer, 294, 250);
  delay(200);
  tone(buzzer, 392, 500);
  delay(500);
  Serial.println("second 392");
  tone(buzzer, 392, 250);
  delay(200);
  tone(buzzer, 440, 250);
  delay(200);
  tone(buzzer, 392, 250);
  delay(200);
  tone(buzzer, 440, 250);
  delay(200);
  tone(buzzer, 494, 500);
}


void loseDisplay()
{
  digitalWrite(ledArray[0], HIGH);
  digitalWrite(ledArray[1], HIGH);
  digitalWrite(ledArray[2], HIGH);
  digitalWrite(ledArray[3], HIGH);
  delay(200);
  digitalWrite(ledArray[0], LOW);
  digitalWrite(ledArray[1], LOW);
  digitalWrite(ledArray[2], LOW);
  digitalWrite(ledArray[3], LOW);
  delay(200);
}

void losing_sound(void)
{
  Serial.println("losing_sound");
  tone(buzzer, 98, 250);
  delay(250);
   tone(buzzer, 93, 250);
  delay(250);
   tone(buzzer, 87, 250);
  delay(250);
}
