Enhancing Motorcycle Security with a Biometric Sensor System

Necessary tools and machines

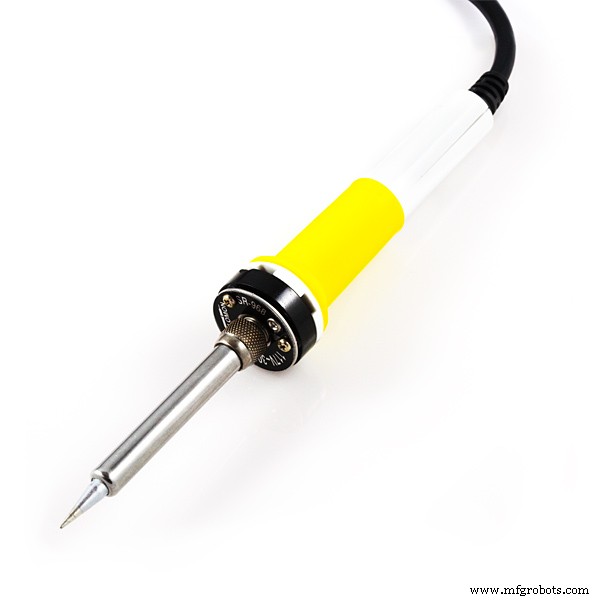

	Soldering iron (generic)
	Solder Wire, Lead Free
	Tape, Electrical

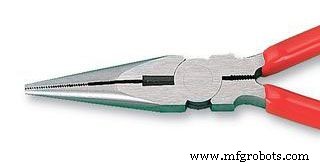

	Plier, Long Nose

Apps and online services

Arduino Web Editor

About this project

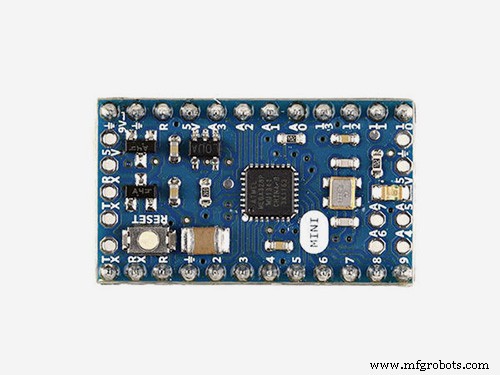

In the face of so many motorcycle thefts, we used an Arduino Pro Mini to develop an anti-theft system that connects the bike through the digital user's registration.

Canal Sandro Mesquita Roboticamente

Code

• Code of security System Motorcycle

Code of security System MotorcycleArduino

/***************************************************
  This is an example sketch for our optical Fingerprint sensor

  Designed specifically to work with the Adafruit BMP085 Breakout
  ----> http://www.adafruit.com/products/751

  These displays use TTL Serial to communicate, 2 pins are required to
  interface
  Adafruit invests time and resources providing this open source code,
  please support Adafruit and open-source hardware by purchasing
  products from Adafruit!

  Written by Limor Fried/Ladyada for Adafruit Industries.
  BSD license, all text above must be included in any redistribution
 ****************************************************/
int chave=0;
int verde=5;
int azul=4;
int vermelho=6;
int rele=7;
#include <Adafruit_Fingerprint.h>

// On Leonardo/Micro or others with hardware serial, use those! #0 is green wire, #1 is white
// uncomment this line:
// #define mySerial Serial1

// For UNO and others without hardware serial, we must use software serial...
// pin #2 is IN from sensor (GREEN wire)
// pin #3 is OUT from arduino  (WHITE wire)
// comment these two lines if using hardware serial
SoftwareSerial mySerial(2, 3);

Adafruit_Fingerprint finger = Adafruit_Fingerprint(&mySerial);

void setup()
{
  pinMode(4,OUTPUT);
  pinMode(5,OUTPUT);
  pinMode(6,OUTPUT);
  pinMode(7,OUTPUT);
  digitalWrite(rele,1);
  //Serial.begin(9600);
  //while (!Serial);  // For Yun/Leo/Micro/Zero/...
  delay(100);
  //Serial.println("\n\nAdafruit finger detect test");
  digitalWrite(azul,1);
  // set the data rate for the sensor serial port
  finger.begin(57600);
  /*
  if (finger.verifyPassword()) {
    Serial.println("Found fingerprint sensor!");
  } else {
    Serial.println("Did not find fingerprint sensor :(");
    while (1) { delay(1); }
  }
*/
  //finger.getTemplateCount();
  //Serial.print("Sensor contains "); Serial.print(finger.templateCount); Serial.println(" templates");
  //Serial.println("Waiting for valid finger...");
  digitalWrite(azul,0);
  digitalWrite(vermelho,1);
  digitalWrite(verde,0);
}


void loop()                     // run over and over again
{

  if(getFingerprintIDez()==1){
    chave=!chave;

    delay(500);
  }
  digitalWrite(rele,!chave);
  digitalWrite(verde,chave);
  digitalWrite(vermelho,digitalRead(rele));
  delay(50);            //don't ned to run this at full speed.
}

uint8_t getFingerprintID() {
  uint8_t p = finger.getImage();
  switch (p) {
    case FINGERPRINT_OK:
      //Serial.println("Image taken");
      break;
    case FINGERPRINT_NOFINGER:
      //Serial.println("No finger detected");
      return p;
    case FINGERPRINT_PACKETRECIEVEERR:
      //Serial.println("Communication error");
      return p;
    case FINGERPRINT_IMAGEFAIL:
      //Serial.println("Imaging error");
      return p;
    default:
      //Serial.println("Unknown error");
      return p;
  }

  // OK success!

  p = finger.image2Tz();
  switch (p) {
    case FINGERPRINT_OK:
      //Serial.println("Image converted");
      break;
    case FINGERPRINT_IMAGEMESS:
      //Serial.println("Image too messy");
      return p;
    case FINGERPRINT_PACKETRECIEVEERR:
      //Serial.println("Communication error");
      return p;
    case FINGERPRINT_FEATUREFAIL:
      //Serial.println("Could not find fingerprint features");
      return p;
    case FINGERPRINT_INVALIDIMAGE:
      //Serial.println("Could not find fingerprint features");
      return p;
    default:
      //Serial.println("Unknown error");
      return p;
  }

  // OK converted!
  p = finger.fingerFastSearch();
  if (p == FINGERPRINT_OK) {
    //Serial.println("Found a print match!");
  } else if (p == FINGERPRINT_PACKETRECIEVEERR) {
    //Serial.println("Communication error");
    return p;
  } else if (p == FINGERPRINT_NOTFOUND) {
    //Serial.println("Did not find a match");
    return p;
  } else {
    //Serial.println("Unknown error");
    return p;
  }

  // found a match!
  //Serial.print("Found ID #"); Serial.print(finger.fingerID);
  //Serial.print(" with confidence of "); Serial.println(finger.confidence);

  return finger.fingerID;
}

// returns -1 if failed, otherwise returns ID #
int getFingerprintIDez() {
  uint8_t p = finger.getImage();
  if (p != FINGERPRINT_OK)  return -1;

  p = finger.image2Tz();
  if (p != FINGERPRINT_OK)  return -1;

  p = finger.fingerFastSearch();
  if (p != FINGERPRINT_OK)  return -1;

  // found a match!

  //Serial.print("Found ID #"); Serial.print(finger.fingerID);
  //Serial.print(" with confidence of "); Serial.println(finger.confidence);
  return finger.fingerID;
}

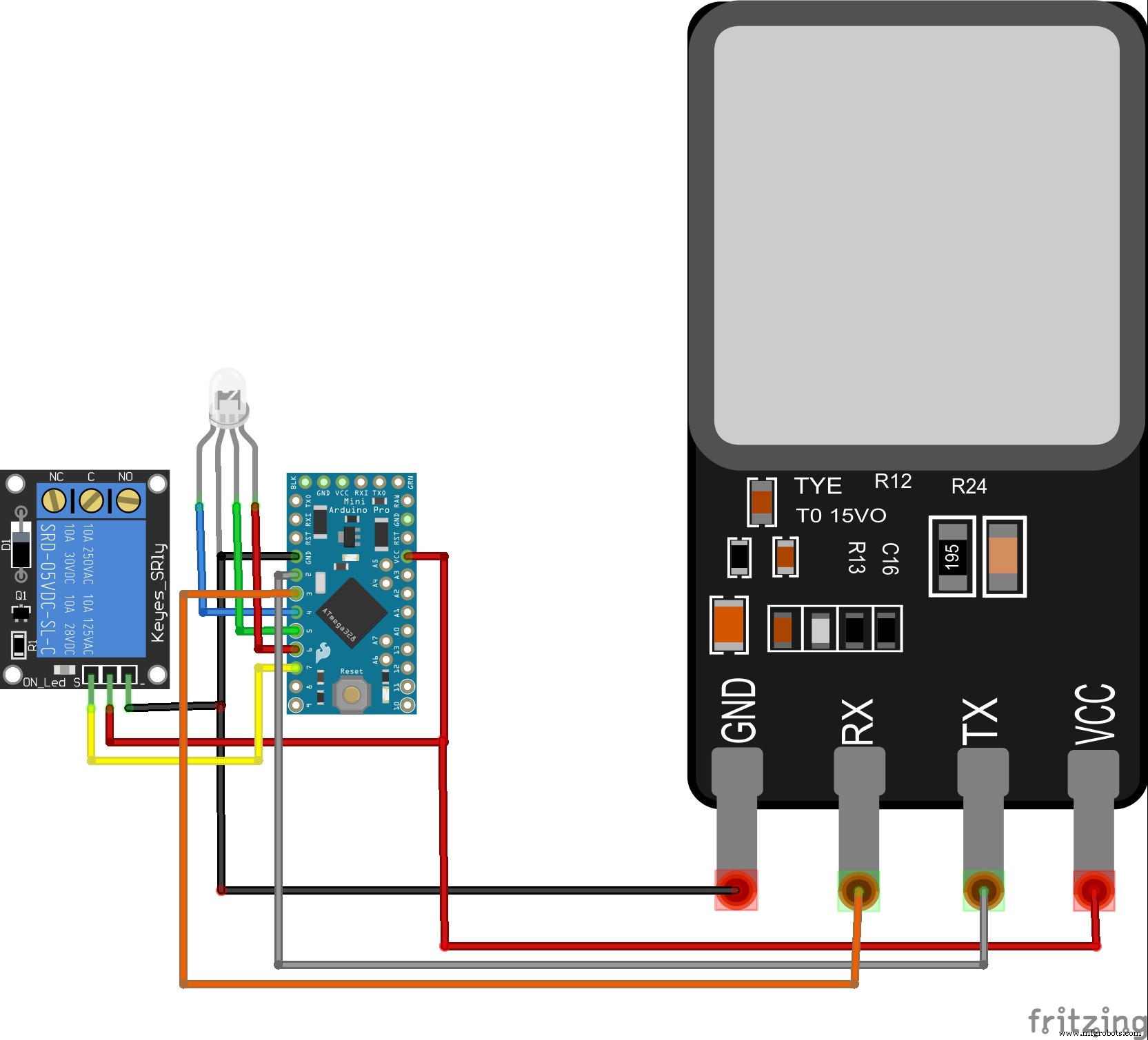

Schematics
