Advanced VHDL Proficiency Quiz – Part 3

Complete tutorials 12‑17 of the Basic VHDL Tutorial series and test your knowledge with this targeted quiz.

Which statement is true about the signed type?

They can represent higher values than unsigned types If the leftmost bit is '1' the value must be negative Overflow is a runtime error

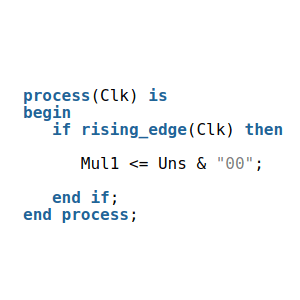

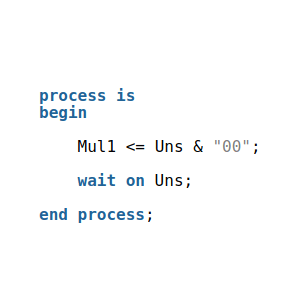

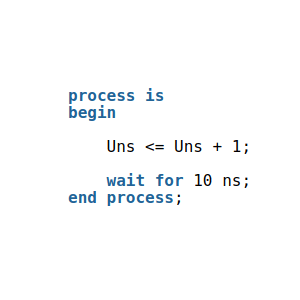

Which is equivalent to this concurrent process?

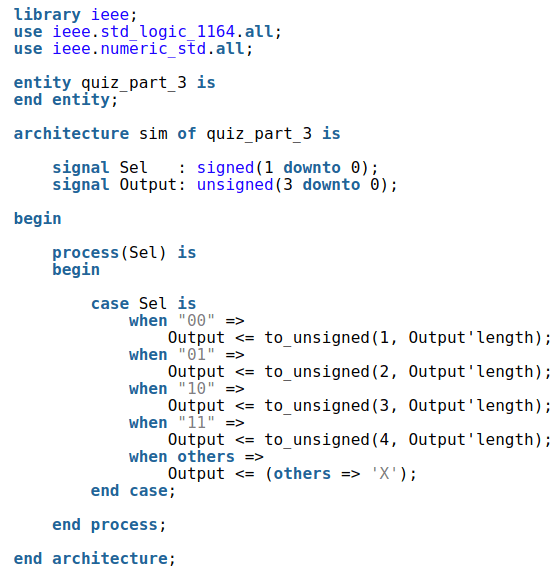

What value will Output have after running this code?

"0000" "0001" "UUUU" "XXXX"

Which is true about the port declaration?

The port is used only for verification purposes The port can contain both signals and variables The port declaration specifies a module's interface to the outside world

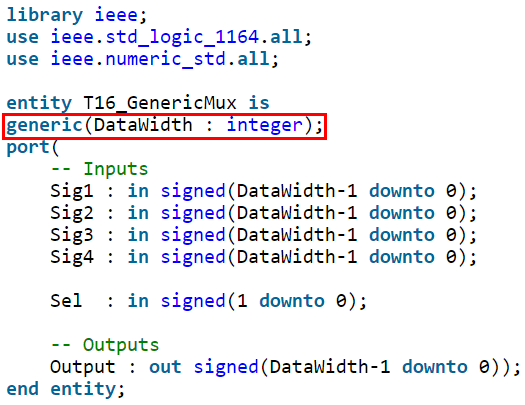

How will values that are passed through the generic map appear in the module?

Like variables Like constants Like optional signals with a default value

What does "setup time" for a flip‑flop mean?

The amount of time the data input must be held stable before the active clock edge arrives The amount of time before the output reacts to a change on the input The minimum amount of time the reset must be held active

Why do we normally not think about setup and hold time when designing in VHDL?

Because it's not important what happens when setup and hold time violations occur Because the underlying technology is so fast that setup and hold time is not a problem Because setup and hold time inside of the chip is handled automatically for us by the software
