VL53L0X Laser Distance Sensor: Pinout, Circuit, Specs & Practical Applications

In modern automation, sensors drive innovation across industries—from robotics to mobile phones. Among them, the VL53L0X laser‑based distance sensor stands out for its compact size, high accuracy, and ease of integration with microcontrollers.

What is the VL53L0X?

The VL53L0X is a LIDAR module that measures distance using the Time‑of‑Flight (ToF) principle. A vertical‑cavity surface‑emitting laser (VCSEL) emits a pulse that reflects off a target; the device calculates distance from the round‑trip time.

Key Features

• Laser wavelength: 980 nm VCSEL
• Single‑Photon Avalanche Diode (SPAD) array for precise photon timing
• Integrated level shifter and IR filter for reliable operation
• Operating voltage: 2.6 V – 3.5 V; current draw: ~10 mA
• Maximum range: 2 m (70 cm typical for high‑accuracy mode)
• Temperature range: –20 °C to +70 °C
• Package: 12‑pin optical LGA

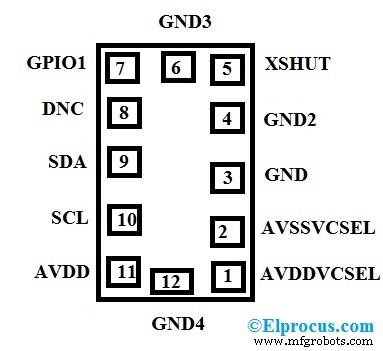

Pin Configuration

• Pin 1: AVDDVCSEL – VCSEL supply (2.6 V–5.5 V)
• Pin 2: AVSSVCSEL – VCSEL ground
• Pin 3: GND – IC ground
• Pin 4: GND2 – additional ground
• Pin 5: XSHUT – digital input (shutdown)
• Pin 6: GND3 – third ground
• Pin 7: GPIO1 – interrupt output
• Pin 8: DNC – not connected (leave floating)
• Pin 9: SDA – I2C data line
• Pin 10: SCL – I2C clock line
• Pin 11: AVDD – main supply voltage
• Pin 12: GND4 – final ground connection

Software Control via API

The manufacturer provides a cross‑platform API that manages the sensor’s key functions:

• Initialization and calibration
• Selection of ranging mode (single, continuous, timed)
• Start/stop of measurements
• Accuracy tuning and power management

These commands enable developers to tailor the VL53L0X to specific application requirements without low‑level hardware tuning.

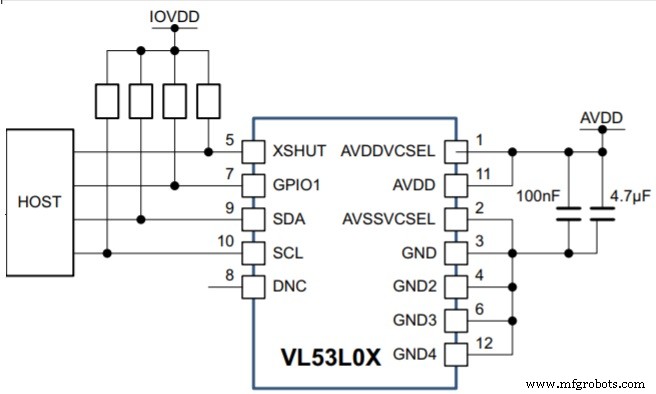

Circuit Diagram & External Components

When interfacing with a microcontroller, add the following components:

• Capacitors: Place 100 pF decoupling capacitors close to AVDDVCSEL and AVDD pins.
• Pull‑up resistors: 1.5 kΩ–2 kΩ on AVDD (for 2.8 V operation), 10 kΩ on XSHUT and GPIO1.
• Optional: 3.3 V LDO if powering the module from a higher voltage source.

Specifications Summary

• Voltage range: 2.6 V – 3.5 V
• Supply current: ~10 mA
• Communication: I2C interface
• Max distance: 2 m
• Linear regulator: 2.8 V onboard
• SPAD array & VCSEL laser: 980 nm
• Integrated level shifter & IR filter
• Ambient light immunity
• Operating temperature: –20 °C to +70 °C
• Package: Optical LGA12
• Control via API with three ranging modes

Common Applications

• Robotics – obstacle detection and avoidance
• Smartphones – proximity sensing and depth mapping (e.g., iPhone 7)
• Medical imaging – low‑light, high‑precision distance measurement
• Cameras – autofocus and motion capture for fast subjects
• Gesture recognition – one‑dimensional hand gesture detection
• Smart home devices – automatic faucets, soap dispensers, touchless taps
• Computing – user presence detection on laptops and PCs

Alternative Sensors

For projects requiring a different form factor or range, consider:

• VL6180 – a smaller ToF sensor from ST
• HC‑SR04 ultrasonic sensor – analog distance measurement

The VL53L0X’s invisible laser is safe for the human eye and is often called the world’s smallest active distance sensor. For detailed electrical data, consult the official datasheet.

Does your smartphone use the VL53L0X for camera autofocus? Explore its potential in your next project.
