Pulsic Unveils Real‑Time Analog Layout Preview for Cadence Virtuoso

Electronic design automation leader Pulsic has released a groundbreaking plug‑in that brings real‑time chip layout previews directly into Cadence Virtuoso’s schematic editor. The tool, called Animate Preview, enables analog designers to see accurate physical representations of their circuits on the fly, cutting the time from schematic to layout dramatically.

Unlike traditional EDA solutions that rely on separate layout passes and extensive licensing, Pulsic offers Animate Preview as a freemium product: the download and basic functionality are free, while advanced features—such as exporting to OpenAccess—are unlocked with a paid upgrade.

Key benefits include:

• Instant, detailed visualizations and area estimates as you edit your schematic.
• Automatic recognition of common analog topologies (current mirrors, differential pairs, etc.) and intelligent device placement that respects symmetry and critical‑path flow.
• Built‑in design‑rule checking and process‑rule compliance for early, accurate physical feedback.

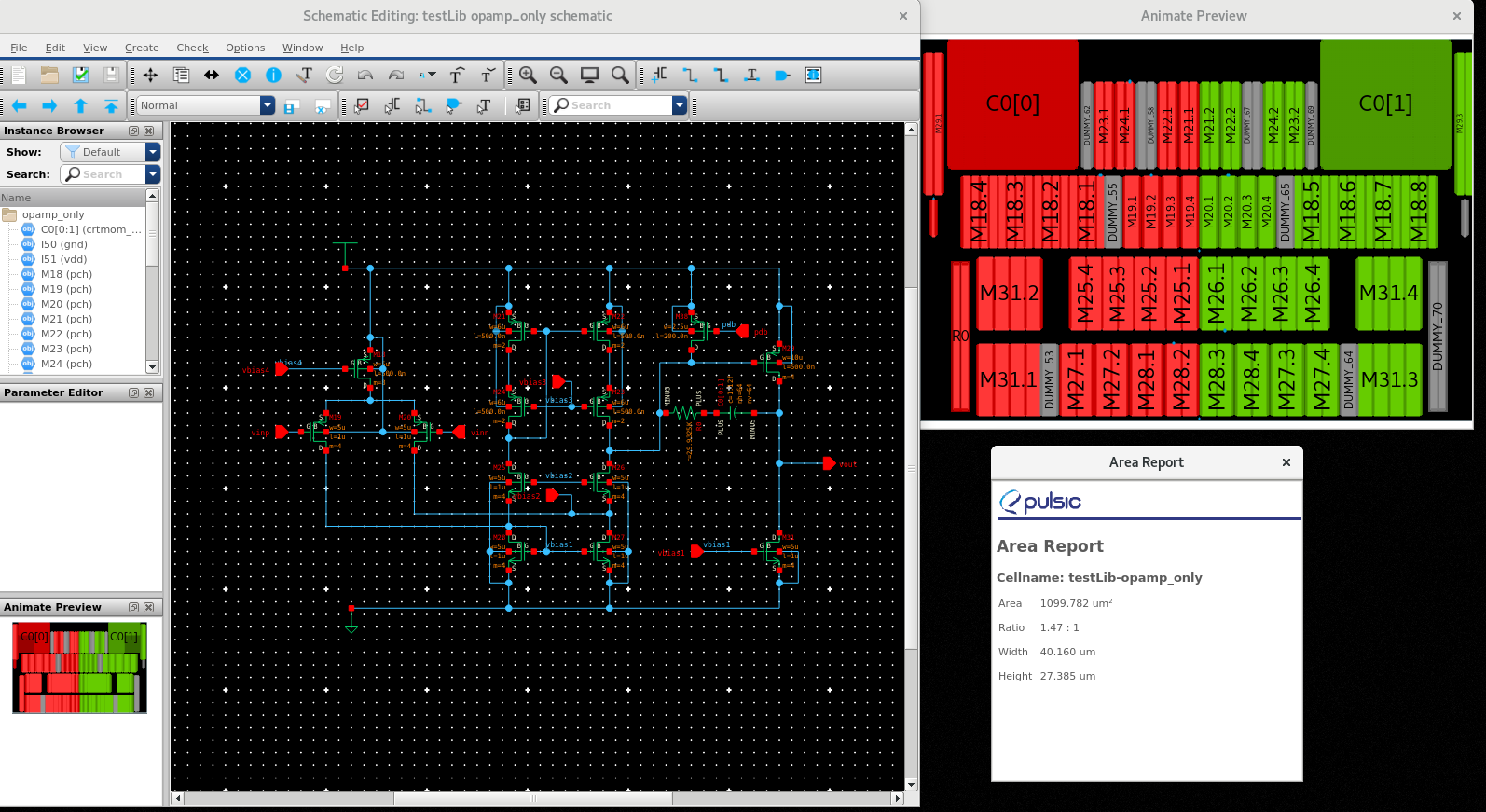

• Seamless integration: the preview window appears within the existing schematic editor, updating in real time with every change.
• Time savings: what would normally take hours or days to generate is available in seconds.

The free version delivers full schematic‑to‑preview functionality, while the paid Animate Preview Plus adds the ability to export the generated layout to OpenAccess, preserving p‑cell instances, well shapes, guard rings, poly heads, and connectivity.

With Animate Preview, analog engineers gain early, accurate physical insights that accelerate design iterations, reduce risk, and free up layout teams to focus on more complex challenges.
