Top Applications of Tungsten: From High‑Strength Alloys to Advanced Electronics

Top Applications of Tungsten

With the highest melting point among all metals and a density of 19.3 g/cm³—nearly that of gold—tungsten is prized for its exceptional hardness, near‑diamond tungsten carbide, and superior electrical conductivity. These attributes make it indispensable in industrial processes and everyday products. In this guide, we examine the three principal domains where tungsten shines.

Uses Of Tungsten

1. Tungsten in Advanced Alloys

High‑Strength Steel

Adding tungsten to steel dramatically boosts its strength, hardness, and wear resistance. Tungsten‑steel and tungsten‑cobalt magnetic steels are key components in cutting tools—drills, milling cutters, and high‑performance fasteners—thanks to their ability to withstand extreme stresses and temperatures.

Tungsten Carbide‑Based Cemented Carbide

W‑C (tungsten carbide) boasts a hardness rivaling diamond, making it the backbone of cemented carbides. These composites—typically sintered with cobalt, nickel, or molybdenum binders—are the largest consumers of tungsten. They fall into four main categories: W‑C‑Co, W‑C‑TiC‑Co, W‑C‑TiC‑Ta‑Co, and steel‑bonded variants, and they are indispensable for cutting tools, mining equipment, and aerospace components.

Heat‑Resistant & Wear‑Resistant Alloys

Because tungsten’s melting point tops 3,400 °C and its hardness remains high, alloys of tungsten with chromium, cobalt, and carbon are engineered for extreme‑temperature applications—aircraft engine valves, turbine wheels, and high‑speed machinery. Combinations with other refractory metals such as tantalum, niobium, molybdenum, and hafnium yield parts for rocket nozzles and propulsion systems that must endure extreme heat and erosion.

High‑Specific‑Gravity Alloys

W‑Ni‑Fe, W‑Ni‑Cu, W‑Co, W‑WC‑Cu, and W‑Ag are typical high‑specific‑gravity alloys. Their combination of density, strength, radiation absorption, thermal conductivity, low expansion, and electrical conductivity makes them ideal for aerospace, defense, deep‑well drilling, medical devices, heat sinks, and electrical contacts such as knife switches and circuit breakers.

2. Tungsten in Electronics

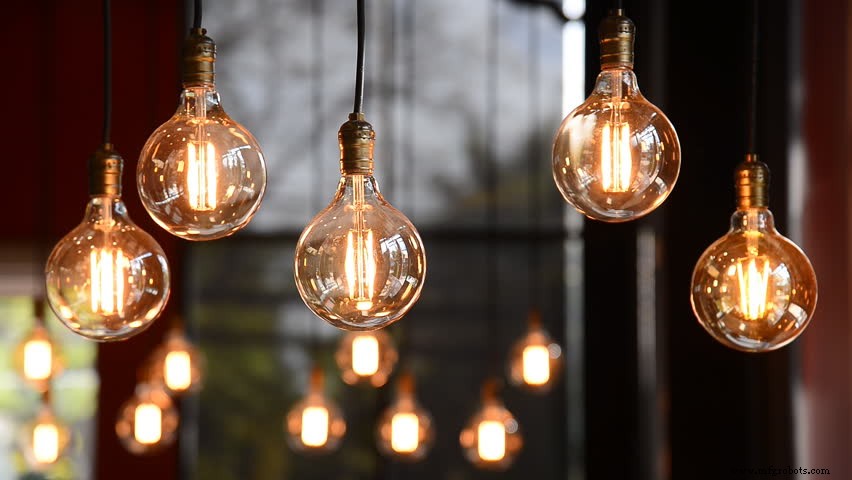

Tungsten’s high plasticity, low evaporation rate, and robust electron‑emission properties underpin its dominance in electronics. Tungsten wire, with a high luminous efficiency and long service life, is the material of choice for incandescent lamp filaments, iodine tungsten lamps, and specialized high‑intensity discharge lamps.

Tungsten wire also serves as the filament for cathodes in electron tubes, as grids in vacuum tubes, and as indirect heating cathode heaters in high‑power electronics. Its excellent weldability and resistance to oxidation make it a staple for TIG welding electrodes and other high‑temperature, precision applications.

3. Tungsten in Chemical Applications

Beyond metallurgy, tungsten compounds play pivotal roles in catalysis and pigment production. Tungsten disulfide is a high‑performance lubricant and catalyst in synthetic gasoline production. Bronze‑colored tungsten oxide serves as a durable pigment in paints and coatings. Calcium and magnesium tungsten salts are commonly used in phosphors for lighting and display technologies.

Conclusion

We hope this overview clarifies tungsten’s remarkable versatility across alloys, electronics, and chemistry. For deeper insights or to explore our high‑quality tungsten products at competitive prices, visit Advanced Refractory Metals.
