Tantalum Capacitor Characteristics & Applications

Tantalum capacitors, a subset of electrolytic capacitors, are integral to high‑performance systems in communications, aerospace, defense, submarine cabling, advanced electronics, household appliances, and television manufacturing.

Tantalum Capacitor

Tantalum capacitors use metallic tantalum (Ta) as the anode. Depending on anode construction, they are categorized as foil or sintered‑powder types. The sintered‑powder family is further divided into solid‑electrolyte and non‑solid‑electrolyte versions, with solid‑electrolyte models such as CA and CA42 dominating market demand.

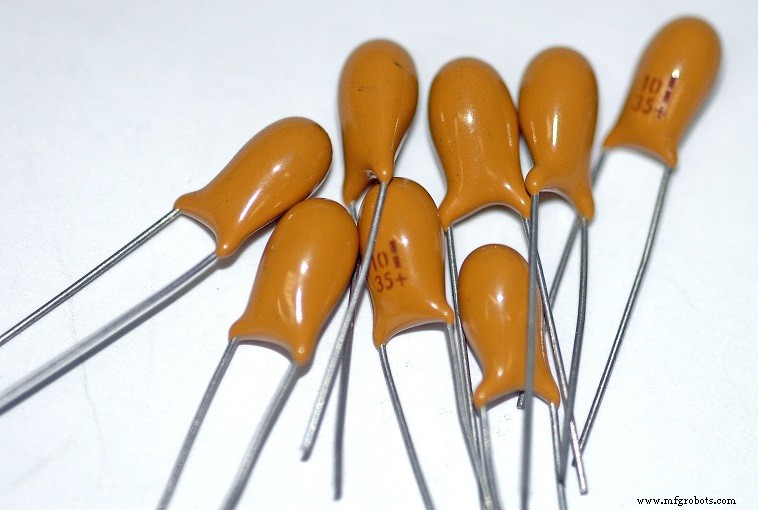

Tantalum Capacitor

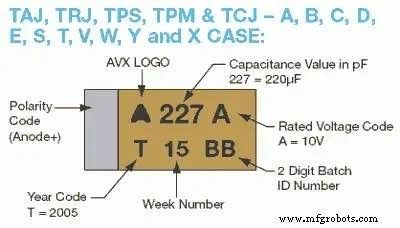

Tantalum electrolytic capacitors bear a CA label on their casings, but the circuit symbols remain identical to those of other electrolytics. The most common internal structure is illustrated above.

Key Advantages Over Aluminum Electrolytics

• Compact Size: Fine tantalum powder and a dielectric constant 17× that of aluminum oxide allow high capacitance per unit volume.
• Wide Temperature Envelope: Reliable operation from –50 °C to 100 °C, with superior performance compared to aluminum at the same extremes.
• Extended Service Life & Low Leakage: The Ta₂O₅ dielectric resists corrosion, delivering high insulation resistance and minimal leakage current over many years.
• Excellent High‑Frequency Impedance: Solid tantalum capacitors retain >80 % of their rated capacitance at 10 kHz, whereas aluminum electrolytics can lose up to 40 % at the same frequency.
• Robust Reliability: Ta₂O₅ withstands strong acids and bases, enabling the use of low‑acid electrolytes that further reduce losses and enhance temperature stability.

Conclusion

Tantalum capacitors combine compactness, thermal resilience, low leakage, and high reliability, making them indispensable for demanding applications. For deeper insights into tantalum and other refractory metals, visit Advanced Refractory Metals (ARM), a global leader headquartered in Lake Forest, California, supplying tungsten, molybdenum, tantalum, rhenium, titanium, and zirconium at competitive prices.
