Mastering the C Switch Statement

In this tutorial you’ll discover how to craft a clean, efficient switch statement in C, complete with a hands‑on calculator example.

The switch construct lets you execute one block of code out of many alternatives. While you could use an if…else if chain, switch delivers clearer syntax and faster readability, especially when the decision hinges on a single expression.

Switch‑Case Syntax

switch (expression)
{
    case constant1:
        // statements
        break;

    case constant2:
        // statements
        break;
    /* … */
    default:
        // default statements
}

How it works

• The expression is evaluated once and compared against each case label.
• When a match is found, the corresponding block runs until a break (or end of the switch) is reached.
• If no match occurs, the optional default block executes.

Key points

• Omitting break causes fall‑through: subsequent cases run as well.
• The default clause is optional but highly recommended for error handling.

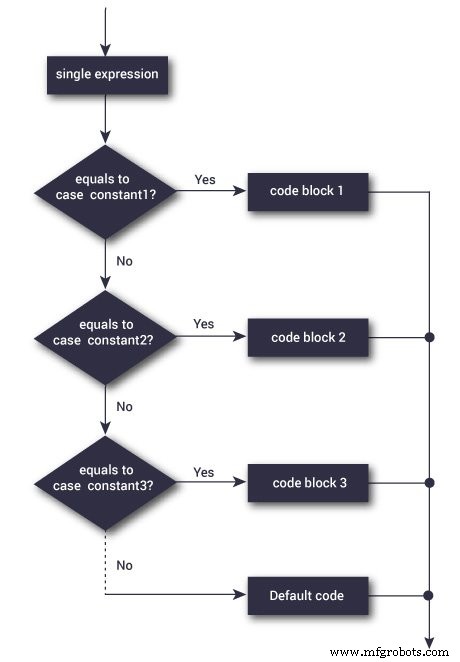

Switch Statement Flowchart

Example: Simple Calculator

#include <stdio.h>

int main(void) {
    char operation;
    double n1, n2;

    printf("Enter an operator (+, -, *, /): ");
    scanf("%c", &operation);
    printf("Enter two operands: ");
    scanf("%lf %lf", &n1, &n2);

    switch (operation) {
        case '+':
            printf("%.1lf + %.1lf = %.1lf\\n", n1, n2, n1 + n2);
            break;

        case '-':
            printf("%.1lf - %.1lf = %.1lf\\n", n1, n2, n1 - n2);
            break;

        case '*':
            printf("%.1lf * %.1lf = %.1lf\\n", n1, n2, n1 * n2);
            break;

        case '/':
            printf("%.1lf / %.1lf = %.1lf\\n", n1, n2, n1 / n2);
            break;

        default:
            printf("Error! operator is not correct\\n");
    }

    return 0;
}

Output example

Enter an operator (+, -, *, /): -
Enter two operands: 32.5 12.4
32.5 - 12.4 = 20.1

When the user inputs -, the program jumps to the corresponding case, performs the subtraction, and the break exits the switch. If the operator is invalid, the default clause alerts the user.
